| Swing Over Bed | 27.36" | 694.94 mm |
| Turning Diameter | 16.93" | 430.02 mm |
| Turning Length | 25.56" | 649.22 mm |
| Distance Between Centers | 225.59" | 5,730 mm |
| Chuck Size 1 | 12" | 304.8 mm |
| Spindle Nose 1 | A2 - 11 | A2 - 11 |
| Spindle Bore Diameter 1 | 4.41" | 112.01 mm |
| Bar Capacity 1 | 4" | 101.6 mm |
| Spindle Speeds 1 | 3,000 RPM | 3,000 RPM |
| Spindle Horsepower 1 | 45 hp | 33.6 kW |
| X1 - Axis Travel | 11.81" | 299.97 mm |
| X2 - Axis Travel | 7.68" | 195.07 mm |
| Z1 - Axis Travel | 29.13" | 739.9 mm |
| Z2 - Axis Travel | 27.56" | 700.02 mm |
| Y1 - Axis Travel | 5.51" | 139.95 mm |
| C - Axis Indexing 1 | 0.00 | 0.00 |
| Rapid Traverse Rate - X1 | 985 ipm | |
| Rapid Traverse Rate - X2 | 985 ipm | |
| Rapid Traverse Rate - Z1 | 1168 ipm | |
| Rapid Traverse Rate - Z2 | 1168 ipm | |
| Rapid Traverse Rate - Y1 | 492 ipm | |
| Turret Tool Positions 1 | 12 station | 12 station |
| Turret Rotary Tool Speeds 1 | 6,000 RPM | 6,000 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp | 5.6 kW |
| Turret Tool Positions 2 | 10 | 10 |
| Tailstock Quill Diameter | 4.72" | 119.89 mm |
| Tailstock Taper | 5.0 | 5.0 |
| Tailstock Quill Travel | 5.91" | 150.11 mm |
| Programmable Tailstock | 'Yes' | 'Yes' |
| Machine Weight | 21,800 lb | 9,888.3 kg |

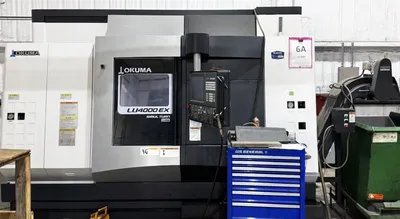

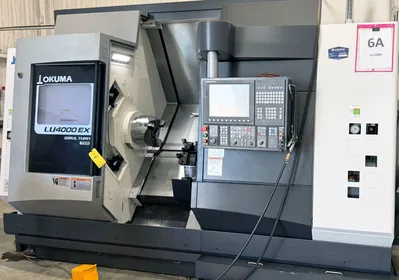

| Control | CNC (OKUMA OSP - P300L CNC COLOR CONTROL) | CNC (OKUMA OSP - P300L CNC COLOR CONTROL) |
| Weight | 0.00 | 0.00 |
0SP - P 300L CNC COLOR CONTROL
PROGRAM RESTART / INVERSE TIME FEED
MANUAL PULSE GENERATOR
CHIP CONVEYOR RIGHT DISCHARGE
AUTO POWER OFF

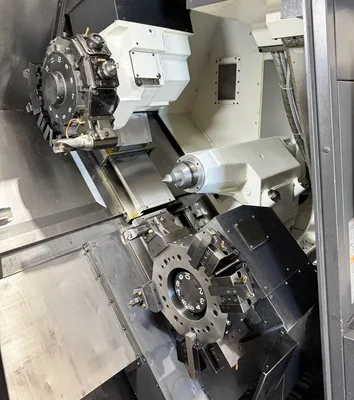

FULL COMPLIMENT OF STATIC AND ROTARY HOLDERS

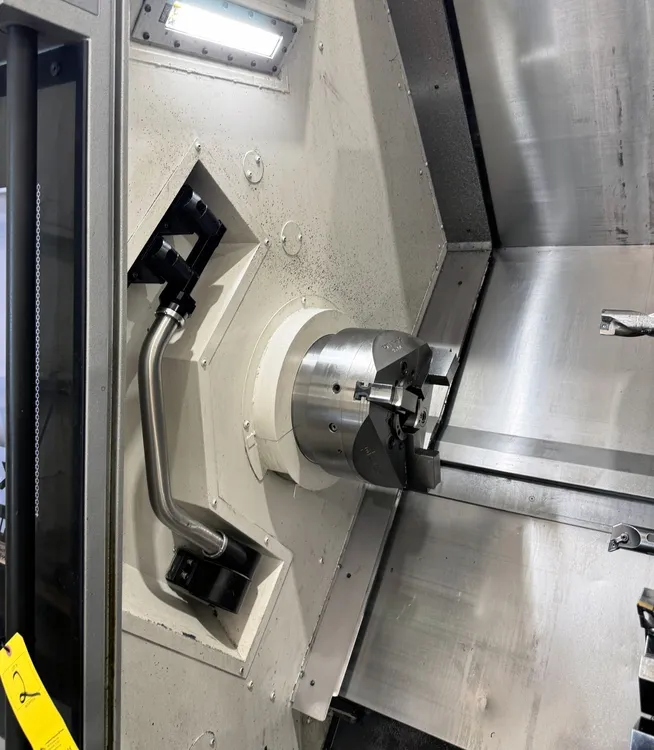

12" 3 JAW HYDRAULIC CHUCK WITH 4" BAR CAPACITY
0SP - P 300L CNC COLOR CONTROL
ADVANCED ONE TOUCEH ON BOARD PROGRAMMING AND ONE TOUCH -PST
BIG BORE SPINDLE OPTION A2-11, 4.41 " SPINDLE BORE 3000 RPM
TAILSTOCK AUTO TOW ALONG
TOUCH TOOL SETTER MANUAL
HI/LOW COOLANT PRESSURE SWITCHABLE
COOLANT LEVEL CHECK LOW
SPARE M CODES 4 SETS
NEGATIVE TOOL RADIUS COMPENSATION
Y-AXIS OFF CENTER TURNING FUNCTION
CHIP CONVEYOR
TEMPERATURE REGULATOR
HELICAL CUTTYING X, Y, Z AXIS
