| Swing Over Bed | 27.36" | 694.94 mm |
| Machining Length | 25.59" | 649.99 mm |
| Distance Between Centers | 25.59" | 649.99 mm |
| Chuck Size 1 | 15" | 381 mm |
| Spindle Nose 1 | A2 - 11 | A2 - 11 |
| Spindle Bar Capacity 1 | 4" | 101.6 mm |
| Turning Diameter, Shaft Diameter | 18.9" | 480.06 mm |
| Spindle Speeds 1 | 3,000 RPM | 3,000 RPM |
| Spindle Horsepower 1 | 43 hp | 32.1 kW |
| Spindle Bore Diameter 1 | 4.41" | 112.01 mm |
| X1 - Axis Travel | 11.8" | 299.72 mm |
| X2 - Axis Travel | 7.68" | 195.07 mm |
| Z1 - Axis Travel | 29.13" | 739.9 mm |
| Z2 - Axis Travel | 27.56" | 700.02 mm |
| Rapid Traverse Rate - X1 | 984 in/min. | 416.6 mm/sec. |
| Rapid Traverse Rate- X2 | 984 in/min. | 25 m/min. |
| Rapid Traverse Rate - Z1 | 1,181 in/min. | 500 mm/sec. |
| Rapid Traverse Rate - Z2 | 1,181 in/min. | 30 m/min. |

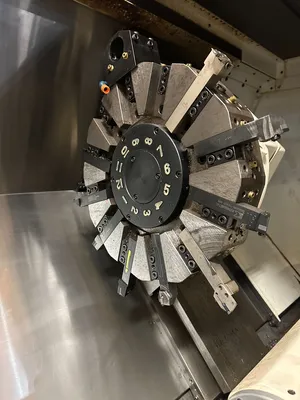

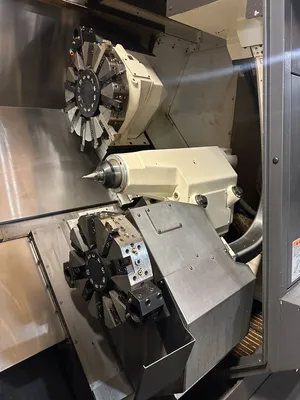

| Turret Configuration 1 | 12 | 12 |

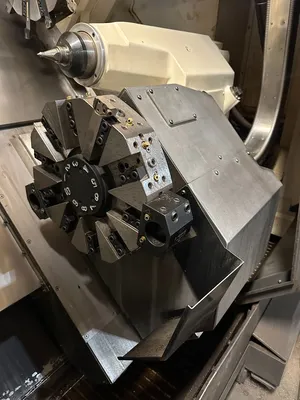

| Turret Configuration 2 | 10 station | 10 station |

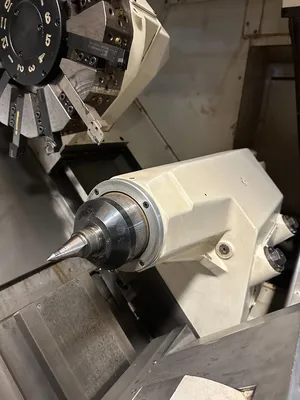

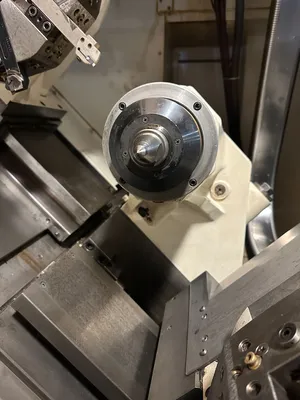

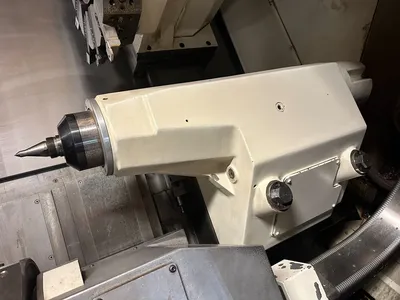

| Tailstock Quill Diameter | 4.72" | 119.89 mm |
| Tailstock Taper | MT # 5 | MT # 5 |
| Tailstock Quill Travel | 5.91" | 150.11 mm |
| Programmable Tailstock | YES | YES |
| # Axis | 4 | 4 |
| Bar Capacity | 4" | 101.6 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (OSP P300LA CNC COLOR CONTROL) | CNC (OSP P300LA CNC COLOR CONTROL) |
| Weight | 10,000 | 10,000 |

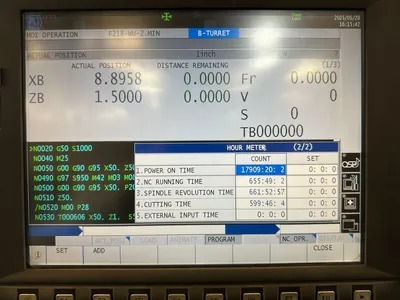

0SP - P 300L CNC COLOR CONTROL
PROGRAM RESTART / INVERSE TIME FEED
MANUAL PULSE GENERATOR
CHIP CONVEYOR RIGHT DISCHARGE
AUTO POWER OFF

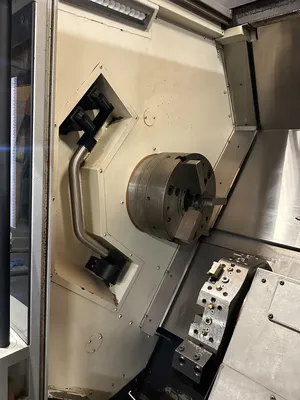

15" 3 JAW HYDRAULIC CHUCK WITH 4" BAR CAPACITY
0SP - P 300L CNC COLOR CONTROL
BIG BORE SPINDLE OPTION A2-11, 4.41 " SPINDLE BORE 3000 RPM
TAILSTOCK AUTO TOW ALONG
TOUCH TOOL SETTER MANUAL
HI/LOW COOLANT PRESSURE SWITCHABLE
CHIP CONVEYOR
