| Number Of Tables / Pallets | 1 | 1 |
| Table-L | 54" | 1,371.6 mm |
| Table-W | 24" | 609.6 mm |
| Weight on Table | 1,750 lb | 793.8 kg |
| Spindle Nose to Table Top | 4.2 ~ 29.2 | 4.2 ~ 29.2 |
| X - Axis Travel | 40" | 1,016 mm |
| Y - Axis Travel | 26" | 660.4 mm |
| Z - Axis Travel | 25" | 635 mm |
| Rapid Traverse Rate - X | 1,400 in/min. | 35.6 m/min. |
| Rapid Traverse Rate - Y | 1,400 in/min. | 35.6 m/min. |
| Rapid Traverse Rate - Z | 1,400 in/min. | 35.6 m/min. |
| Cutting Feed Rate | 833 in/min. | 21.2 m/min. |
| Spindle Speed | 12,000 RPM | 12,000 RPM |
| Spindle Taper | 40 | 40 |
| Main Motor | 30 hp | 22.4 kW |
| Automatic Tool Changer | 301 | 301 |
| Tool Diameter | 2.5", 5" | 2.5", 5" |
| Tool Length | 11" | 279.4 mm |
| Tool Weight | 12 lb | 5.4 kg |
| Machine Weight | 15,000 lb | 6,803.9 kg |

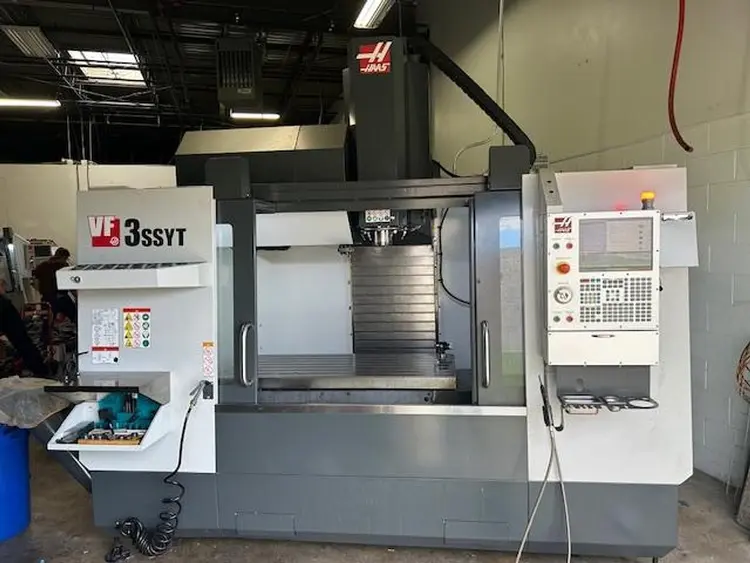

| Control | CNC (HAAS CNC CONTROL) | CNC (HAAS CNC CONTROL) |
| Weight | 0.00 | 0.00 |
Number Of Tables / Pallets: 1

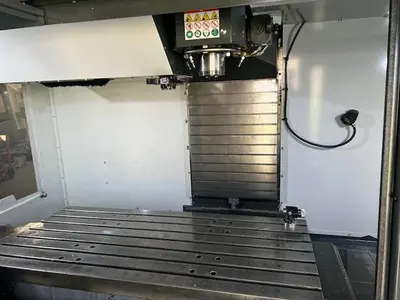

Table Size : 54" x 24"
Weight On Table: 1750 LBS.
Integrated NC Rotary Table Size: 0
Spindle Nose To Table: 4.2" - 29.2"
X - Axis Travel: 40"
Y - Axis Travel: 26"
Z - Axis Travel: 25"
A - Axis Travel: 0
B - Axis Travel: 0
C - Axis Travel Table Indexing: 0
Rapid Traverse X, Y, Z: 1400, 1400, 1400 IPM
Cutting Feed Rate: 833 IPM
Spindle Speed: 12000 RPM
Spindle Taper: 40 CT
Number Of Gear Ranges: 0
Main Motor: 30 HP
Vertical Turning Table Size, Number Of Tables: 0
Table Spindle Speed Vertical Turning: 0
Table Spindle Horse Power Vertical Turning: 0

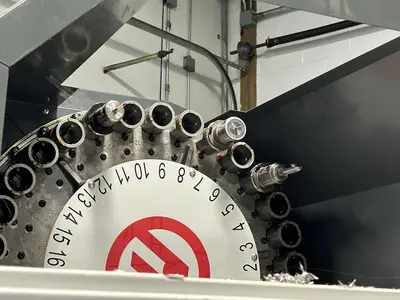

Automatic Tool Changer: 30 + 1
Tool Diameter: 2.5" / 5"
Tool Length: 11"
Tool Weight: 12 LBS.
Machine Weight: 15000 LBS.
HAAS CNC CONTROL
RENISHAW WIPS-R WIRELESS INTUITIVE PROBING SYSTEM

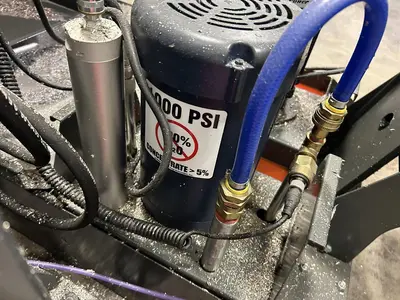

1000 PSI COOLAT THRU SPINDLE
CHIP TRAY FILTER KIT
COMPENSATION TABLES
MAX. MEMORY 1GB
MEDIA DISPLAY
VPS EDITING
LIFT UP CHIP CONVEYOR
