| Swing Over Bed | 26.3" | 668.02 mm |
| Turning Diameter | 26.3" | 668.02 mm |
| Turning Length | 122.5" | 3,111.5 mm |
| Distance Between Centers | 126.3" | 3,208 mm |
| Chuck Size 1 | 15" | 381 mm |
| Spindle Nose 1 | A2 - 11 | A2 - 11 |
| Spindle Bore Diameter 1 | 4.6" | 116.84 mm |
| Bar Capacity 1 | 4" | 101.6 mm |
| Spindle Speeds 1 | 2,500 RPM | 2,500 RPM |
| Spindle Horsepower 1 | 40 hp | 29.8 kW |

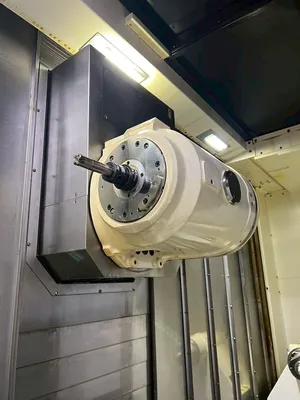

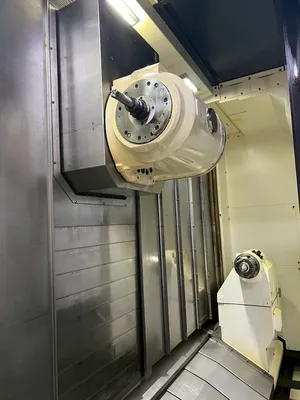

| B - Axis Head Indexing | -30.21 | -30.21 |
| B - Axis Milling Spindle Taper | 40 BT | 40 BT |
| B - Axis Milling Spindle Speed | 12,000 RPM | 12,000 RPM |
| B - Axis Milling Spindle Horse Power | 30 hp | 22.4 kW |

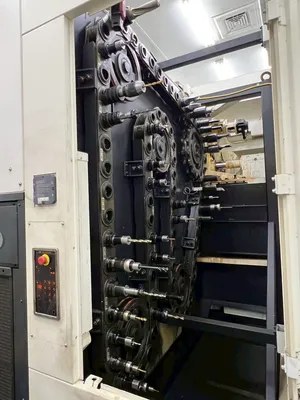

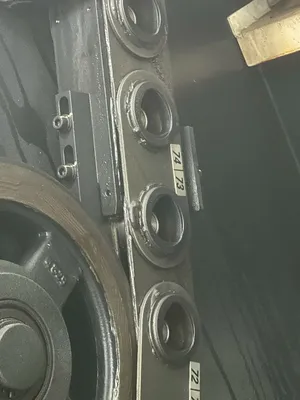

| ATC For Milling Spindle | 80 | 80 |
| Tool Length | 15.7" | 398.78 mm |
| Tool Weight | 26.4 lb | 12 kg |
| X1 - Axis Travel | 33.2" | 843.28 mm |
| Z1 - Axis Travel | 122.5" | 3,111.5 mm |
| Y1 - Axis Travel | 16.5" | 419.1 mm |
| C - Axis Indexing 1 | 0.001 | 0.001 |
| Rapid Traverse Rate - X1 | 1970 ipm | |
| Rapid Traverse Rate - Z1 | 1576 ipm | |
| Rapid Traverse Rate - Y1 | 1970 ipm | |

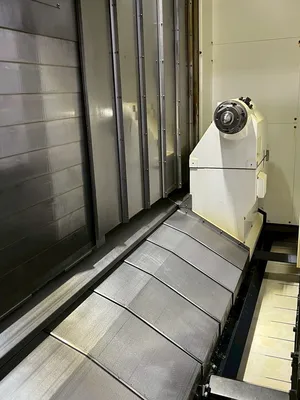

| Tailstock Taper | 5.0 | 5.0 |
| Programmable Tailstock | 'Yes' | 'Yes' |
| Tailstock Travel | 119.4 | 119.4 |
| Machine Weight | 48,400 lb | 21,953.9 kg |

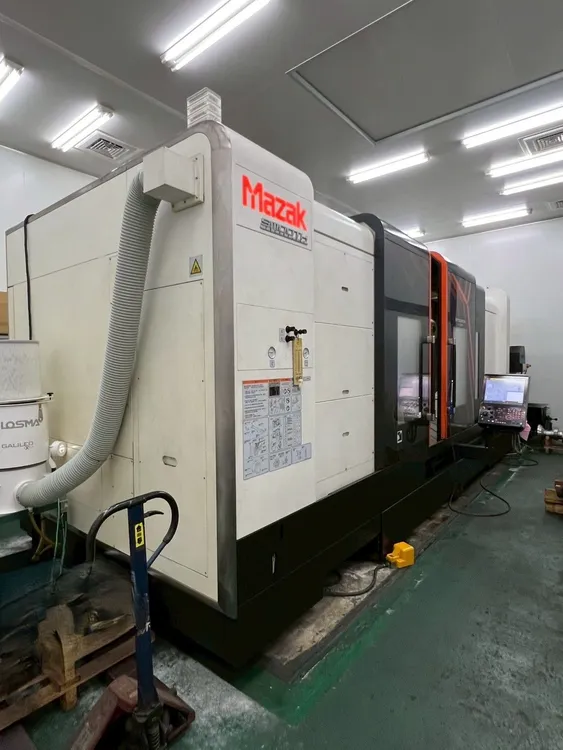

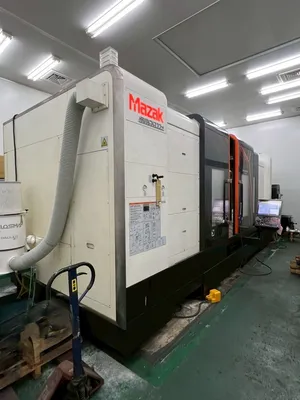

| Control | CNC (MAZAK MAZATROL SMOOTH G CNC COLOR CONTROL) | CNC (MAZAK MAZATROL SMOOTH G CNC COLOR CONTROL) |

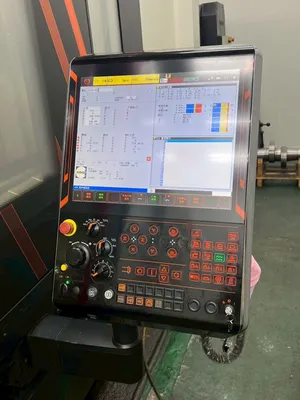

MAZATROL SMOOTH G CNC COLOR CONVERSATIONAL CONTROL

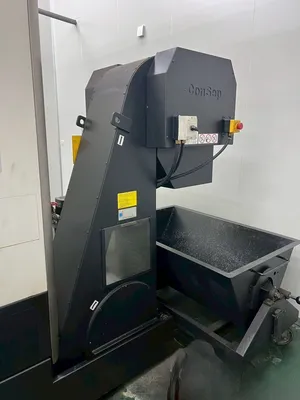

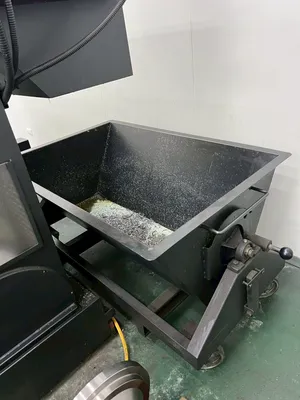

CHIP CONVEYOR
RENISHAW PROBING
MAZAK HIGH PRESSURE COOLANT THRU SPINDLE

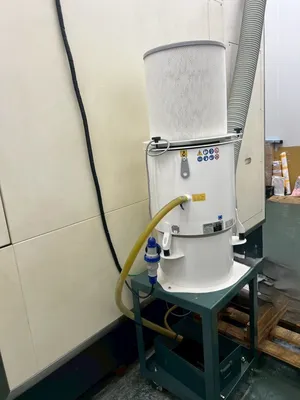

MIST COLLECTOR
AUTO TOOL MEASUREMENT
SPINDLE CHILLER
COOLANT THRU MILL HEAD
Y AXIS CONTROL
.0001 DEGREE B-AXIS INDEXING
B - AXIS 0.0001 CONTOURING
EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT DATA I/O
HOB, SHAPE COMP, THREAD INVERSE TIME, 3-D COORD ROTATION, AUTO ATLM
COMPARISON STOP, G54.1, SYNC TAP, FLASH TOOL, I/M CONV., CYLINDER
ROTARY AXIS SUB MICRON, MACRO 600 SETS,
SIMULTANEOUS 5 AXIS
NAVIGATION, EIA HELICAL TAP, MAZATROL HELICAL, MAZATROL PLANET TAP
TOOL CENTER POINT CONTROL

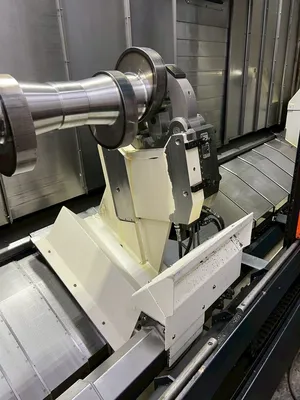

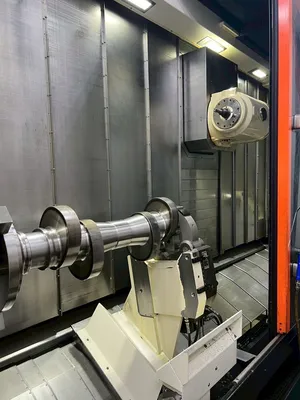

PROGRAMMABLE HYDRAULIC STEADY REST SMW K4-ZSW 2.0" - 11" CAPACITY
This equipment is currently unavailable. Similar equipment available now is shown below.
