| Swing Over Bed | 27.4" | 695.96 mm |
| Machining Length | 21" | 533.4 mm |
| Distance Between Centers | 23.75" | 603.25 mm |
| Chuck Size 1 | 8" | 203.2 mm |
| Spindle Nose 1 | A2-6 | A2-6 |
| Spindle Bar Capacity 1 | 2" | 50.8 mm |
| Turning Diameter, Shaft Diameter | 13.5" | 342.9 mm |
| Spindle Speeds 1 | 4,500 RPM | 4,500 RPM |
| Spindle Horsepower 1 | 20 hp | 14.9 kW |
| Spindle Bore Diameter 1 | 2.4" | 60.96 mm |
| X1 - Axis Travel | 8.5" | 215.9 mm |
| Z1 - Axis Travel | 23.7" | 601.98 mm |
| Rapid Traverse Rate - X1 | 1,181 in/min. | 500 mm/sec. |
| Rapid Traverse Rate - Z1 | 1,417 in/min. | 599.9 mm/sec. |
| Turret Configuration 1 | 12 | 12 |
| Tailstock Taper | MT #4 | MT #4 |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 21" | 533.4 mm |

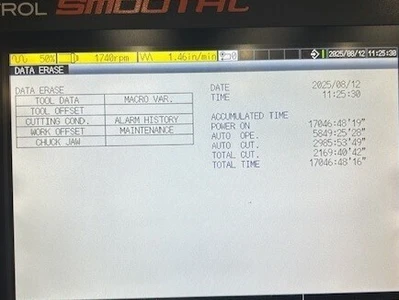

| Control | CNC (MAZATROL SMOOTH C CNC CONTROL UNIT) | CNC (MAZATROL SMOOTH C CNC CONTROL UNIT) |
| Weight | 11,000 LBS. | 11,000 LBS. |

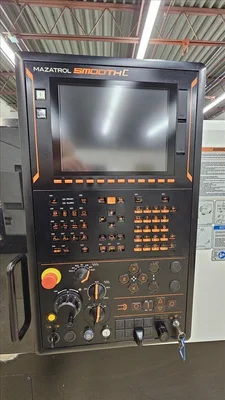

MAZAK SMOOTH C CNC COLOR CONTROL

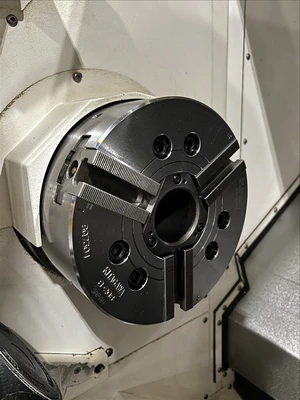

8" 3 JAW HYDRAULIC CHUCK THRU HOLE 2.4" BORE 2.0" BAR CAPACITY
TOOL PRESETTER
AUTO PARTS CATCHER
HIGH PRESSURE COOLANT SYSTEM
