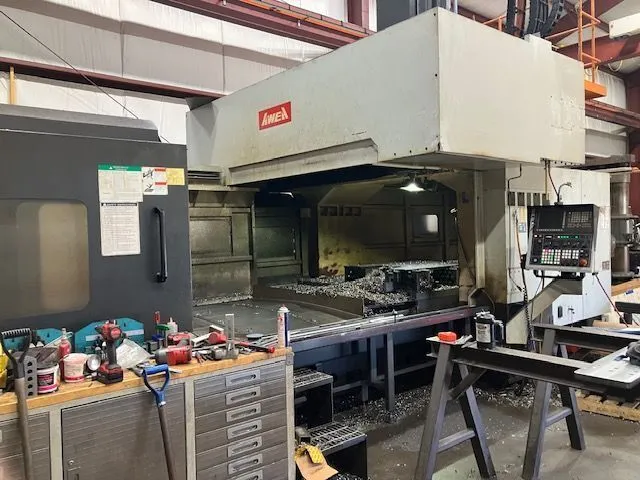

AWEA LP 3021Z CNC BRIDGE TYPE VERTICAL MACHINING CENTER
Unavailable

AWEA LP 3021Z CNC BRIDGE TYPE VERTICAL MACHINING CENTER

Vertical Machining Centers
Manufacturer:
AWEA
Model:
LP 3021Z
Year:
2013
Stock #:
10032

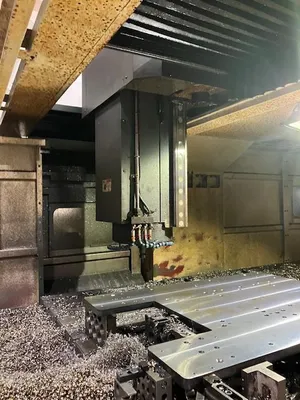

AWEA LP 3021Z CNC Bridge Type Vertical Machining Center, 2013 model, equipped with Renishaw Probe and through spindle coolant. Ideal for enhancing machining precision and efficiency. Manufactured by AWEA, a trusted name in industry standards.
Number Of Tables / Pallets11
Table-L118.89"3,019.8 mm
Table-W79.1"2,009.1 mm
Weight on Table10,000 lb4,535.9 kg
Spindle Nose to Table Top9.4" ~ 39.3"9.4" ~ 39.3"
X - Axis Travel118.11"3,000 mm
Y - Axis Travel82.67"2,099.8 mm
Z - Axis Travel29.9"759.46 mm
Rapid Traverse Rate - X787 in/min.20 m/min.
Rapid Traverse Rate - Y590 in/min.15 m/min.
Rapid Traverse Rate - Z590 in/min.15 m/min.
Cutting Feed Rate393 in/min.10 m/min.
Spindle Speed8,000 RPM8,000 RPM
Spindle Taper5050
Number of Gear Ranges22
Main Motor35 hp26.1 kW
Tool Diameter5", 8.4"5", 8.4"
Tool Length13.7"347.98 mm
Tool Weight44 lb20 kg
Machine Weight72,600 lb32,930.8 kg
Automatic Tool Changer6060
ControlCNC (Fanuc 31iMB CNC Color Control)CNC (Fanuc 31iMB CNC Color Control)

Distance Between Columns: 90.55"
Spindle Nose To Table Top: 7.87'' - 47.2''
Table Load Capacity: 22046 Lbs.
X - Axis Travel: 118.11"
Y - Axis Travel: 82.67"
Z - Axis Travel: 39.4"
Spindle Nose : BT #50
Spindle Speed: 5000 RPM
Main Motor: 40 HP

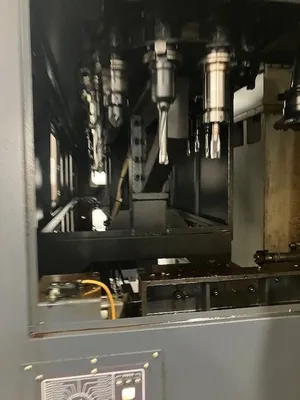

Tool Magazine: 32 ATC
Machine Weight: 103000
Machine Weight: 103000.0000

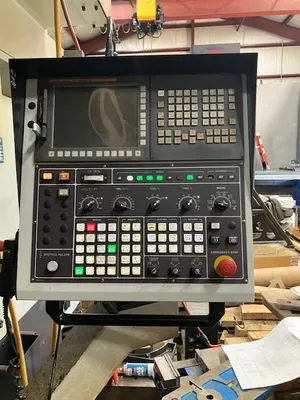

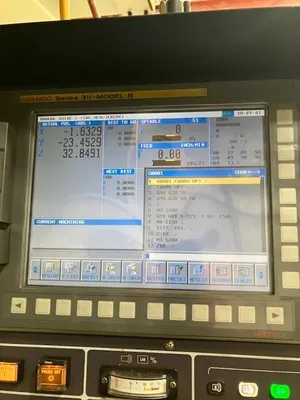

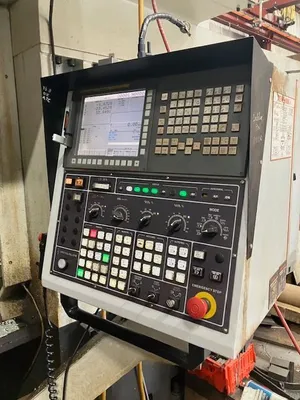

FANUC 31I-MB CNC COLOR CONTROL
2 SPEED GEAR BOX
RIGID TAPPING

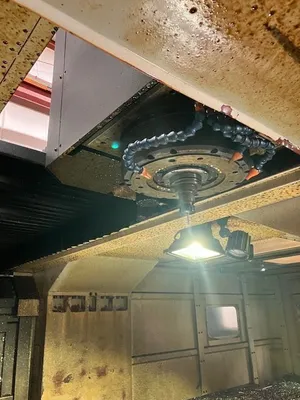

COOLANT THRU SPINDLE
SPINDLE CHILLER
RENISHAW PROBING
TWIN SCREW AUGERS
CHIP CONVEYOR

This equipment is currently unavailable. Similar equipment available now is shown below.
