2012 YCM DCV 4025 BRIDGE TYPE MACHINING CENTER

2012 YCM DCV 4025 BRIDGE TYPE MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
VMC Gantry / Bridge Type CNC
Manufacturer:
YCM
Model:
DCV 4025B
Year:
2012
Stock #:
10034
Status:
For Sale

Description

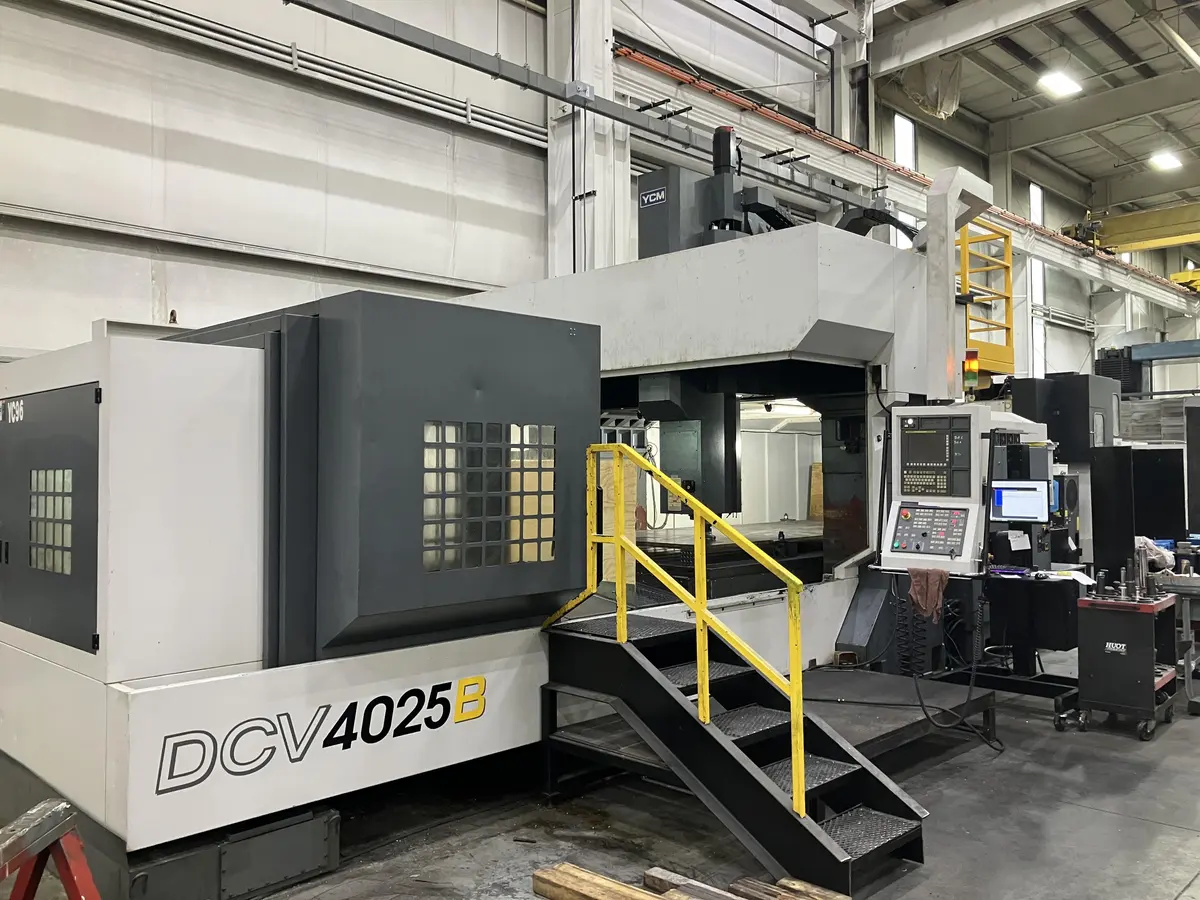

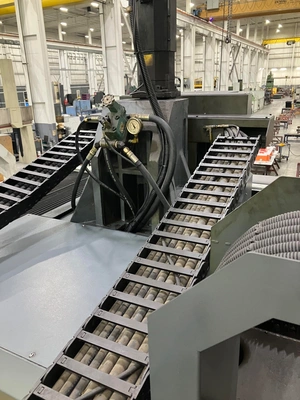

For sale: 2012 YCM DCV 4025B VMC Gantry CNC, equipped with FANUC 31i control. Features a large table size of 158" x 94.5", X/Y/Z travel of 160"/98"/40", 120-tool changer, 30 hp main motor, 4,500 RPM spindle, and high-speed machining capability.

Number Of Tables / Pallets11

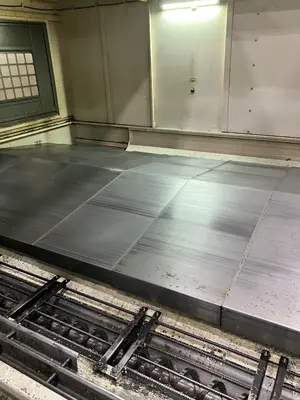

Table Size - L158"4,013.2 mm
Table Size - W94.5"2,400.3 mm
Weight on Table44,092 lb19,999.8 kg
Distance Between Columns107.9"2,740.7 mm
Spindle Nose to Table Top7.87 - 47.877.87 - 47.87
X - Axis Travel160"4,064 mm
Y - Axis Travel98"2,489.2 mm
Z - Axis Travel40"1,016 mm
Rapid Traverse Rate - X472 in/min.12 m/min.
Rapid Traverse Rate - Y591 ipm
Rapid Traverse Rate - Z591 ipm
Cutting Feedrate394 in/min.10 m/min.
Spindle Speed4,500 RPM4,500 RPM
Spindle Taper#50 CT#50 CT
Number Of Gear Ranges22
Main Motor30 hp22.4 kW

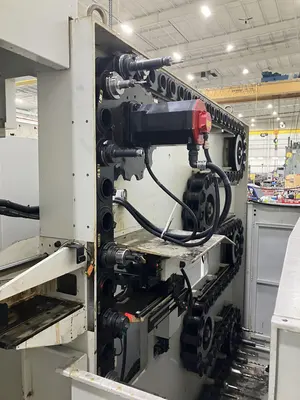

Automatic Tool Changer120120
Tool Diameter4.924.92
Tool Length13.78"350.01 mm
Tool Weight44.1 lb20 kg
Machine Weight101,412 lb45,999.8 kg
ControlCNC (FANUC 31I B CNC COLOR CONVERSATIONAL CONTROL)CNC (FANUC 31I B CNC COLOR CONVERSATIONAL CONTROL)
Dimensions33' x 17.34' x 14'33' x 17.34' x 14'

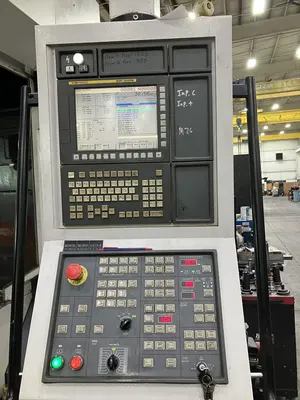

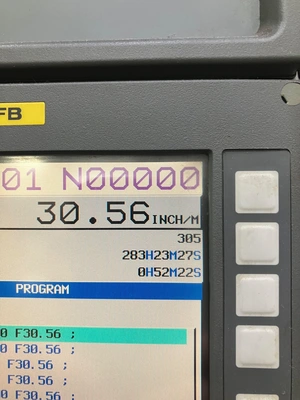

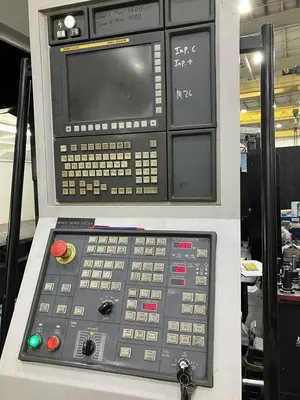

FANUC 31i CNC COLOR CONTROL

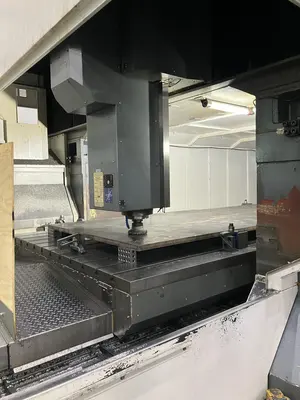

GEAR HEAD SPINDLE
COOLANT THRU SPINDLE

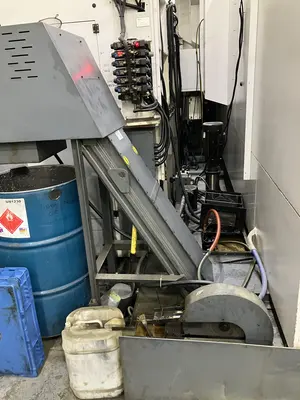

CHIP CONVEYOR
ETHERNET
HIGH SPEED MACHINING
DATA SERVER
SPINDLE THERMAL COMPENSATION
3 ROLLER TYPE GUIDE WAY FOR Y AXIS
HARDENED AND GROUND BOX WAY Z AXIS
TOOL SELECTION RANDOM METHOD

BUYER RESPONSIBLE FOR PREP
SELLER WILL LOAD ON TRUCK
