| Swing Over Bed | 22.8" | 579.12 mm |
| Turning Diameter | 14" | 355.6 mm |
| Turning Length | 27.7" | 703.58 mm |

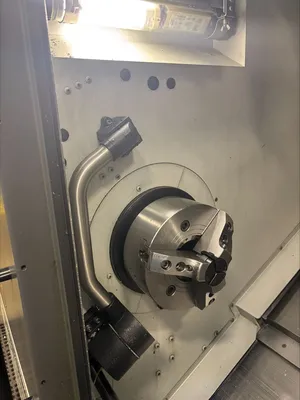

| Chuck Size 1 | 10" | 254 mm |
| Spindle Nose 1 | A2 - 8 | A2 - 8 |
| Spindle Bore Diameter 1 | 3.6" | 91.44 mm |
| Bar Capacity 1 | 3.1" | 78.74 mm |
| Spindle Speeds 1 | 4,000 RPM | 4,000 RPM |
| Spindle Horsepower 1 | 24.7 hp | 18.4 kW |
| Chuck Size 2 | 6" | 152.4 mm |
| Spindle Nose 2 | A2 - 5 | A2 - 5 |
| Spindle Bore Diameter 2 | 1.7" | 43.18 mm |
| Spindle Speeds 2 | 6,000 RPM | 6,000 RPM |
| Spindle Horsepower 2 | 15 hp | 11.2 kW |
| X1 - Axis Travel | 10.2" | 259.08 mm |
| Z1 - Axis Travel | 31.3" | 795.02 mm |
| Y1 - Axis Travel | 3.9" | 99.06 mm |
| C - Axis Indexing 1 | 0.00 | 0.00 |
| C - Axis Indexing 2 | 0.00 | 0.00 |
| W - Axis Travel Sub Spindle | 28.9" | 734.06 mm |
| Rapid Traverse Rate - X1 | 1181 ipm | |
| Rapid Traverse Rate - Z1 | 1181 ipm | |
| Rapid Traverse Rate - Y1 | 393 ipm | |
| Turret Tool Positions 1 | 12 station | 12 station |
| Turret Rotary Tool Speeds 1 | 6,000 RPM | 6,000 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp | 5.6 kW |
| Control | CNC (MORI MSX 805 III CNC COLOR CONTROL) | CNC (MORI MSX 805 III CNC COLOR CONTROL) |
| Weight | 13,640 | 13,640 |

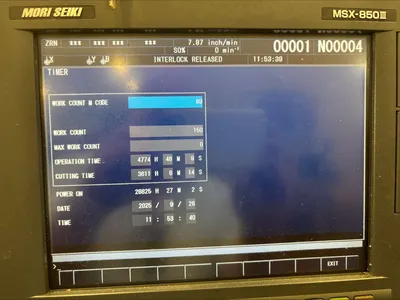

MSX850III CNC CONTROL
ALL STANDARD STATIC HOLDERS AND WEDGE BLOCKS
ALL AVAILABLE MANUALS
IN MACHINE TOOL SETTER
AUTO PARTS CATCHER
MAPPS II CONVERSATIONAL PROGRAMMING
THREAD CUTTING/SYNCHRONOUS FEED
MULTI START THREAD CUTTING
RETRACT DURING THREAD CUTTING
VARIABLE LEAD THREADING
LINEAR, CIRCULAR AND HELICAL INTERPOLATION
BUILT IN MILLING MOTOR ON TURRET (BMT)
