| Pallet Size - L | 24.8" | 629.92 mm |
| Pallet Size - W | 24.8" | 629.92 mm |
| Number of Pallets | 6 | 6 |
| Pallet Weight Capacity | 2,640 lb | 1,197.5 kg |
| Pallet Surface to Spindle Center | 1.96'' - 37.4'' | 1.96'' - 37.4'' |
| Pallet Center To Spindle Gage Line | 2.7'' - 42.13'' | 2.7'' - 42.13'' |
| Workpiece Dimensions | 39.37'' x 39.37' | 39.37'' x 39.37' |
| X - AxisTravel | 39.3" | 998.22 mm |
| Y - Axis Travel | 35.4" | 899.16 mm |
| Z - Axis Travel | 39.3" | 998.22 mm |
| B - Axis Travel | .001 | .001 |
| Rapid Traverse Rate - X | 2,362 in/min. | 60 m/min. |
| Rapid Traverse Rate - Y | 2362 ipm | |
| Rapid Traverse Rate - Z | 2362 ipm | |

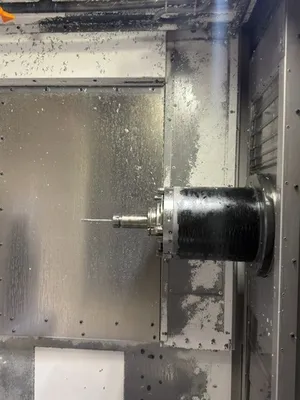

| Spindle Speed | 12,000 RPM | 12,000 RPM |
| Spindle Taper | HSK A100 | HSK A100 |
| Number of Ranges | 2 | 2 |
| Main Motor | 40 hp | 29.8 kW |

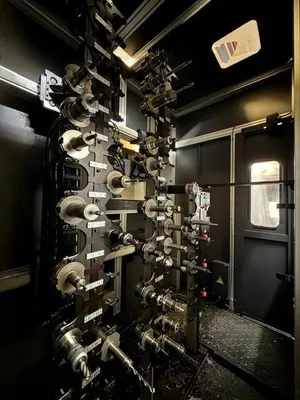

| Automatic Tool Changer | 171 | 171 |
| Tool Diameter | 5.3", 9.4" | 5.3", 9.4" |
| Tool Length | 17.7" | 449.58 mm |
| Tool Weight | 55 lb | 24.9 kg |
| Machine Weight | 57,200 lb | 25,945.5 kg |
| Control | CNC (OKUMA OSP P300MA CNC COLOR CONTROL) | CNC (OKUMA OSP P300MA CNC COLOR CONTROL) |
| Weight | 0.00 | 0.00 |
OSP P300MA CNC COLOR CONTROL

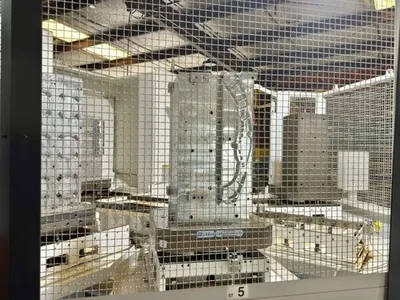

6 AUT0 PALLET CHANGING SYSTEM
ANIMATION, PROGRAM HELP, HI-G, 320 METERS, CYCLE TIME REDUCTION
HELICAL INTERP., DURECT POSITIONING,SKIP FUNCTION, CHANGE WK COORD.
PLAY BACK IMAP, IMAP, HELP, AREA MACHINING
4 AXIS CONTROL, ANGLE 1/10,000 INDEX TABLE B, ADD AXIS NAME B, SSU-R
4 AXIS B FIX, TOUCH SENSOR MOVE
THERMAL COMPENSATION
COOLANT THRU THE SPINDLE, SPINDLE AIR BLOW

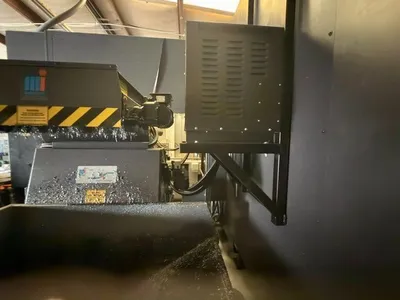

FILTRATION UNIT, CHIP CONVEYOR
COOLANT CHILLER UNIT
SYNC. TAPPING
TOUCH SENS. MOVE, TOOL LIFE MANANGEMENT, TOOL DATA 200,
ALL AVAILABLE MANUALS
CHIP CONVEYOR
HIGH PRESSURE COOLANT THRU SPINDLE 1000 PSI
TOOL DATA 200
SHOWER COOLANT/GUN WASH APC SIDE
SYNC. CONTROL Y
VER. BACKLASH
TAPE STORAGE 320M
TOOL DATA 200, APC PALLET WAIT ROTATION, APC SAFETY GUARD, PALLET SI WATCH, ATC AUTO DOOR
SUB-PROGRAM
ADD-PATTERN CYCLE/ POINT CALCULATION
POINT CALC / ADD PATTERN CYCL / HI-CUT PRO / 3D R-SIMULATION
3D R-SIMULATION/ SEQUENCE STOP
COORDINATE CALCULATION/ AREA MACHINING/ COODINATE CONVERSION/ PROGRAM LIMIT/ PLAYBACK (IMAP)/ IMAP
PFC2/WCS2
DNC T1 / COMMON VARIABLE 200 SETS
GRAPHIC IMAP, HI - G, NC OP MONITOR, SERVO LINK NC AXIS, SERVO LINK S AXIS, 4 AXIS B FIX
RENISHAW PART PROBE RMP 600
INVERSE TIME FEED FUNCTION
MACHINING NAVI M-G
