Used 2017 HAAS UMC-750SS | CNC 5 Axis Machines

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC 5 Axis Machines
Manufacturer:
HAAS
Model:
UMC-750SS
Year:
2017
Stock #:
10048
Status:
For Sale

Description

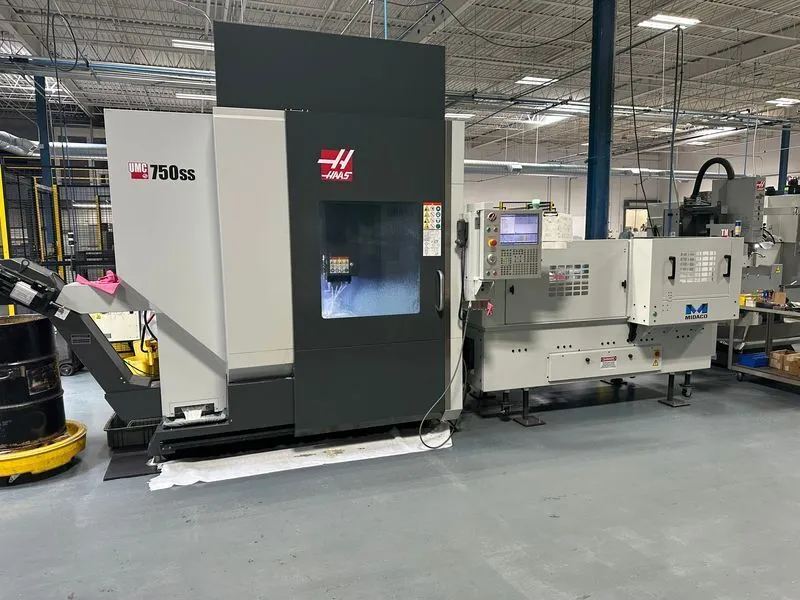

2017 HAAS UMC-750SS CNC 5 Axis Machine with HAAS CNC CONTROL, features 30 hp spindle, 15,000 RPM, high-speed machining, and automatic tool changer. Equipped with rotation and scaling, through spindle coolant, and wireless probe. Machine weight: 14,250 lb.

Number Of Tables / Pallets1919
Weight On Table200 lb90.7 kg
Main Spindle Horse Power30 hp22.4 kW
Spindle Nose To Table4" - 24"4" - 24"
Main Spindle Speeds15,000 RPM15,000 RPM
Main Spindle Taper40.040.0
X - Axis Travel30"762 mm
Y - Axis Travel20"508 mm
Z - Axis Travel20"508 mm
B - Axis Travel120 ° to 35- °120 ° to 35- °
C - Axis Travel Table Indexing360 Degrees360 Degrees
Rapid Traverse Rate - X1,200 in/min.30.5 m/min.
Rapid Traverse Rate - Y1,200 in/min.30.5 m/min.
Rapid Traverse Rate - Z1,200 in/min.30.5 m/min.
Cutting Feed Rate833 in/min.21.2 m/min.
Automatic Tool Changer301301
Tool Diameter2.5" / 5"2.5" / 5"
Tool Length12"304.8 mm
Tool Weight12 lb5.4 kg
Machine Weight14,250 lb6,463.7 kg
Dimensions168.0 in x 92.5 in x 110.0 in168.0 in x 92.5 in x 110.0 in

HAAS CNC CONTROL
MACROS
ROTATION AND SCALING
RIGID TAPING
TCPC AND DWO
M19 SPINDLE ORIENT
HIGH SPEED MACHINING
VPS EDITING
MEDIA DISPLAY
FOURTH AXIS, FIFTH AXIS
MAX MEMORY 1GB
COMPENSATION TABLES
THROUGH SPINDLE COOLANT
15000 SPINDLE RPM
WIRELESS PART AND TOOL PROBE
