Used 2024 VICTOR TAICHUNG VMT-X260 | Lathes CNC, Y-Axis / Multi Axis

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, Y-Axis / Multi Axis
Manufacturer:
VICTOR TAICHUNG
Model:
VMT-X260
Year:
2024
Stock #:
10051
Status:
For Sale

Description

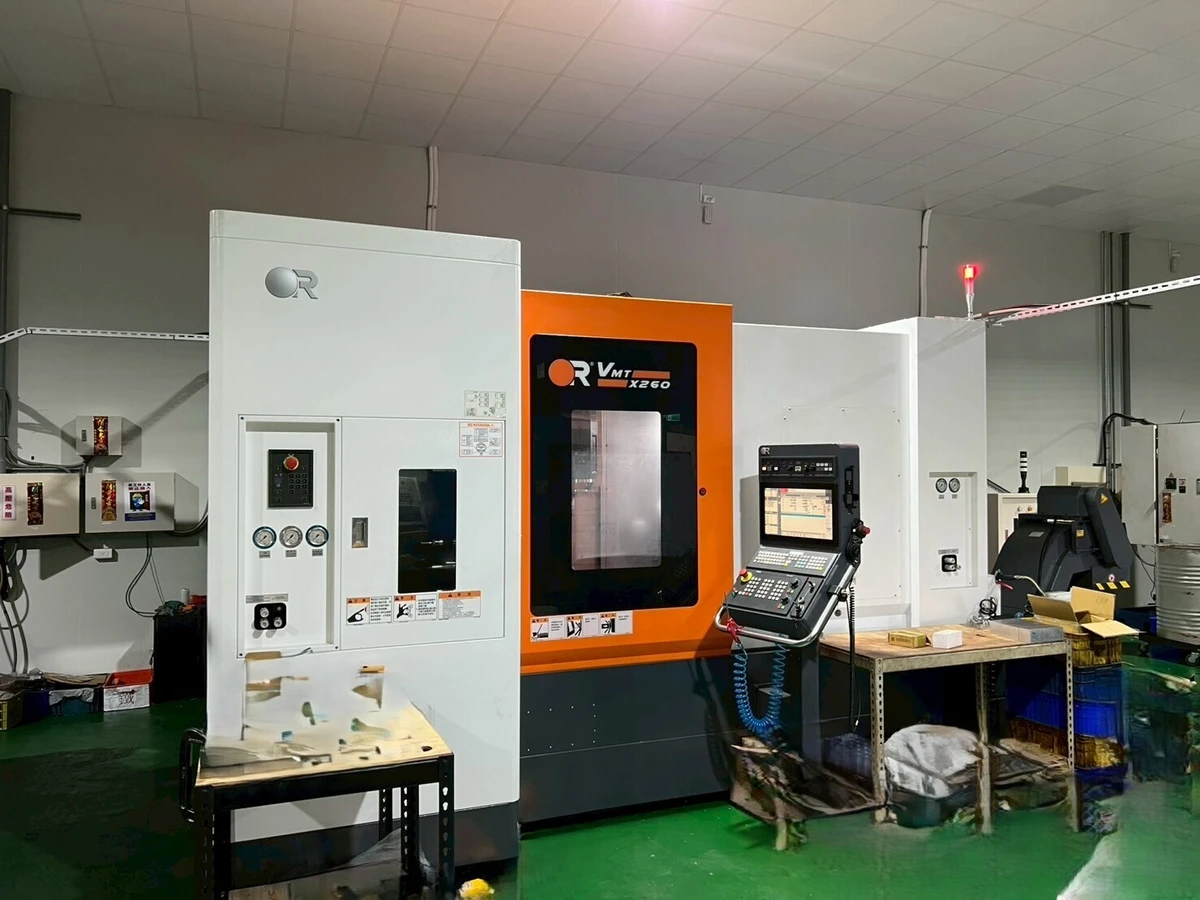

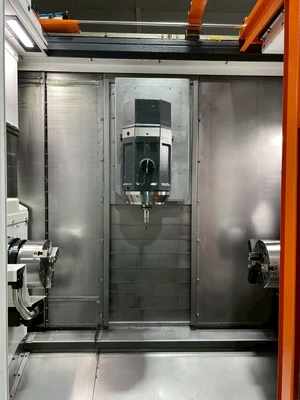

Experience precision with the 2024 Victor Taichung VMT-X260 CNC Lathe. Featuring Y-Axis, dual 10" chucks, and Siemens 5-axis control, it handles complex tasks effortlessly. Maximize efficiency with a 12,000 RPM milling spindle and 29.5 HP power.

Swing Over Bed26"660.4 mm
Turning Diameter19.7"500.38 mm
Turning Length42.3"1,074.4 mm
Distance Between Spindles54.2"1,376.7 mm

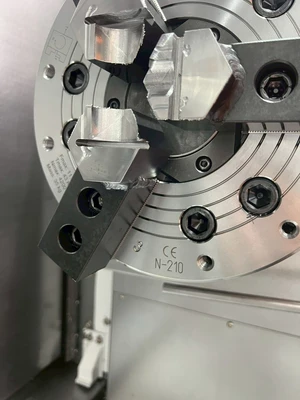

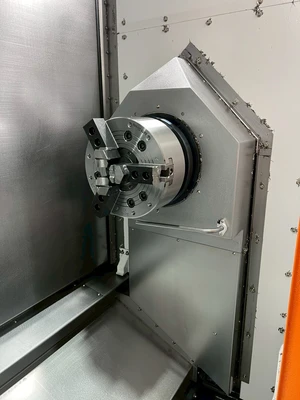

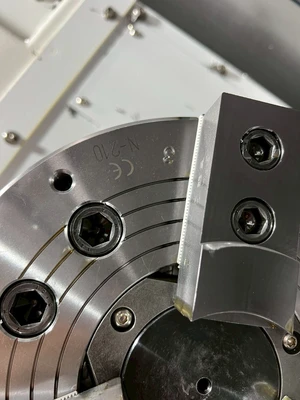

Chuck Size 110"254 mm
Spindle Nose 1A2-8A2-8
Spindle Bore Diameter 12.95"74.93 mm
Bar Capacity 12.59"65.786 mm
Spindle Speeds 13,500 RPM3,500 RPM
Spindle Horsepower 129.5 hp22 kW

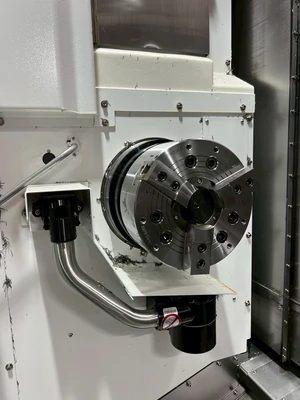

Chuck Size 210"254 mm
Spindle Nose 2A2-8A2-8
Spindle Bore Diameter 22.95"74.93 mm
Bar Capacity 22.59"65.786 mm
Spindle Speeds 24,200 RPM4,200 RPM
Spindle Horsepower 229.5 hp22 kW

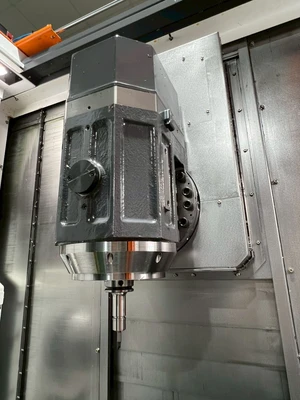

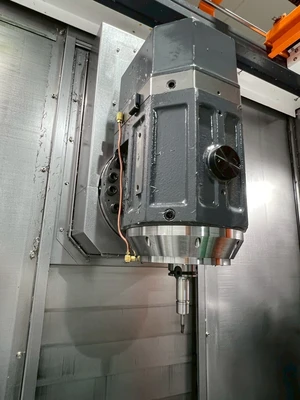

B - Axis Head Travel-30 to +210 Degrees-30 to +210 Degrees
B - Axis Head Indexing0.000.00
B - Axis Milling Spindle TaperHSK-63HSK-63
B - Axis Milling Spindle Speed12,000 RPM12,000 RPM
B - Axis Milling Spindle Horse Power29.5 hp22 kW

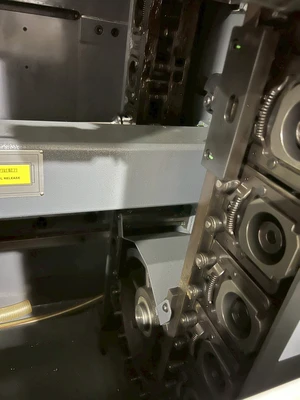

ATC For Milling Spindle4040
Tool Diameter3.54" / 4.92"3.54" / 4.92"
Tool Length11.8"299.72 mm
Tool Weight15.4 lb7 kg
X1 - Axis Travel25"635 mm
Z1 - Axis Travel46"1,168.4 mm
Y1 - Axis Travel10.2"259.08 mm
W - Axis Travel Sub Spindle42.5"1,079.5 mm
Rapid Traverse Rate - X11417 ipm
Rapid Traverse Rate - Z11417 ipm
Rapid Traverse Rate - Y11417 ipm
Machine Weight27,558 lb12,500.1 kg
Dimensions214" x 119" x 115" - Floor space w/ conveyor214" x 119" x 115" - Floor space w/ conveyor

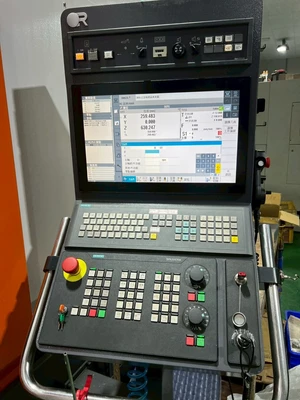

SIEMENS ONE 5 AXIS SIMULTANEOUS CONTROL
COOLANT THRU MILL HEAD

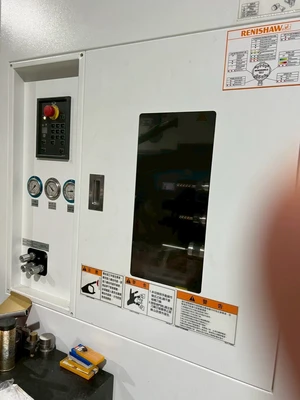

RPM60 PART SETTER
CHIP CONVEYOR
