| Number Of Tables / Pallets | 1 | 1 |
| Table-L | 77.48" | 1,968 mm |
| Table-W | 20.08" | 510.03 mm |
| Weight on Table | 1,760 lb | 798.3 kg |
| Spindle Nose to Table Top | 7.09'' - 27.17'' | 7.09'' - 27.17'' |
| X - Axis Travel | 66" | 1,676.4 mm |
| Y - Axis Travel | 20.08" | 510.03 mm |
| Z - Axis Travel | 20.08" | 510.03 mm |
| Rapid Traverse Rate - X | 1,181 in/min. | 30 m/min. |
| Rapid Traverse Rate - Y | 1,181 in/min. | 30 m/min. |
| Rapid Traverse Rate - Z | 1,181 in/min. | 30 m/min. |
| Cutting Feed Rate | 697.8 in/min. | 17.7 m/min. |
| Spindle Speed | 12,000 RPM | 12,000 RPM |
| Spindle Taper | 40 | 40 |
| Main Motor | 20 hp | 14.9 kW |
| Tool Diameter | 3.14", 4.33" | 3.14", 4.33" |
| Tool Length | 13.7" | 347.98 mm |
| Tool Weight | 17.8 lb | 8.1 kg |
| Automatic Tool Changer | 25 | 25 |
| Control | CNC (MAZATROL 640M CNC COLOR CONTROL) | CNC (MAZATROL 640M CNC COLOR CONTROL) |
| Weight | 0.00 | 0.00 |
Table Size : 77.48'' X 20.08''
Spindle Nose To Table Top: 7.09'' - 27.17''
Throat Distance: 21.65''
Table Load Capacity: 1760 LBS.
Spindle Nose : CAT 40
Spindle Speed: 12,000 RPM
Rapid Traverse X, Z, Y, : 1181 IPM
Cutting Feed Rate: .04 - 697.8 IPM
Tool Magazine: 24 ATC
Max Tool Dia.: 3.14/4.33
Maximum Tool Weight: 17.78 LBS.
Max Tool Length: 13.7''
X - Axis Travel: 66"
Y - Axis Travel: 20.08"
Z - Axis Travel: 20.08"
Main Motor: 20 HP
ALL AVAILABLE MANUALS
AUTOMATIC TOOL LENGTH MEASUREMENT

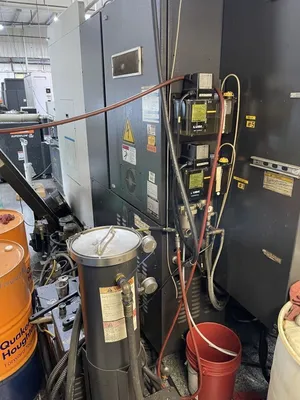

COOLANT THRU THE SPINDLE WITH COOLANT FILTRATION
FULL ENCLOSURE

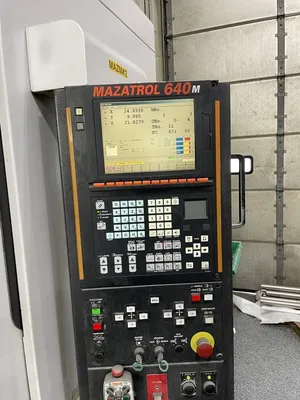

MAZAK FUSION 640M MAZATROL CNC CONTROL
RIGID TAPPING
TRANSFORMER
CHIP CONVEYOR
This equipment is currently unavailable. Similar equipment available now is shown below.
