Used 2011 OKUMA VTM-120YB | Boring Mills Vertical CNC

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Boring Mills Vertical CNC
Manufacturer:
OKUMA
Model:
VTM-120YB
Year:
2011
Stock #:
10059
Status:
For Sale
Country:
United States

Description

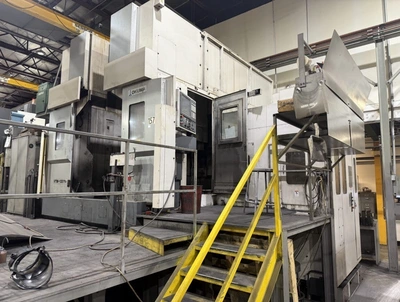

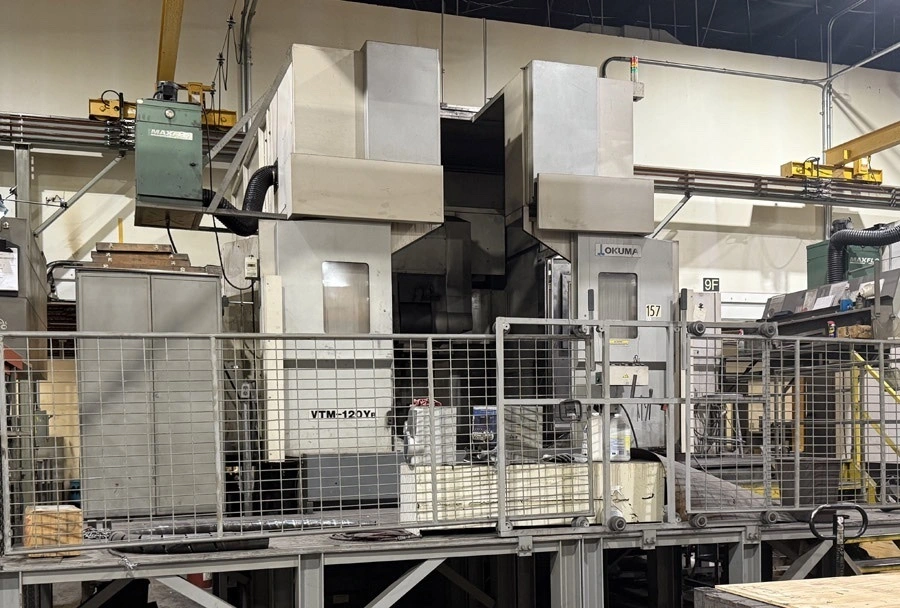

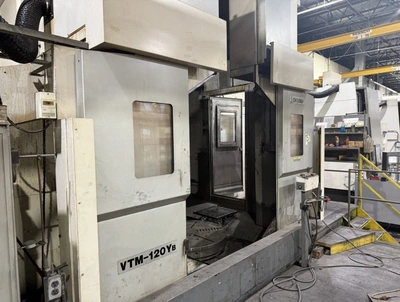

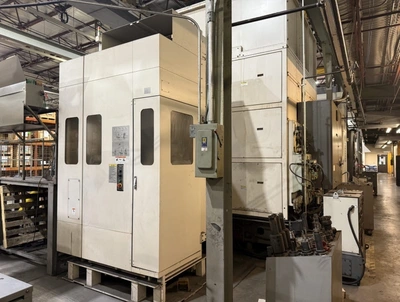

OKUMA VTM-120YB Boring Mills Vertical CNC from 2011, featuring a 49.21" table and 6,600 lb load capacity. Equipped with OSP-P200LA CNC controls, high-pressure thru spindle coolant, and more. Ideal for demanding machining tasks.

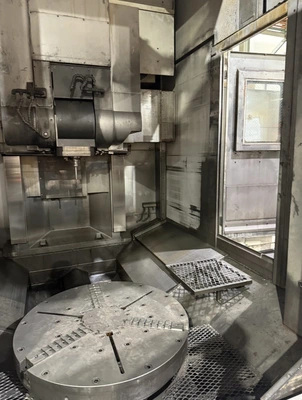

Table Diameter49.21"1,249.9 mm
Table Load Capacity6,600 lb2,993.7 kg
Swing Diameter59.06"1,500.1 mm
Turning Height42.52"1,080 mm
Spindle Nose#50#50
Table Speed600 RPM600 RPM
Main Motor30 hp22.4 kW
X - Axis Travel50"1,270 mm
Z - Axis Travel39.37"1,000 mm
Rapid Traverse Rate - X630 ipm
Rapid Traverse Rate - Z630 in/min.16 m/min.
C - Axis Indexing360 Degrees360 Degrees
Rotary Spindle Speed4,000 RPM4,000 RPM
Rotary Spindle Horsepower20 hp14.9 kW
Automatic Tool Changer3636
Machine Weight59,400 lb26,943.4 kg

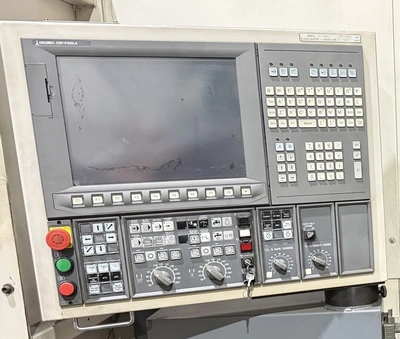

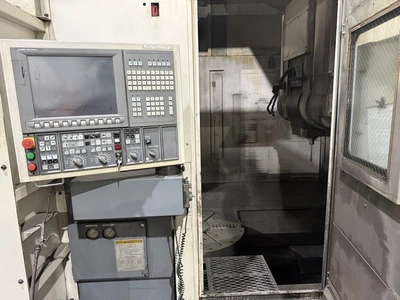

OSP-P200LA CNC CNC CONTROLS
MP SYSTEMS HIGH PRESSURE THRU SPINDLE COOLANT SYSTEM
MAGNETIC CHIP CONVEYOR

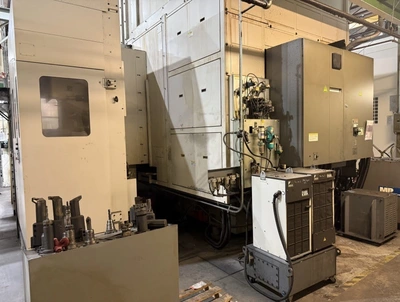

(2) OIL COOLER
MAXFLO MIST AND DUST COLLECTOR
90 DEGREE B AXIS INDEX
Y AXIS +/- 19.69"
