| Swing Over Bed | 28.7" | 728.98 mm |
| Turning Diameter | 25.9" | 657.86 mm |
| Turning Length | 59" | 1,498.6 mm |
| Chuck Size 1 | 15" | 381 mm |
| Bar Capacity 1 | 3.15" | 80.01 mm |
| Spindle Speeds 1 | 3,000 RPM | 3,000 RPM |
| Spindle Horsepower 1 | 30 hp | 22.4 kW |
| Chuck Size 2 | 15" | 381 mm |
| Bar Capacity 2 | 3.15" | 80.01 mm |
| Spindle Speeds 2 | 3,000 RPM | 3,000 RPM |
| B - Axis Head Travel | +/- 120 Degrees | +/- 120 Degrees |
| B - Axis Head Indexing | 0.0001 | 0.0001 |
| B - Axis Milling Spindle Taper | Capto C6 | Capto C6 |
| B - Axis Milling Spindle Speed | 12,000 RPM | 12,000 RPM |
| B - Axis Milling Spindle Horse Power | 24.7 hp | 18.4 kW |
| ATC For Milling Spindle | 100 | 100 |
| Tool Diameter | 2.7" / 5.5" | 2.7" / 5.5" |
| Tool Length | 15.7" | 398.78 mm |
| Tool Weight | 22 lb | 10 kg |
| X1 - Axis Travel | 29.5" | 749.3 mm |
| X2 - Axis Travel | 7.7" | 195.58 mm |
| Z1 - Axis Travel | 61" | 1,549.4 mm |
| Z2 - Axis Travel | 60" | 1,524 mm |
| Y1 - Axis Travel | -8.3" | -210.82 mm |
| C - Axis Indexing 1 | 0.0001 | 0.0001 |
| C - Axis Indexing 2 | 0.0001 | 0.0001 |
| W - Axis Travel Sub Spindle | 63" | 1,600.2 mm |
| Rapid Traverse Rate - X1 | 1968 ipm | |
| Rapid Traverse Rate - X2 | 1181 ipm | |
| Rapid Traverse Rate - Z1 | 1968 ipm | |
| Rapid Traverse Rate - Z2 | 1181 ipm | |
| Rapid Traverse Rate - Y1 | 1181 ipm | |
| Turret Tool Positions 1 | 12 station | 12 station |
| Machine Weight | 59,000 lb | 26,762 kg |
| Weight | 62250.00 | 62250.00 |

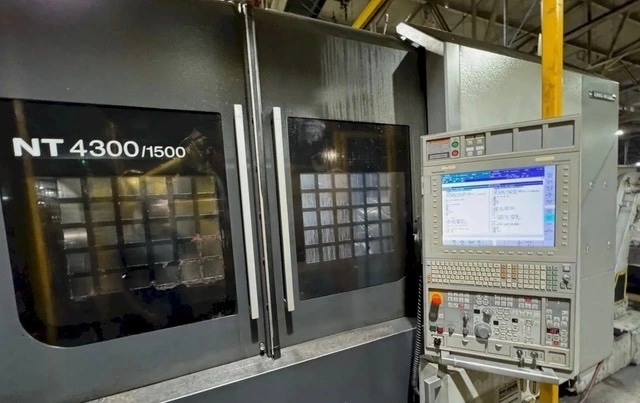

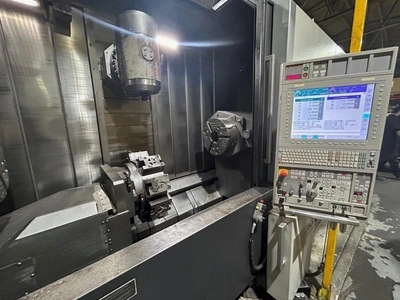

MORI SEIKI MAPPS IV CNC CONTROL - FANUC 31IA
PROBING
SCALE FEEDBACK X AXIS
CHIP BLASTER HIGH PRESSURE COOLANT SYSTEM

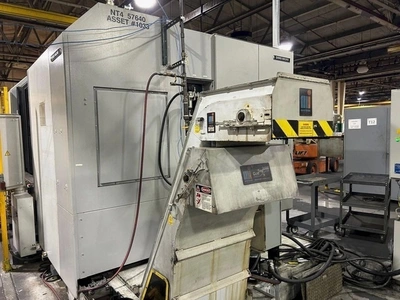

CHIP CONVEYOR
TOOL PRESETTER
ASSORTED CAPTO HOLDERS
HOBBING SOFTWARE
CHILLER
This equipment is currently unavailable. Similar equipment available now is shown below.
