DOOSAN NHP 6300 CNC 4 AXIS HORIZONTAL MACHINING CENTER
Unavailable

DOOSAN NHP 6300 CNC 4 AXIS HORIZONTAL MACHINING CENTER

Horizontal Machining Centers
Manufacturer:
DOOSAN
Model:
NHP 6300
Year:
2020
Stock #:
10061
Serial #:
MH0018-000444

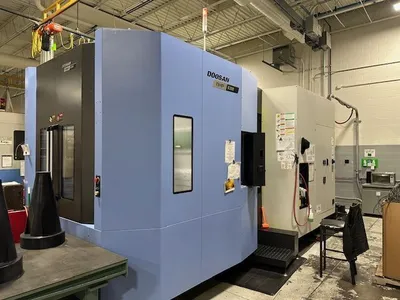

2020 Doosan NHP 6300 CNC 4-Axis Horizontal Machining Center. Includes FANUC 31i-B CNC color control, thru spindle coolant, and tool length probe. Pallet size 24.8" square, 2,364 IPM rapid rates, 90-tool changer. Max spindle speed 10,000 RPM.
Pallet Size - L24.8"629.92 mm
Pallet Size - W24.8"629.92 mm
Number of Pallets22
Pallet Weight Capacity3,307 lb1,500 kg
Pallet Surface to Spindle Center3.0" ~ 38.4"3.0" ~ 38.4"
Pallet Center To Spindle Gage Line3.9" ~ 37.4"3.9" ~ 37.4"
Workpiece Dimensions43.1 x 53.2 " Ht.43.1 x 53.2 " Ht.
X - AxisTravel41.3"1,049 mm
Y - Axis Travel35.4"899.16 mm
Z - Axis Travel39.4"1,000.8 mm
B - Axis Travel.001.001
Rapid Traverse Rate - X2,364 in/min.60 m/min.
Rapid Traverse Rate - Y2364 ipm
Rapid Traverse Rate - Z2364 ipm
Cutting Feed Rate1,181 in/sec.1,799.8 m/min.
Spindle Speed10,000 RPM10,000 RPM
Spindle Taper5050
Main Motor45 hp33.6 kW

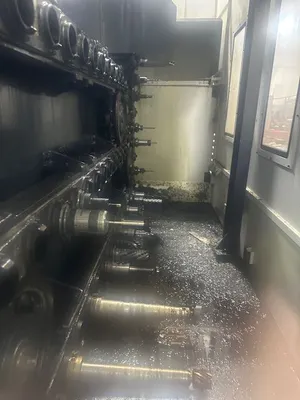

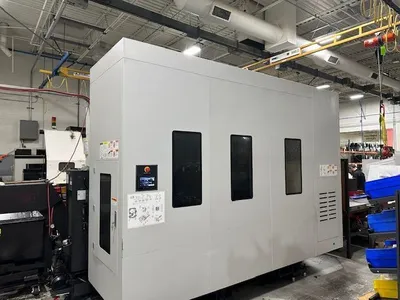

Automatic Tool Changer9090
Tool Diameter4.9", 12.6"4.9", 12.6"
Tool Length24.8"629.92 mm
Tool Weight66.1 lb30 kg
Tool Change Time2 sec.2 sec.
Machine Weight39,700 lb18,007.6 kg
ControlCNC (FANUC 31 IB CNC COLOR CONTROL)CNC (FANUC 31 IB CNC COLOR CONTROL)

FANUC 31IB MODEL CNC COLOR CONTROL
THRU SPINDLE COOLANT
CHIP CONVEYOR
PCMCI CARD SLOT
USB PORT
RENISHAW PART PROBE
TOOL LENGTH MEASUREMENT TOUCH PROBE
RIGID TAPPING
CUSTOM MACRO B
DOOSAN TOOL LOAD MONITORING
EMBEDDED ETHERNET FUNCTION
3859 CUTTING HOURS
ONLY CUT PLASTIC
