| Number Of Tables / Pallets | 1 | 1 |

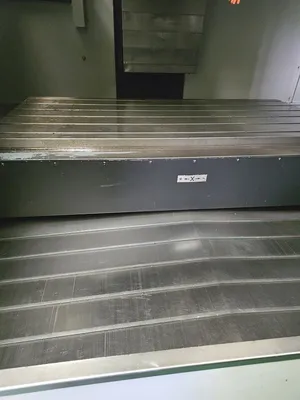

| Table-L | 74.8" | 1,899.9 mm |
| Table-W | 29.5" | 749.3 mm |
| Weight on Table | 3,306 lb | 1,499.6 kg |
| Spindle Nose to Table Top | 5.9 - 30.8 | 5.9 - 30.8 |
| X - Axis Travel | 60.6" | 1,539.2 mm |
| Y - Axis Travel | 29.9" | 759.46 mm |
| Z - Axis Travel | 24.8" | 629.92 mm |
| Rapid Traverse Rate - X | 945 in/min. | 24 m/min. |
| Rapid Traverse Rate - Y | 945 in/min. | 24 m/min. |
| Rapid Traverse Rate - Z | 787 in/min. | 20 m/min. |
| Cutting Feed Rate | 394 in/min. | 10 m/min. |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Spindle Taper | #50 | #50 |
| Number of Gear Ranges | 2 | 2 |
| Main Motor | 35 hp | 26.1 kW |
| Tool Diameter | 4.9 | 4.9 |
| Tool Length | 11.8" | 299.72 mm |
| Tool Weight | 33 lb | 15 kg |
| Machine Weight | 32,000 lb | 14,515 kg |
| Automatic Tool Changer | 24 | 24 |
| Control | CNC (DOOSAN FANUC SERIES I) | CNC (DOOSAN FANUC SERIES I) |
| Dimensions | 201 in x 120 in x 119 in | 201 in x 120 in x 119 in |
| Weight | 32000 lb | 32000 lb |

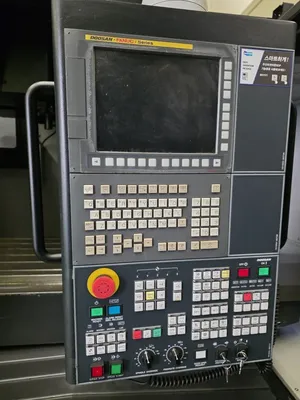

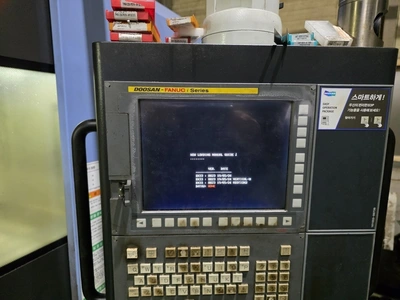

DOOSAN FANUC SERIES-I CNC CONTROL
HAND HELP MPG
RIGID TAPPING
BIG PLUS SPINDLE

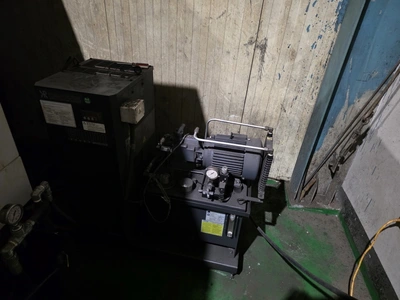

SPINDLE HEAD COOLING SYSTEM
DOOSAN TOOL LOAD MONITORING SYSTEM
EMBEDDED ETHERNET FUNCTION
200 PAIRS TOOL OFFSETS

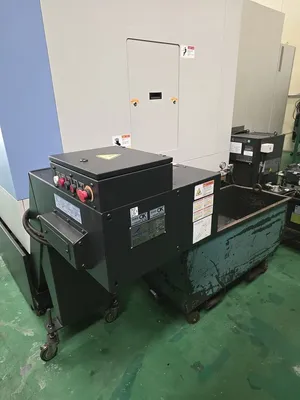

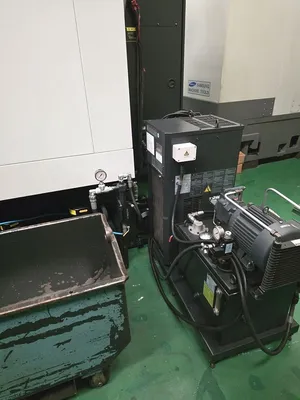

CHIP CONVEYOR
ALL AVAILABLE MANUALS
COOLANT THROUGH SPINDLE
This equipment is currently unavailable. Similar equipment available now is shown below.
