| Swing Over Bed | 29.1" | 739.14 mm |
| Machining Length | 81.4" | 2,067.6 mm |
| Distance Between Centers | 91.5" | 2,324.1 mm |
| Chuck Size 1 | 18" | 457.2 mm |
| Spindle Nose 1 | A2 -15 | A2 -15 |
| Spindle Bar Capacity 1 | 7.3" | 185.42 mm |
| Turning Diameter, Shaft Diameter | 24.4" | 619.76 mm |
| Spindle Speeds 1 | 1,500 RPM | 1,500 RPM |
| Spindle Horsepower 1 | 40 hp | 29.8 kW |
| Spindle Bore Diameter 1 | 7.7" | 195.58 mm |
| X1 - Axis Travel | 13.6" | 345.44 mm |
| Z1 - Axis Travel | 86.4" | 2,194.6 mm |
| Rapid Traverse Rate - X1 | 787 in/min. | 333.2 mm/sec. |
| Rapid Traverse Rate - Z1 | 945 in/min. | 400.1 mm/sec. |
| Gear Ranges | 2 | 2 |

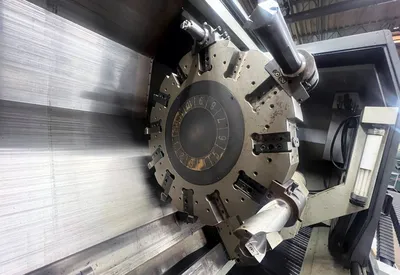

| Turret Configuration 1 | 12 | 12 |

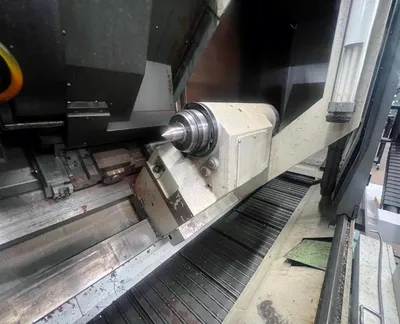

| Tailstock Quill Travel | 5.9" | 149.86 mm |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 78.7" | 1,999 mm |
| Bar Capacity | 6.3" | 160.02 mm |
| Control | CNC | CNC |

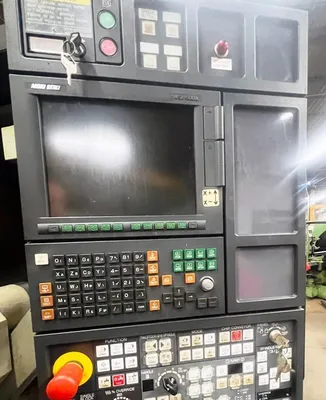

MSX-500III MORI CNC CONTROL
10.4'' COLOR LCD
REMOVABLE TOOL PRE SETTER
MAPPS CONVERSATIONAL PROGRAMMING

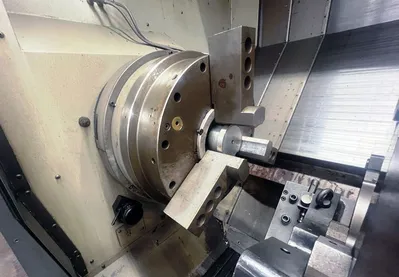

18'' 3 AIR CHUCK WITH
SPINDLE CHILLER
SMW AUTOBLOCK SLU X PROGRAMMABLE OPEN CLOSE STEADY REST
ALL AVAILABLE MANUALS
ALL AVAILABLE TOOLING
