Used 2022 DN SOLUTIONS PUMA MX 2100ST | Lathes CNC, Y-Axis / Multi Axis

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, Y-Axis / Multi Axis
Manufacturer:
DN SOLUTIONS
Model:
PUMA MX 2100ST
Year:
2022
Stock #:
10068
Status:
For Sale
Serial #:
MM0008-000218
Swing Over Bed29.5"749.3 mm
Turning Diameter21.3"541.02 mm
Turning Length40.2"1,021.1 mm
Chuck Size 18"203.2 mm
Spindle Nose 1A2-6A2-6
Spindle Bore Diameter 13"76.2 mm
Bar Capacity 12.6"66.04 mm
Spindle Speeds 15,000 RPM5,000 RPM
Spindle Horsepower 129.5 hp22 kW
Chuck Size 28"203.2 mm
Spindle Nose 2A2-6A2-6
Spindle Bore Diameter 23"76.2 mm
Bar Capacity 22.6"66.04 mm
Spindle Speeds 25,000 RPM5,000 RPM
Spindle Horsepower 229.5 hp22 kW
B - Axis Head Travel41.341.3
B - Axis Head Indexing0.000.00
B - Axis Milling Spindle TaperCapto C6Capto C6
B - Axis Milling Spindle Speed12,000 RPM12,000 RPM
B - Axis Milling Spindle Horse Power24.8 hp18.5 kW
ATC For Milling Spindle3030
Tool Diameter3.5 / 4.73.5 / 4.7
Tool Length11.8"299.72 mm
Tool Weight19.8 lb9 kg
X1 - Axis Travel22.2"563.88 mm
X2 - Axis Travel7.4"187.96 mm
Z1 - Axis Travel41.3"1,049 mm
Z2 - Axis Travel41.3"1,049 mm
Y1 - Axis Travel6.7"170.18 mm
C - Axis Indexing 10.000.00
C - Axis Indexing 20.000.00
Rapid Traverse Rate - X11417 ipm
Rapid Traverse Rate - X2945 ipm
Rapid Traverse Rate - Z11417 ipm
Rapid Traverse Rate - Z21417 ipm
Rapid Traverse Rate - Y11023 ipm
Turret Tool Positions 112 station12 station
Turret Rotary Tool Speeds 15,000 RPM5,000 RPM
Machine Weight26,456 lb12,000.3 kg
Dimensions190.9" x 99.4" x 110.4190.9" x 99.4" x 110.4

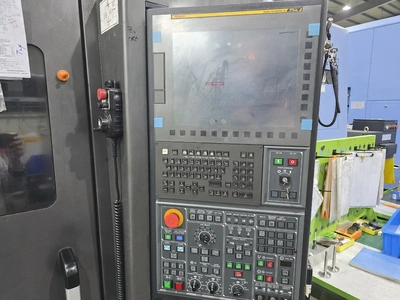

FANUC 31IB PLUS CNC CONTROL
TOOL PRESETTER
HIGH PRESSURE COOLANT THRU SPINDLE
HAND HELD MPG
DOOSAN TOOL LOAD MONITORING
ETHERNET, USB

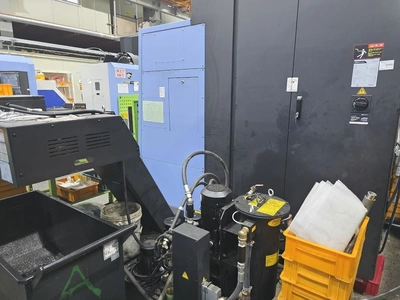

CHIP CONVEYOR
