| Swing Over Bed | 27.4" | 695.96 mm |
| Turning Diameter | 13.5" | 342.9 mm |
| Turning Length | 22.4" | 568.96 mm |
| Chuck Size 1 | 8" | 203.2 mm |
| Spindle Nose 1 | A2-6 | A2-6 |
| Bar Capacity 1 | 2" | 50.8 mm |
| Spindle Speeds 1 | 5,000 RPM | 5,000 RPM |
| Spindle Horsepower 1 | 20 hp | 14.9 kW |
| Chuck Size 2 | 5" | 127 mm |
| Spindle Speeds 2 | 6,000 RPM | 6,000 RPM |
| Spindle Horsepower 2 | 10 hp | 7.5 kW |
| X1 - Axis Travel | 8.5" | 215.9 mm |
| Z1 - Axis Travel | 23.75" | 603.25 mm |
| Y1 - Axis Travel | 4" | 101.6 mm |
| W - Axis Travel Sub Spindle | 22.87" | 580.9 mm |
| Turret Tool Positions 1 | 12 station | 12 station |
| Turret Rotary Tool Speeds 1 | 6,000 RPM | 6,000 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp | 5.6 kW |
| Machine Weight | 12,125 lb | 5,499.8 kg |
| Dimensions | 75" x 102.4" x 67.9" | 75" x 102.4" x 67.9" |

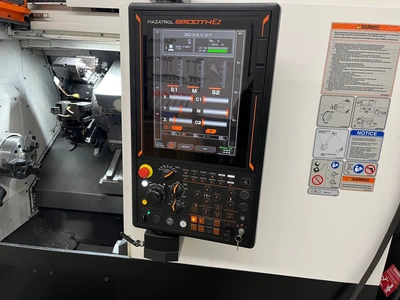

MAZATROL SMOOTH EZ CNC CONTROL

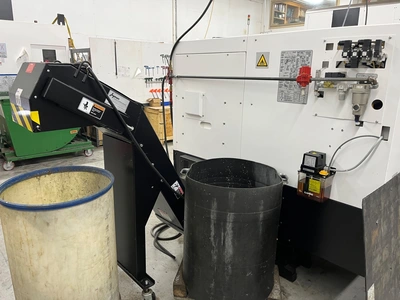

CHIP CONVEYOR

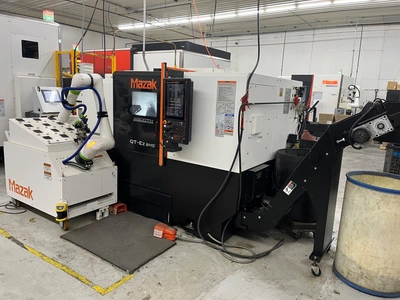

COBOT AUTOMATION CELL
AUTO TOOLSETTER
ALL AVAILABLE TOOLING AND MANUALS
