| Swing Over Bed | 26.5" | 673.1 mm |
| Turning Diameter | 14.75" | 374.65 mm |
| Turning Length | 21.27" | 540.26 mm |
| Distance Between Spindles | 21.275" | 540.38 mm |
| Chuck Size 1 | 10" | 254 mm |
| Spindle Nose 1 | A2 - 8 | A2 - 8 |
| Spindle Bore Diameter 1 | 3.6" | 91.44 mm |
| Bar Capacity 1 | 3.25" | 82.55 mm |
| Spindle Speeds 1 | 4,000 RPM | 4,000 RPM |
| Spindle Horsepower 1 | 35 hp | 26.1 kW |
| Chuck Size 2 | 6" | 152.4 mm |
| Spindle Nose 2 | A2 - 5 | A2 - 5 |
| Spindle Bore Diameter 2 | 1.7" | 43.18 mm |
| Spindle Speeds 2 | 6,000 RPM | 6,000 RPM |
| Spindle Horsepower 2 | 15 hp | 11.2 kW |
| X1 - Axis Travel | 9" | 228.6 mm |
| Z1 - Axis Travel | 22.75" | 577.85 mm |
| Y1 - Axis Travel | 4" | 101.6 mm |
| C - Axis Indexing 1 | 0.001 | 0.001 |
| C - Axis Indexing 2 | 0.001 | 0.001 |
| W - Axis Travel Sub Spindle | 23" | 584.2 mm |
| Rapid Traverse Rate - X1 | 1181 ipm | |
| Rapid Traverse Rate - Z1 | 1299 ipm | |
| Rapid Traverse Rate - Y1 | 826 ipm | |

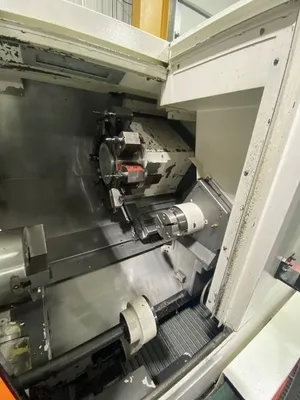

| Turret Tool Positions 1 | 12 station | 12 station |
| Turret Rotary Tool Speeds 1 | 6,000 RPM | 6,000 RPM |
| Turret Rotary Tool Horse Power 1 | 10 hp | 7.5 kW |
| Programmable Tailstock | 'No' | 'No' |
| Machine Weight | 11,905 lb | 5,400 kg |
| Control | CNC | CNC |
| Weight | 0.00 | 0.00 |

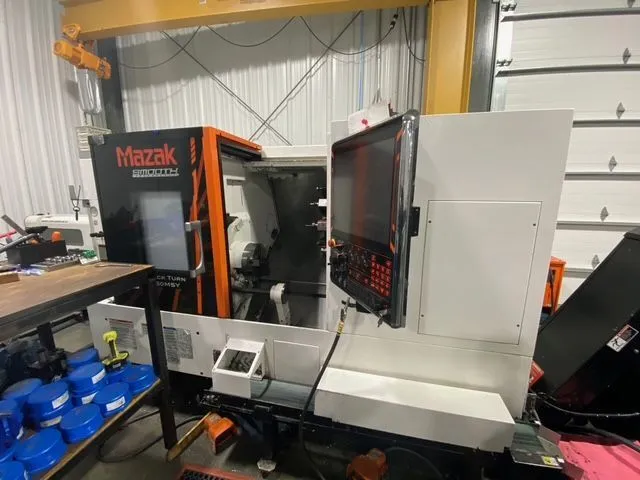

MAZATROL SMOOTH G CNC COLOR CONTROL
8" 3-JAW FRONT SPINDLE
6" 3-JAW REAR SPINDLE

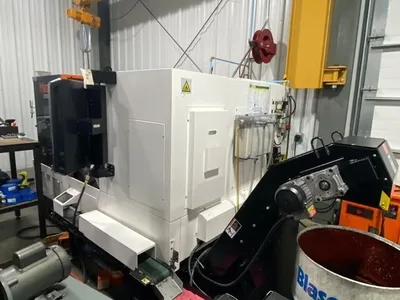

CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
BARFEED INTERFACE

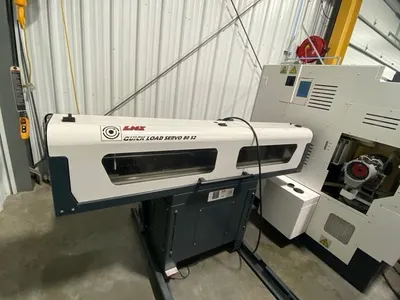

LNS SERVO 80 S2 SHORT MAGAZINE BARFEED SYSTEM
AUTOMATIC TOOL EYE
AUTOMATIC PARTS CATCHER & AUTO PARTS CONVEYOR

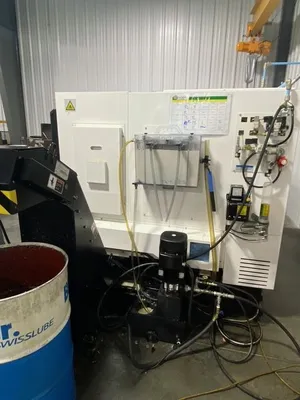

MAZAK HIGH PRESSURE COOLANT
(3) ROTARY HEADS

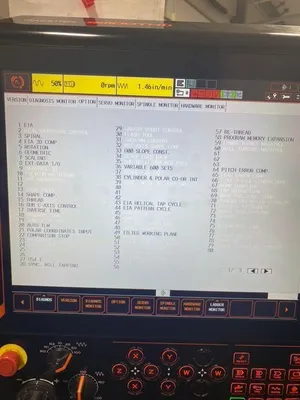

EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT - DATA I/O
SHPE COMP, THREAD, SUB C-AXIS CON TROL, INVERSE TIME
AUTO ATLM, POLAR COORDINATES INPUT, COMPARISON STOP, G54.1, SYNC MILL TAP
VARIABLE 600 SETS. CYLINDER & POLARCO-OR INT, G00 SLOPE CONST.
EIA HELICAL TAP CYCLE , EIA PATTERN CYCLE, TILTED WORK PLANE
RE-THREAD, PROGRAM MEMORY EXPANSION, PITCH ERROR COMP
This equipment has been sold. Similar equipment available now is shown below.
