DMG MORI DMU 50 GEN III CNC 5 AXIS MACHINING CENTER

DMG MORI DMU 50 GEN III CNC 5 AXIS MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC 5 Axis Machines
Manufacturer:
DMG MORI
Model:
DMU 50 GEN III
Year:
2019
Stock #:
10077
Status:
For Sale
Serial #:
14505777994

Description

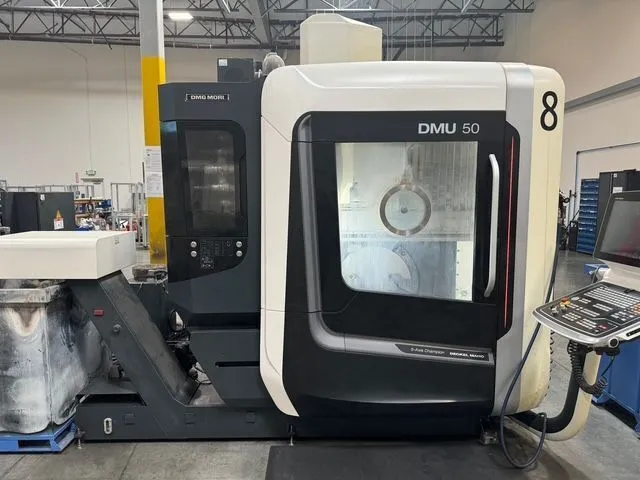

2019 DMG MORI DMU 50 GEN III CNC 5 Axis Machining Center, used, offers precision with 20,000 RPM spindle, 30-tool automatic changer, and advanced features like coolant thru spindle and linear scales. Robust design for exceptional performance in a compact footprint.

Number Of Tables / Pallets11
Table Size - L24.8"629.92 mm
Table Size - W19.6"497.84 mm
Weight On Table660 lb299.4 kg
Main Spindle Horse Power28 hp20.9 kW
Spindle Nose To Table5.9" ~ 24.6"5.9" ~ 24.6"
Main Spindle Speeds20,000 RPM20,000 RPM
Main Spindle Taper63.063.0
X - Axis Travel25.6"650.24 mm
Y - Axis Travel20.4"518.16 mm
Z - Axis Travel18.7"474.98 mm
A - Axis Travel-5 DEGREES + 110 DEGREES-5 DEGREES + 110 DEGREES
C - Axis Travel Table Indexing360360
Rapid Traverse Rate - X1,654 in/min.42 m/min.
Rapid Traverse Rate - Y1,654 in/min.42 m/min.
Rapid Traverse Rate - Z1,654 in/min.42 m/min.
Automatic Tool Changer3030
Tool Diameter3.14" ~ 5.11 "3.14" ~ 5.11 "
Tool Length11.8"299.72 mm
Tool Weight13.2 lb6 kg
Machine Weight11,500 lb5,216.3 kg
ControlCNC (HEIDENAIN TNC 640 3D CNC CONTROL)CNC (HEIDENAIN TNC 640 3D CNC CONTROL)
Weight0.000.00

HEIDENAIN TNC 640 3D CNC COLOR CONTROLL
3 D QUICK SET
CHIP CONVEYOR
HAND HELD REMOTE PULSE GENERATOR
SPRAY GUN FOR SWARF REMOVAL
AIR BLAST THROUGH SPINDLE CENTER
COOLANT THRU SPINDLE 40 BAR WITH PAPER FILTRATION SYSTEM
BLUM TOOL LENGTH LASER MEASUREMENT TOUCH PROBE
INFRARED MEASUREING PROBE PP60 OPTICAL
ROTATING CLEAR VIEW WINDOW
LINEAR SCALES ON ALL AXES
