| Swing Over Bed | 32.68" | 830.07 mm |
| Machining Length | 120" | 3,048 mm |
| Distance Between Centers | 125" | 3,175 mm |
| Turning Diameter, Shaft Diameter | 26.92" | 683.77 mm |
| Chuck Size 1 | 24" | 609.6 mm |
| Spindle Nose 1 | A2 - 15 | A2 - 15 |
| Spindle Bore Diameter 1 | 8.02" | 203.71 mm |
| Spindle Bar Capacity 1 | 7.4" | 187.96 mm |
| Spindle Speeds 1 | 1,200 RPM | 1,200 RPM |
| Spindle Horsepower 1 | 50 hp | 37.3 kW |
| X1 - Axis Travel | 15.35" | 389.89 mm |
| Z1 - Axis Travel | 124" | 3,149.6 mm |
| Rapid Traverse Rate - X1 | 472 in/min. | 199.8 mm/sec. |
| Rapid Traverse Rate - Z1 | 472 in/min. | 199.8 mm/sec. |
| Gear Ranges | 2 | 2 |

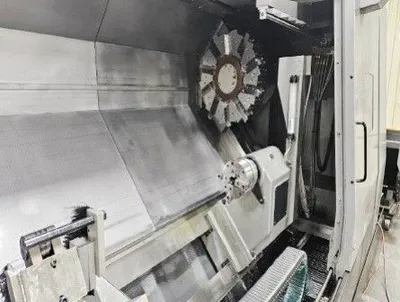

| Turret Configuration 1 | 10 | 10 |
| Tailstock Quill Diameter | 4.7" | 119.38 mm |
| Tailstock Taper | MT 6 | MT 6 |
| Tailstock Quill Travel | 4.7" | 119.38 mm |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 122" | 3,098.8 mm |
| # Axis | 2 | 2 |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (FANUC OI TD CNC COLOR CONTROL) | CNC (FANUC OI TD CNC COLOR CONTROL) |
| Weight | 35,5000 | 35,5000 |

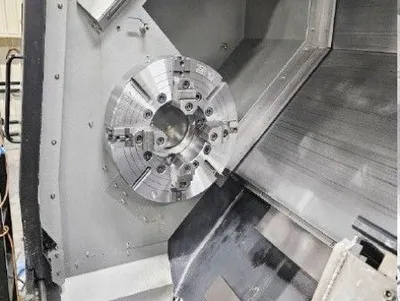

24" 4 -JAW MANUAL CHUCK

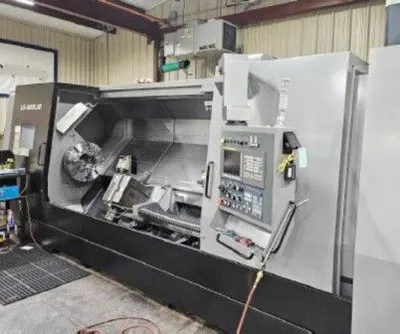

FANUC 0I TD CNC COLOR CONTROL
SMW PROGRAMMABLE OPEN & CLOSE STEADY REST 13.7" CAPACITY
AUTO PIN BASE FOR DRAG ALONG
PROGRAMMABLE TAILSTOCK
PROGRAMMABLE STEADY PREPERATION

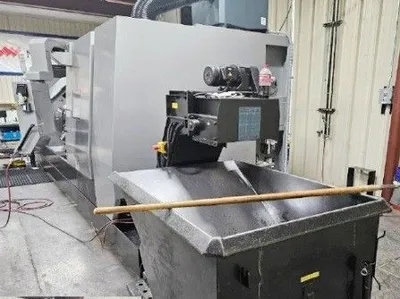

CHIP CONVEYOR
