DOOSAN VT 1100 CNC VERTICAL TURNING LATHE

DOOSAN VT 1100 CNC VERTICAL TURNING LATHE

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Boring Mills Vertical CNC
Manufacturer:
DOOSAN
Model:
VT 1100
Year:
2016
Stock #:
10083
Status:
For Sale

Description

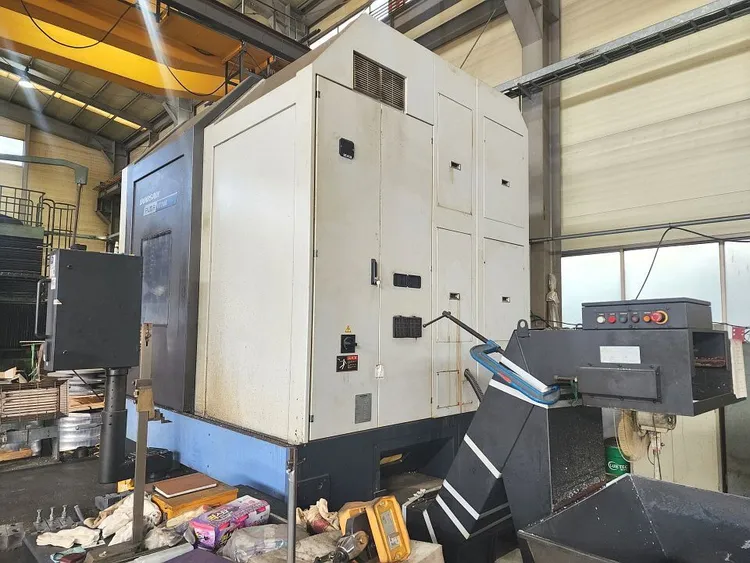

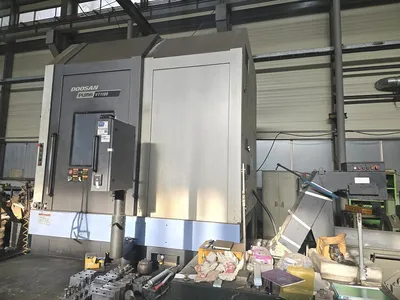

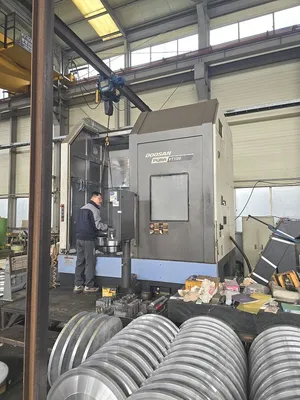

DOOSAN VT 1100 CNC Vertical Turning Lathe, 2016 model. Equipped with FANUC I Series Control, 32"
3-Jaw Hydraulic and Chip Conveyor. Table Diameter 32", Load Cap: 4400lbs, Swing Diameter 53", Motor: 75 HP, 2 Ranges. Ideal for precision tasks.

Table Diameter32"812.8 mm
Table Load Capacity4,400 lb1,995.8 kg
Swing Diameter53"1,346.2 mm
Turning Height38.2"970.28 mm
Table Speed800 RPM800 RPM
Main Motor75 hp55.9 kW
Number Of Ranges22
X - Axis Travel22.8"579.12 mm
Z - Axis Travel39.37"1,000 mm
Rapid Traverse Rate - X787 ipm
Rapid Traverse Rate - Z787 in/min.20 m/min.
Turret Configuration12 station12 station
Machine Weight50,100 lb22,725 kg
ControlCNCCNC
Weight50000.0050000.00

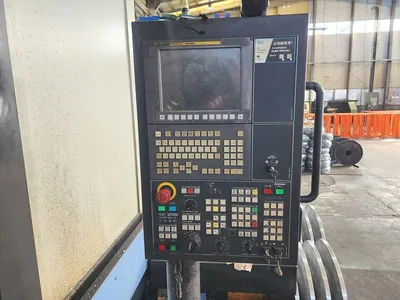

FANUC I SERIES CNC COLOR CONTROL
1280 M PROGRAM STORAGE
EMBEDDED ETHERNET
CHUCK CLAMP CONFIRMATION
32" 3 JAW HYDRAULIC CHUCK
DUAL PRESSURE CHUCKING
64 TOOL OFFSETS
8 PAIRS WOORK COORDINATES
CHIP CONVEYOR
