| Swing Over Bed | 29.2" | 741.68 mm |
| Turning Diameter | 14.4" | 365.76 mm |
| Turning Length | 27.7" | 703.58 mm |
| Chuck Size 1 | 10" | 254 mm |
| Spindle Nose 1 | A2 - 8 | A2 - 8 |
| Spindle Bore Diameter 1 | 3.5" | 88.9 mm |
| Bar Capacity 1 | 30" | 762 mm |
| Spindle Speeds 1 | 4,000 RPM | 4,000 RPM |
| Spindle Horsepower 1 | 25 hp | 18.6 kW |
| Chuck Size 2 | 6" | 152.4 mm |
| Spindle Nose 2 | A2 - 5 | A2 - 5 |
| Spindle Speeds 2 | 6,000 RPM | 6,000 RPM |
| Spindle Horsepower 2 | 15 hp | 11.2 kW |
| X1 - Axis Travel | 10.2" | 259.08 mm |
| Z1 - Axis Travel | 31.3" | 795.02 mm |
| Y1 - Axis Travel | 4" | 101.6 mm |
| C - Axis Indexing 1 | 0.00 | 0.00 |
| C - Axis Indexing 2 | 0.00 | 0.00 |
| W - Axis Travel Sub Spindle | 28.9" | 734.06 mm |
| Rapid Traverse Rate - X1 | 1181 ipm | |
| Rapid Traverse Rate - Z1 | 1181 ipm | |
| Rapid Traverse Rate - Y1 | 393 ipm | |

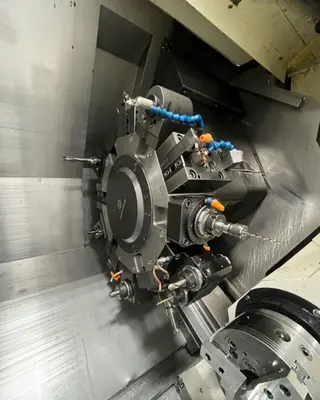

| Turret Tool Positions 1 | 12 station | 12 station |
| Turret Rotary Tool Speeds 1 | 10,000 RPM | 10,000 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp | 5.6 kW |
| Machine Weight | 13,992 lb | 6,346.7 kg |
| Control | CNC (CELOS ERGOLINE TOUCH CNC COLOR CONTROL) | CNC (CELOS ERGOLINE TOUCH CNC COLOR CONTROL) |
| Weight | 0.00 | 0.00 |
Maximun Turning Length: 27.76"
X - Axis Travel: 10.24"
Y - Axis Travel: + / - 2.0''
Z - Axis Travel: 31.3"
C - Axis Travel Main / Sub : .001 Deg.
Spindle Speeds No 1, No 2: 4000 / 6000 RPM
Spindle Nose No 1, No 2: A2-8 / A2-5
Bar Work Capacity No. 1, No 2: 3.1"/1.6''
Main Spindle Motor: 35 HP Option
Sub Spindle Motor: 15 HP
Milling Spindle RPM: 10,000 RPM
Horse Power For Tool Spindle: 7.5 HP
Turret Configuration: 12
Machine Weight: 13,992 LBS.
Swing Over Bed: 36.2"
Swing Over Front Cover: 23.2"
Swing Over Cross Slide: 29.2"
B - Axis Travel Sub Spindle: 28.9"
Rapid Traverse Rate X, Y, Z, B: 1181, 393, 1181, 1181 IPM
KITAGAWA 10" CHUCK ON MAIN / 6" KITAGAWA ON SUB
CHIP CONVEYOR
TOOL PRESETTER
PARTS CATCHER
AVAILABLE MANUALS

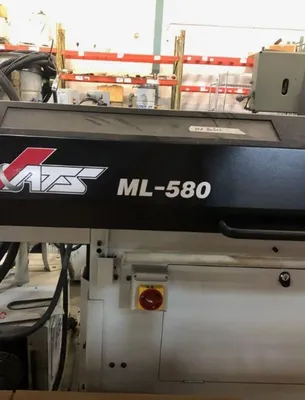

BARFEED INTERFACE
MAPPS PROGRAMING
HIGH PRESSURE COOLANT SYSTEM
CELOS M730UM WITH ERGOLINE TOUCH
(2) O.D. OFFSET MILLING HEADS
(1) O.D. MILLING HEAD
(3) I.D. MILLING HOLDERS
