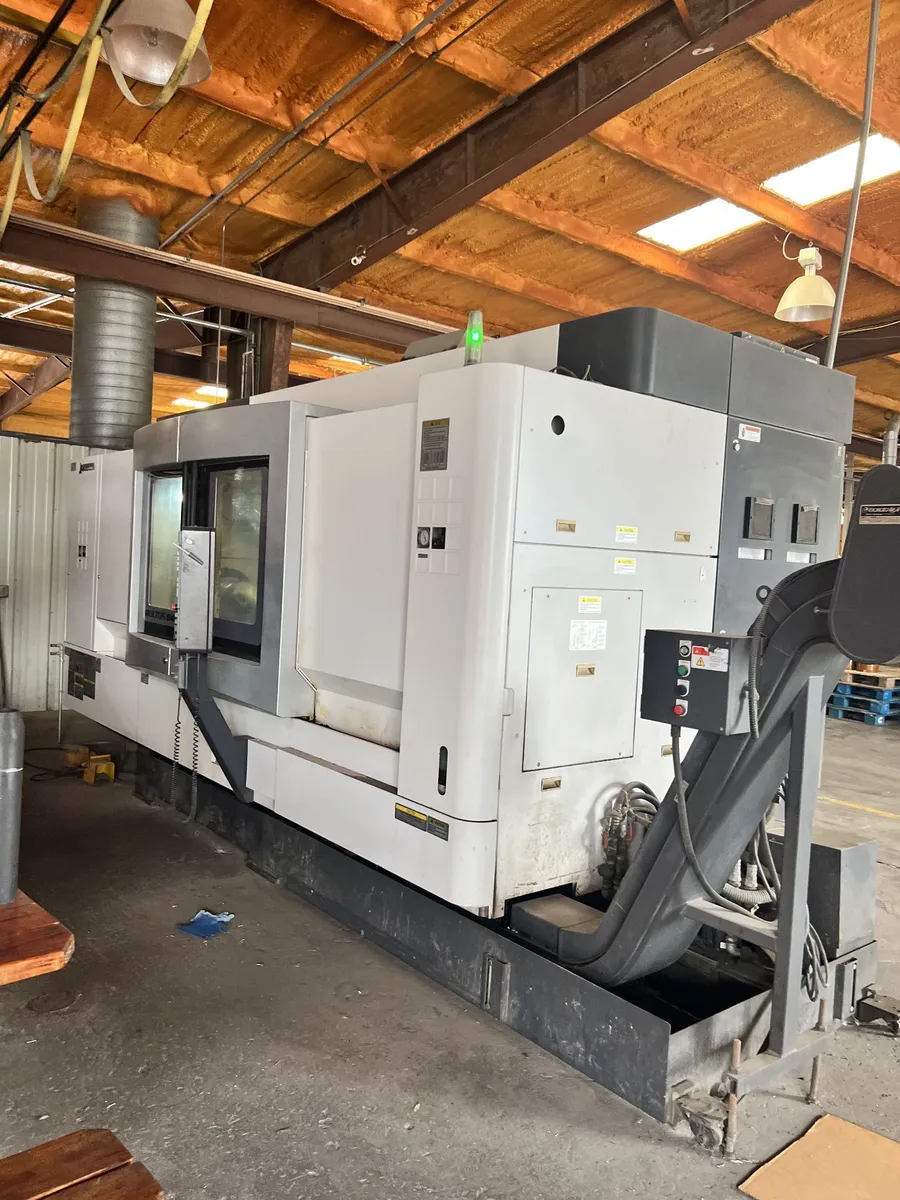

OKUMA MULTUS B400-II-BBW BIG BORE CNC MULTI-TASKING TURNING MILLING CENTER W/SUB SPINDLE & Y AXIS
Have one to sell?
ConditionUsed
1 available
2012 OKUMA MULTUS B400-II-BBW CNC multi-tasking center offers precision turning and milling with sub-spindle and Y-axis. Equipped with OSP-P300S CNC, dual 12" Schunk chucks, big bore option, 225° B-axis, and comprehensive tool management. Ideal for complex machining tasks with full B axis contouring capabilities.
OSP - P300S CNC COLOR CONTROL
(2) 12" SCHUNK CHUCKS MAIN AND REAR
HINGE TYPE CHIP CONVEYOR
SHOWER COOLANT TYPE A
I/O VARIABLE USER TASK II
RAPID TRAVERSE OVERRIDE SWITCH
SPARE M-CODES 4 SETS
TOOL OFFSET 200 SETS
HYDRAULIC CHUCK / AIR CHUCK SWITCHABLE
CUSTOM TOOL LIFE MANAGEMENT
MACMAN-NET
SLANT YAXIS, Y AXIS BARIER, HI-G CONTROL, SUB SPINDLE
BAXIS .OO1 DEG. BAXIS CONTROL, B AXIS COMP
PROFILE GENERATE, PLANE CONVERSION, SYNC TAP. HELICAL, SLANT CUT
TOUCH SETTER, TOUCH SENSOR, Y GAUGING
BOTH SPINDLES EQUIP WITH TOOL SETTERS ABOVE
LAP 4, NOSE R 2B, USER TASK 2, EXP. AUTO CHAMF, PROGRAM HELP, HELP, 3D ANIMATION, ANIMATION
HI -CUT PRO, HI- G CONTROL, ADMAC 3D VIRTUAL MONITOR
CHUCK GRASP CONFIRM, COOLANT THRU MILL HEAD, SPINDLE CHILLER
MIST BLASTER SYSTEM

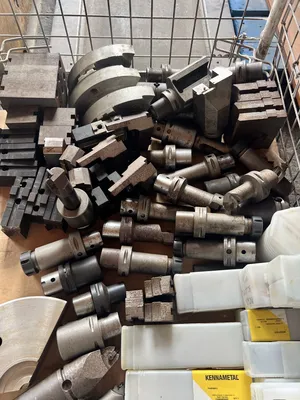

(2) TOOLING CARTS OF TOOLING
HELICAL CONTOUR MILLING (C-AXIS, X-C-Z) MSB
HELICAL MILLING (X-Y-Z) MSB
COLLISION AVOIDANCE SYSTEM

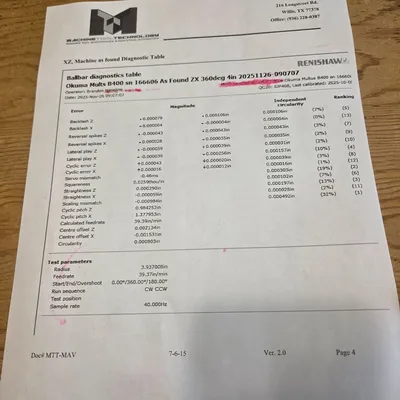

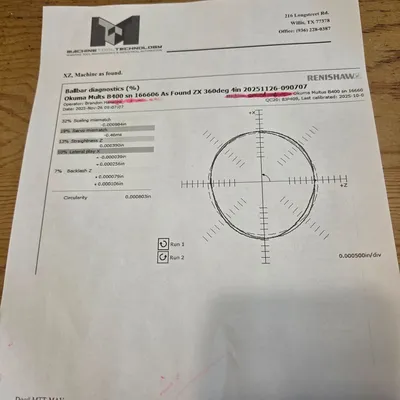

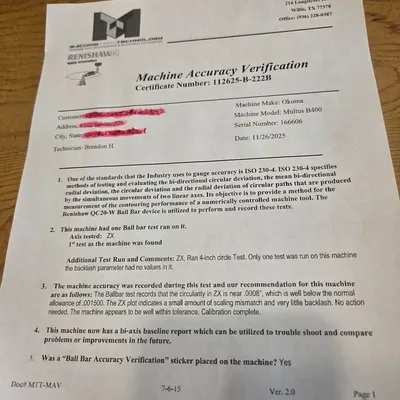

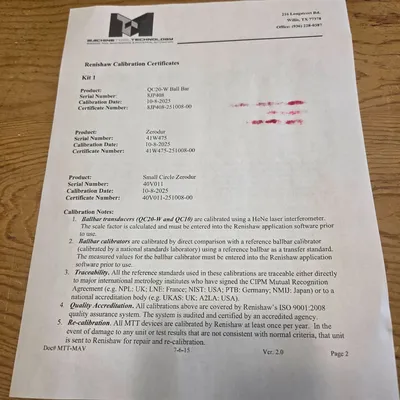

BALL BAR TESTS ARE AVAILABLE FOR 2 WEEKS AGO
2012 OKUMA MULTUS B400-II-BBW CNC multi-tasking center offers precision turning and milling with sub-spindle and Y-axis. Equipped with OSP-P300S CNC, dual 12" Schunk chucks, big bore option, 225° B-axis, and comprehensive tool management. Ideal for complex machining tasks with full B axis contouring capabilities.
Imperial
| Swing Over Bed | 27.95" |
| Turning Diameter | 27.95" |
| Turning Length | 59.06" |
| Distance Between Spindles | 63.2" |
| Chuck Size 1 | 12" |
| Spindle Nose 1 | A2 - 11 |
| Spindle Bore Diameter 1 | 4.33" |
| Bar Capacity 1 | 3.8" |
| Spindle Speeds 1 | 2,800 RPM |
| Spindle Horsepower 1 | 40 hp |
| Chuck Size 2 | 12" |
| Spindle Nose 2 | A2 - 11 |
| Spindle Bore Diameter 2 | 4.33" |
| Spindle Speeds 2 | 2,800 RPM |
| Spindle Horsepower 2 | 40 hp |
| B - Axis Head Travel | 225 DEGREE |
| B - Axis Head Indexing | 0.001 |
| B - Axis Milling Spindle Taper | CAPTO C6 |
| B - Axis Milling Spindle Speed | 6,000 RPM |
| B - Axis Milling Spindle Horse Power | 18.7 hp |
| ATC For Milling Spindle | 80 |
| Tool Diameter | 3.54", 5.12" |
| Tool Length | 15.75" |
| Tool Weight | 22 lb |
| X1 - Axis Travel | 27.17" |
| Z1 - Axis Travel | 60.83" |
| Y1 - Axis Travel | 9.06" |
| C - Axis Indexing 1 | 0.001 |
| C - Axis Indexing 2 | 0.001 |
| W - Axis Travel Sub Spindle | 61.02" |
| Rapid Traverse Rate - X1 | 1575 ipm |
| Rapid Traverse Rate - Z1 | 1575 ipm |
| Rapid Traverse Rate - Y1 | 1024 ipm |
| Machine Weight | 33,000 lb |
| Control | CNC (OSP P300S CNC COLOR CONTROL) |
| Weight | 17600.00 |
OSP - P300S CNC COLOR CONTROL
(2) 12" SCHUNK CHUCKS MAIN AND REAR
HINGE TYPE CHIP CONVEYOR
SHOWER COOLANT TYPE A
I/O VARIABLE USER TASK II
RAPID TRAVERSE OVERRIDE SWITCH
SPARE M-CODES 4 SETS
TOOL OFFSET 200 SETS
HYDRAULIC CHUCK / AIR CHUCK SWITCHABLE
CUSTOM TOOL LIFE MANAGEMENT
MACMAN-NET
SLANT YAXIS, Y AXIS BARIER, HI-G CONTROL, SUB SPINDLE
BAXIS .OO1 DEG. BAXIS CONTROL, B AXIS COMP
PROFILE GENERATE, PLANE CONVERSION, SYNC TAP. HELICAL, SLANT CUT
TOUCH SETTER, TOUCH SENSOR, Y GAUGING
BOTH SPINDLES EQUIP WITH TOOL SETTERS ABOVE
LAP 4, NOSE R 2B, USER TASK 2, EXP. AUTO CHAMF, PROGRAM HELP, HELP, 3D ANIMATION, ANIMATION
HI -CUT PRO, HI- G CONTROL, ADMAC 3D VIRTUAL MONITOR
CHUCK GRASP CONFIRM, COOLANT THRU MILL HEAD, SPINDLE CHILLER
MIST BLASTER SYSTEM
(2) TOOLING CARTS OF TOOLING
HELICAL CONTOUR MILLING (C-AXIS, X-C-Z) MSB
HELICAL MILLING (X-Y-Z) MSB
COLLISION AVOIDANCE SYSTEM
BALL BAR TESTS ARE AVAILABLE FOR 2 WEEKS AGO
