| Number Of Tables / Pallets | 1 | 1 |

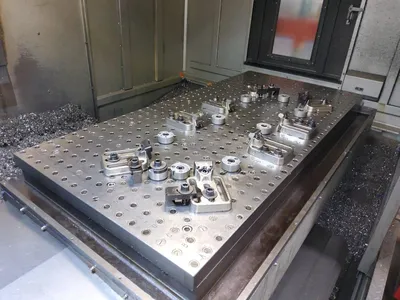

| Table-L | 67" | 1,701.8 mm |
| Table-W | 31.5" | 800.1 mm |
| Weight on Table | 4,409 lb | 1,999.9 kg |
| X - Axis Travel | 63" | 1,600.2 mm |
| Y - Axis Travel | 31.5" | 800.1 mm |
| Z - Axis Travel | 31.5" | 800.1 mm |
| Rapid Traverse Rate - X | 787 in/min. | 20 m/min. |
| Rapid Traverse Rate - Y | 787 in/min. | 20 m/min. |
| Rapid Traverse Rate - Z | 787 in/min. | 20 m/min. |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Spindle Taper | 50 | 50 |
| Number of Gear Ranges | 2 | 2 |
| Main Motor | 25 hp | 18.6 kW |
| Machine Weight | 33,000 lb | 14,968.6 kg |
| Automatic Tool Changer | 30 | 30 |
| Control | CNC (FANUC 18I-MB CNC COLOR CONTROL) | CNC (FANUC 18I-MB CNC COLOR CONTROL) |
| Weight | 30864.00 | 30864.00 |
ALL AVAILABLE MANUALS

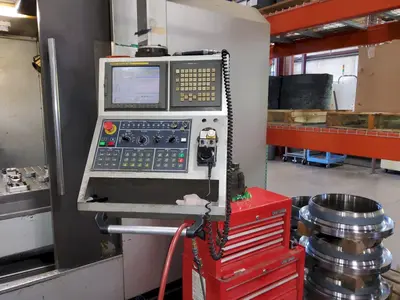

FANUC 18IMB CNC COLOR CONTROL
MANUAL GUIDE I CONVERSATIONAL PROGRAMMING
COOLANT THRU THE SPINDLE
PREWIRED FOR 4TH AXIS
TOOL OFFSETS 200 PAIRS
POLAR COORDIANTE/CYLINDRICAL/HELICAL INTERPOLATION
CUSTOM MACRO B
GRAPHIC FUNCTION
DATA SERVER FUNTION
AI NANO CONTOUR CONTROL
AUTOMATIC CORNER DECELERATION
HANDWHEEL INTERRUPTION
PITCH ERROR COMP., CUSTOM MACRO B, CHAMFERRING/ CORNER R, INCH/METRIC SELECTION
MACRO EXECUTOR, SCALING,COORDINATE SYSTEM ROTATION,PECK DRILLING CYCLE
TOOL LIFE MANAGEMENT, CUTTER COMP C, 1280M PART PROGRAM STORAGE
CHIP CONVEYOR
This equipment is currently unavailable. Similar equipment available now is shown below.
