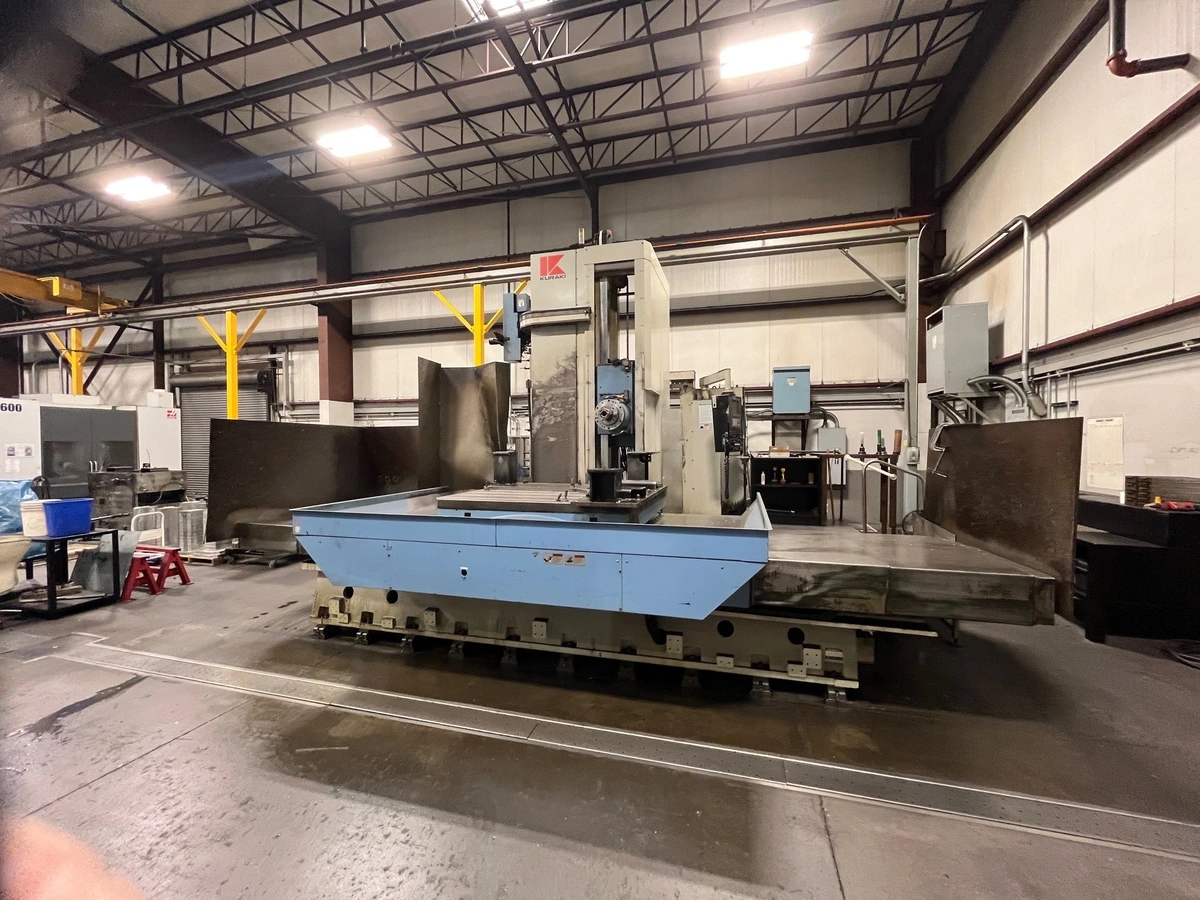

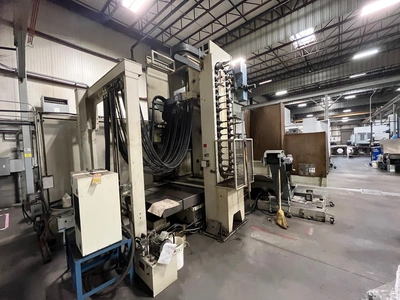

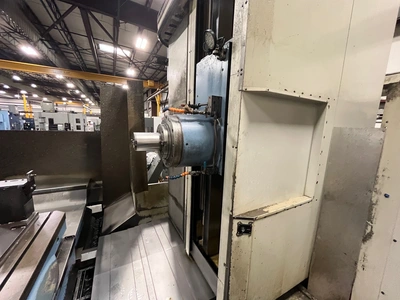

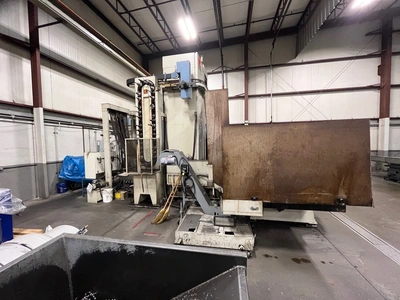

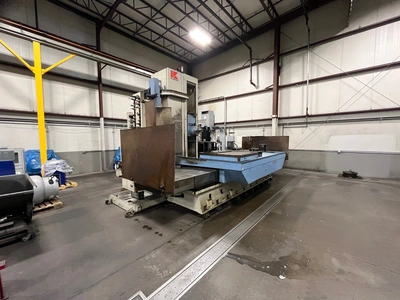

Used KURAKI KBT-13EA | Boring Mills Horizontal Table Type

Name: Used CNC LLC
Address: 11926 Oak Creek Pkwy,, Huntley, IL, 60142, US

Have one to sell?

ConditionUsed

Quantity

1 available

Have one to sell?

Overview

Type:

Boring Mills Horizontal Table Type

Manufacturer:

Model:

KBT-13EA

Stock #:

10095

Status:

For Sale

ImperialMetric

Table Size - L	86.61"	2,199.9 mm
Table Size - W	70.87"	1,800.1 mm
Table Capacity	44,092 lb	19,999.8 kg
Table Indexing	.001 Degrees	.001 Degrees
Spindle Diameter	5.1"	129.54 mm
Spindle Taper	#50 CT	#50 CT
Spindle Speed	4,000 RPM	4,000 RPM
Main Motor	60 hp	44.7 kW
X - Axis Travel	157.4"	3,998 mm
Y - Axis Travel	90.5"	2,298.7 mm
Z - Axis Travel	51.2"	1,300.5 mm
W - Axis Travel	25.6"	650.24 mm
Automatic Tool Changer Capacity	40	40
Tool Diameter	4.92" / 9.45"	4.92" / 9.45"
Max Tool Length	23.62"	599.95 mm
Max Tool Weight	66 lb	29.9 kg
Machine Weight	81,400 lb	36,922.5 kg

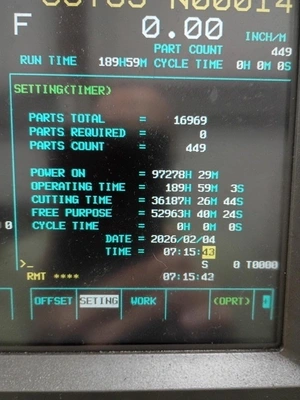

FANUC 16IM CNC CONTROL
CHIP CONVEYOR
