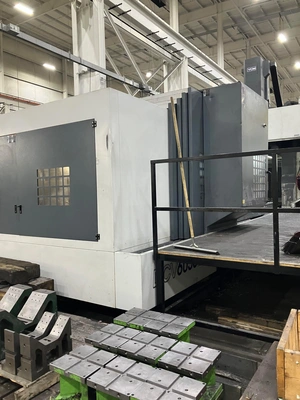

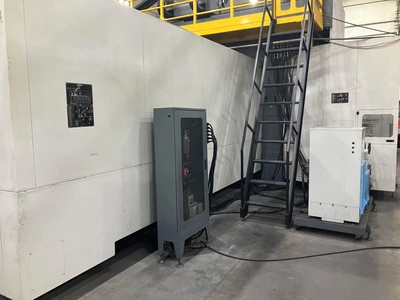

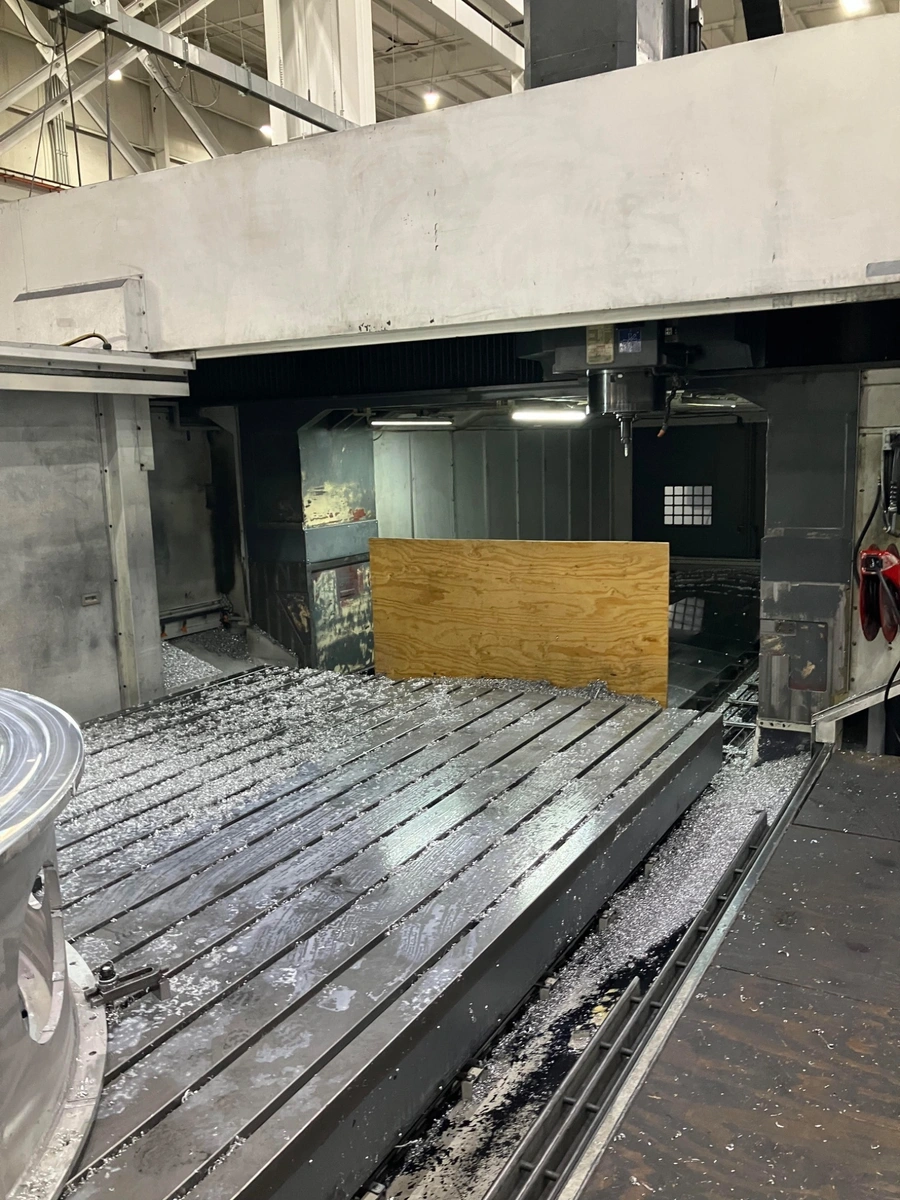

YCM DCV 6030BF CNC LARGE CAPACITY 5 FACE BRIDGE TYPE MACHINING CENTER

YCM DCV 6030BF CNC LARGE CAPACITY 5 FACE BRIDGE TYPE MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
VMC Gantry / Bridge Type CNC
Manufacturer:
YCM
Model:
DCV 6030 BF
Year:
2012
Stock #:
10097
Status:
For Sale

Description

YCM DCV 6030BF CNC, a 2012 model, offers large capacity and 5-face machining as a VMC gantry/bridge type. Ideal for complex projects demanding precision and versatility. Perfect for enhancing your production capabilities.

Number Of Tables / Pallets11

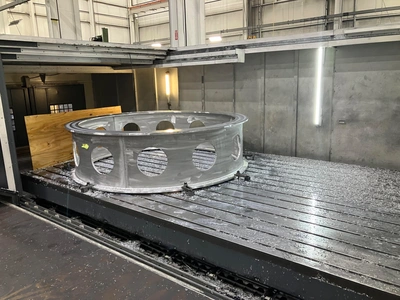

Table Size - L236.2"5,999.5 mm
Table Size - W118.1"2,999.7 mm
Weight on Table55,110 lb24,997.5 kg
Distance Between Columns122"3,098.8 mm
Spindle Nose to Table Top10.63" - 50.63"10.63" - 50.63"
X - Axis Travel220"5,588 mm
Y - Axis Travel120"3,048 mm
Z - Axis Travel40"1,016 mm
Rapid Traverse Rate - X394 in/min.10 m/min.
Rapid Traverse Rate - Y394 ipm
Rapid Traverse Rate - Z394 ipm
Spindle Speed6,000 RPM6,000 RPM
Spindle TaperCT #50CT #50
Number Of Gear Ranges22
Automatic Tool Changer6060
Machine Weight153,000 lb69,399.7 kg
Weight153000.00153000.00

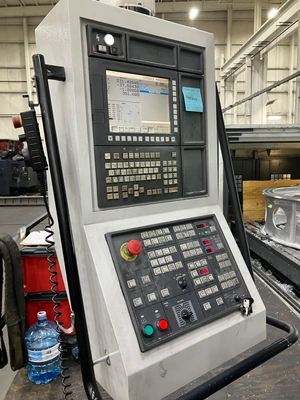

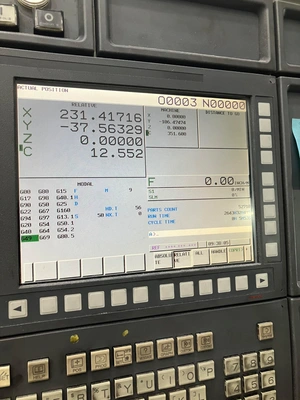

FANUC 200FB CNC CONTROL

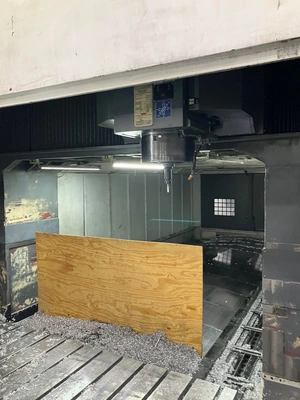

HIGH POWER HIGH TORQUE OUTPUT SPINDLE
TOP COVER
DATA SERVER 2GB
HIGH SPEED SKIP FUNCTION
TRANSFORMER
HEIDENHAIN SCALE FEEDBACK X,Y,Z AXIS
300 PSI COOLANT THRU SPINDLE

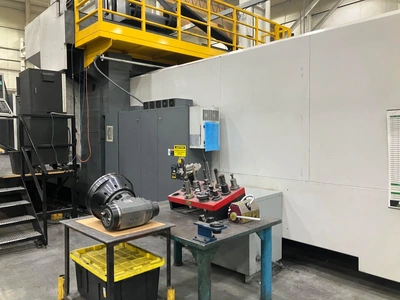

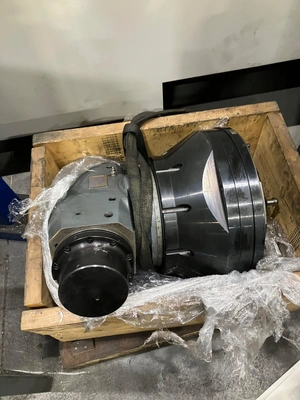

90 DEGREE ANGLE HEAD
AUTO HEAD CHANGING (AHC)
MARPOSS TOOL GAUGE MEASUREMENT
RENISHAW TOUCH PROBE

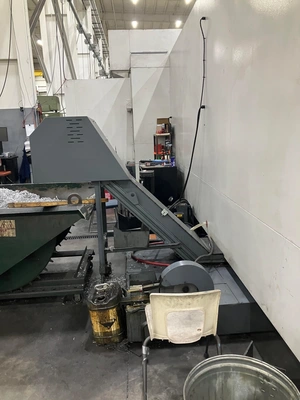

CHIP CONVEYOR

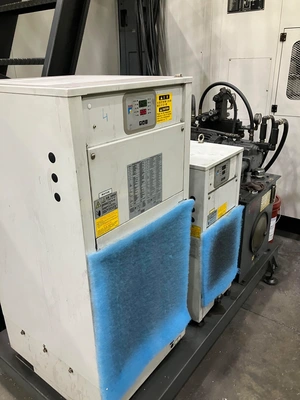

SPINDLE CHILLER
