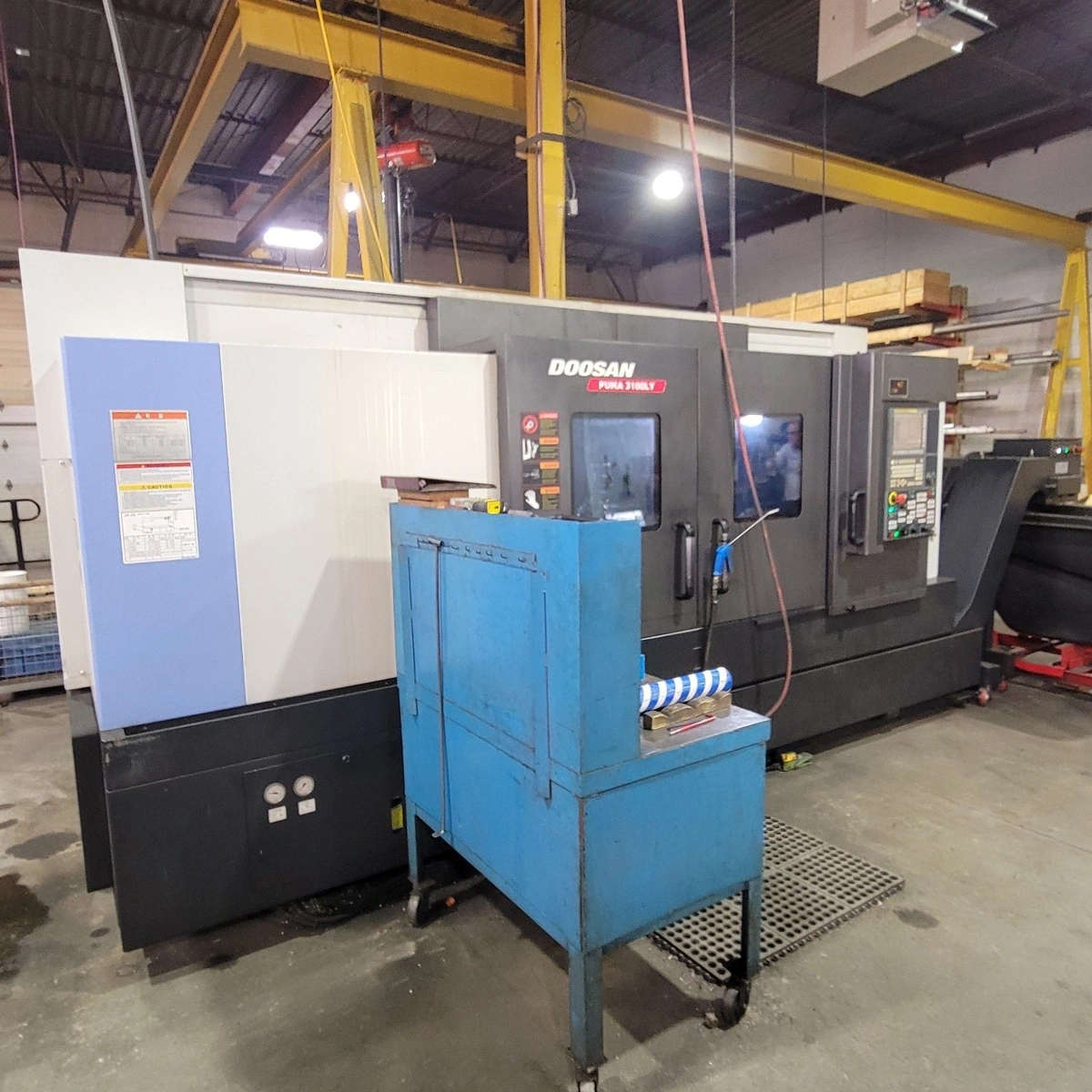

DOOSAN PUMA 3100LY CNC MULTI-TASKING TURNING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, Y-Axis / Multi Axis
Manufacturer:
DOOSAN
Model:
PUMA 3100LY
Year:
2015
Stock #:
10099
Status:
For Sale

Description

Doosan Puma 3100LY CNC multi-tasking turning center, 2015 model, used condition. Features Y-Axis for enhanced versatility and capability. Ideal for precision machining tasks. Enhance your production efficiency with this advanced CNC lathe.

Swing Over Bed33.5"850.9 mm
Turning Diameter26.4"670.56 mm
Turning Length50.6"1,285.2 mm
Distance Between Centers53.1"1,348.7 mm
Chuck Size 112"304.8 mm
Spindle Nose 1A2-11A2-11
Spindle Bore Diameter 14.5"114.3 mm
Bar Capacity 14.1"104.14 mm
Spindle Speeds 12,800 RPM2,800 RPM
Spindle Horsepower 130 hp22.4 kW
X1 - Axis Travel11.5"292.1 mm
Z1 - Axis Travel51"1,295.4 mm
Y1 - Axis Travel5.12"130.05 mm
C - Axis Indexing 10.000.00
Rapid Traverse Rate - X11181 ipm
Rapid Traverse Rate - Z11181 ipm
Rapid Traverse Rate - Y1393 ipm

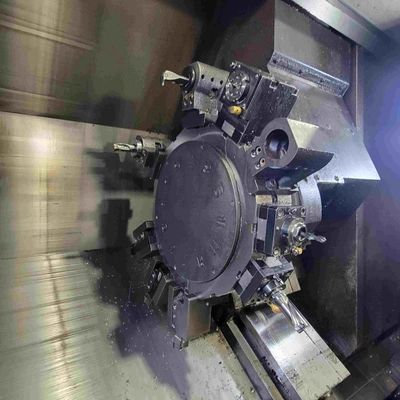

Turret Tool Positions 112 station12 station
Turret Rotary Tool Speeds 15,000 RPM5,000 RPM
Turret Rotary Tool Horse Power 110 hp7.5 kW

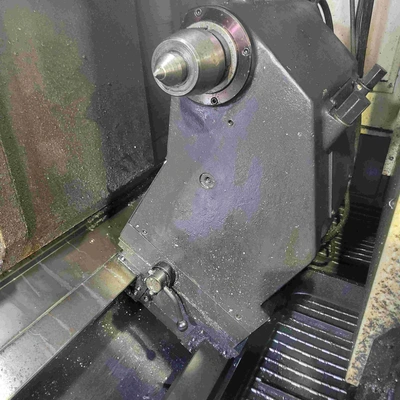

Tailstock Quill Diameter4.7"119.38 mm
Tailstock TaperMT 5MT 5
Tailstock Quill Travel4.7"119.38 mm
Programmable Tailstock'Yes''Yes'
Weight17700.0017700.00

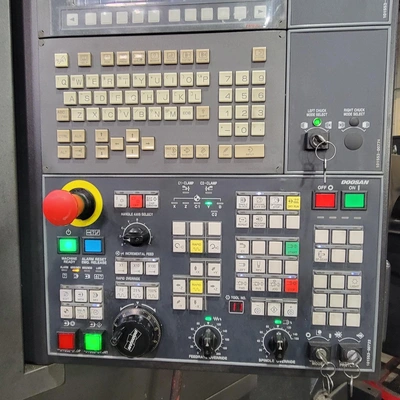

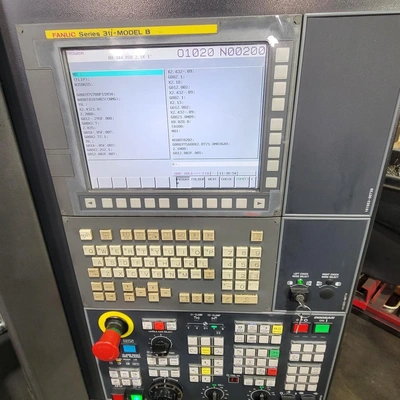

FANUC 31i-MB CNC CONTROLLER
5 MILLING HOLDERS - STATIC HOLDERS
TOOL PRESETTER
CHIP CONVEYOR
12" HYDRAULIC CHUCK
