| Swing Over Bed | 35.4" | 899.16 mm |
| Machining Length | 44.4" | 1,127.8 mm |
| Distance Between Centers | 46.4" | 1,178.6 mm |
| Turning Diameter, Shaft Diameter | 27.2" | 690.88 mm |
| Chuck Size 1 | 24" | 609.6 mm |
| Spindle Nose 1 | A1 - 15 | A1 - 15 |
| Spindle Bore Diameter 1 | 7.12" | 180.85 mm |
| Spindle Bar Capacity 1 | 66.25" | 1,682.7 mm |
| Spindle Speeds 1 | 1,500 RPM | 1,500 RPM |
| Spindle Horsepower 1 | 60 hp | 44.7 kW |
| X1 - Axis Travel | 14.3" | 363.22 mm |
| Z1 - Axis Travel | 44.39" | 1,127.5 mm |
| Rapid Traverse Rate - X1 | 630 in/min. | 266.7 mm/sec. |
| Rapid Traverse Rate - Z1 | 790 in/min. | 334.4 mm/sec. |
| Spindle Torque | 2978 | 2978 |
| Gear Ranges | 2 | 2 |
| Turret Configuration 1 | 12 | 12 |
| Tailstock Quill Diameter | 4.7" | 119.38 mm |
| Tailstock Taper | MT 6 | MT 6 |
| Tailstock Quill Travel | 4.7" | 119.38 mm |
| Programmable Tailstock | YES | YES |
| # Axis | 2 | 2 |
| Bar Capacity | 6.6" | 167.64 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (DOOSAN FANUC SERIES I CNC CONTROL) | CNC (DOOSAN FANUC SERIES I CNC CONTROL) |
| Weight | 23,369 | 23,369 |

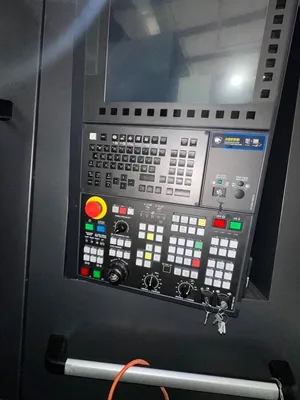

FANUC I SERIES CNC COLOR CONTROL
MANUAL GUIDE I
PROGRAMMABLE TAILSTOCK
TOOL SETTER PROBE
24" 3-JAW HYDRAULIC CHUCK WITH 6.625" THRU HOLE
ALL AVAILABLE MANUALS
ALL AVAILABLE TOOLING
