DOOSAN MYNX 5400/50 CNC VERTICAL MACHINING CENTER

DOOSAN MYNX 5400/50 CNC VERTICAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
DOOSAN
Model:
MYNX 5400/50
Year:
2012
Stock #:
10101
Status:
For Sale

Description

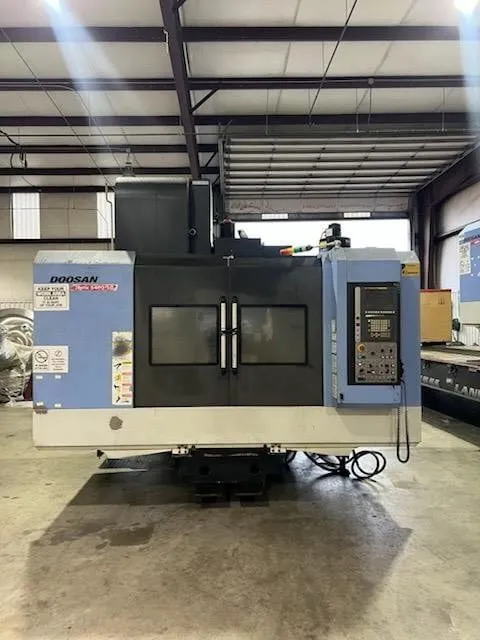

2012 DOOSAN MYNX 5400/50 CNC Vertical Machining Center in used condition. Equipped with FANUC I Series control, chip conveyor, and coolant thru spindle. Features include a 30 kW motor, 6,000 RPM spindle, and 24-tool changer. Machine weight: 15,873 lb.

Number Of Tables / Pallets11
Table-L47.1 mm1.8543"
Table-W21.3 mm0.8386"
Weight on Table2,200 lb997.9 kg
Spindle Nose to Table Top7.9" - 28.7"7.9" - 28.7"
X - Axis Travel40.2 mm1.5827"
Y - Axis Travel21.3 mm0.8386"
Z - Axis Travel20.9 mm0.8228"
Rapid Traverse Rate - X1,181 in/min.30 m/min.
Rapid Traverse Rate - Y1,181 in/min.30 m/min.
Rapid Traverse Rate - Z1,181 in/min.30 m/min.
Spindle Speed6,000 RPM6,000 RPM
Spindle Taper5050
Main Motor30 kW40.2 hp
Automatic Tool Changer2424
Tool Diameter4.9" / 8.7"4.9" / 8.7"
Tool Length13.8"350.52 mm
Tool Weight33 lb15 kg
Machine Weight15,873 lb7,199.9 kg
ControlCNC (DOOSAN FANUC SERIES I CNC CONTROL)CNC (DOOSAN FANUC SERIES I CNC CONTROL)
Weight0.000.00

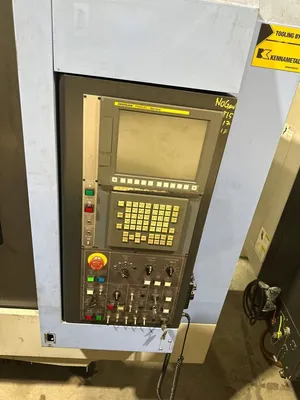

FANUC I SERIES CNC COLOR CONTROL
CHIP CONVEYOR
COOLANT THRU SPINDLE
BIG PLUS SPINDLE
