TOYODA FA 1050 CNC 5 AXIS TRUNNION STYLE HORIZONTAL MACHINING CENTER

TOYODA FA 1050 CNC 5 AXIS TRUNNION STYLE HORIZONTAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC 5 Axis Machines
Manufacturer:
TOYODA
Model:
FA 1050
Year:
2015
Stock #:
10102
Status:
For Sale

Description

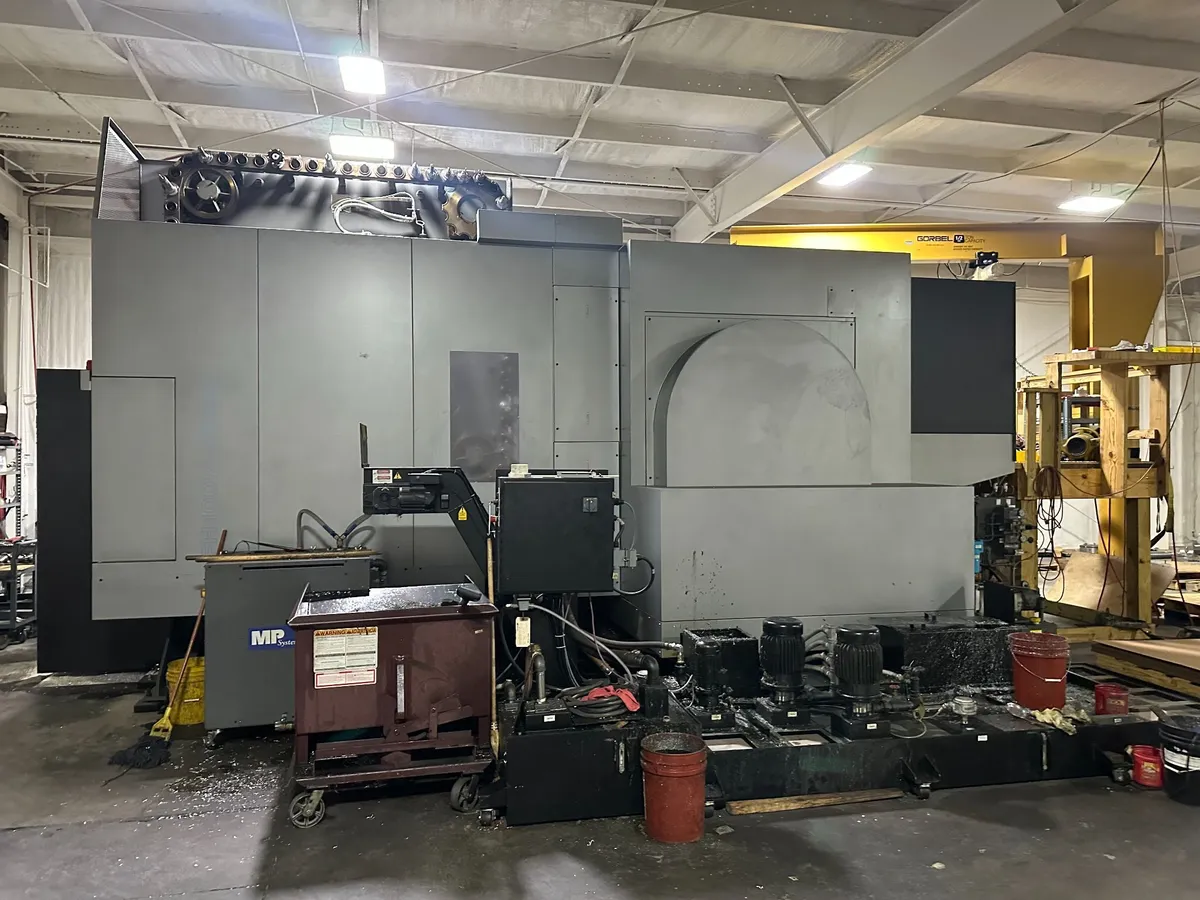

Used 2015 TOYODA FA 1050 CNC 5-axis trunnion style 2 PALLET horizontal machining center. FANUC 31-MB5, 5 AXIS color control, 41.3" x 41.3" pallet, 6,000 RPM spindle, 59.1" x 55.1" x 55.1" travel, and a 121 ATC. Renishaw probing with in machine inspection software Ideal for precision complex engineering demands.

Number Of Tables / Pallets22
Table Size - L41.3"1,049 mm
Table Size - W41.3"1,049 mm
Weight On Table4,400 lb1,995.8 kg
Main Spindle Horse Power60 hp44.7 kW
Main Spindle Speeds6,000 RPM6,000 RPM
Max Workpiece Diameter and Height52.2 X 42.552.2 X 42.5
Main Spindle Taper5050
X - Axis Travel59.1"1,501.1 mm
Y - Axis Travel55.1"1,399.5 mm
Z - Axis Travel45.2"1,148.1 mm
A - Axis Travel+ - 120 DEGREES+ - 120 DEGREES
C - Axis Travel Table Indexing360360
Rapid Traverse Rate - X590 in/min.15 m/min.
Rapid Traverse Rate - Y944 in/min.24 m/min.
Rapid Traverse Rate - Z944 in/min.24 m/min.
Automatic Tool Changer120120
Tool Diameter5.725.72
Tool Length26.59"675.39 mm
Tool Weight55 lb24.9 kg
Machine Weight112,435 lb50,999.7 kg
ControlCNC (FANUC 31 - MB5 CNC COLOR CONTROL)CNC (FANUC 31 - MB5 CNC COLOR CONTROL)
Weight0.000.00

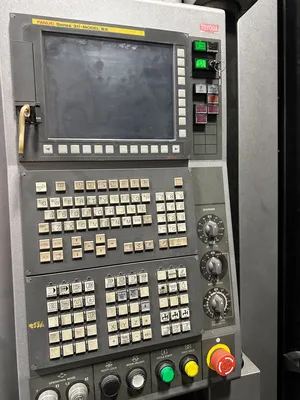

FANUC 31-MB5 CNC 5 AXIS COLOR CONTROL
EXTENDED MEMORY
RENISHAW OMP 60 OPTICAL WITH INSPECTION PLUS SOFTWARE AND EASYSET SOFTWARE
CORE COOLED DOUBLE LEAD BALL SCREWS
BIG PLUS SPINDLE
120 AUTO TOOL CHANGER
99 TOOL OFFSETS
THRU SPINDLE COOLANT 1000 PSI
LOADING STATION SPLASH GUN
OVERHEAD SHOWER COOLANT
SCRAPPER TYPE CHIP CONVEYOR WITH DRUM COOLANT FILTER
ALL AVAILABLE MANUALS
