| Number Of Tables / Pallets | 1 | 1 |
| Table Size - L | 24.8" | 629.92 mm |
| Table Size - W | 19.6" | 497.84 mm |
| Weight On Table | 660 lb | 299.4 kg |
| Main Spindle Horse Power | 28 hp | 20.9 kW |
| Spindle Nose To Table | 5.9" ~ 24.6" | 5.9" ~ 24.6" |
| Main Spindle Speeds | 20,000 RPM | 20,000 RPM |
| Main Spindle Taper | HSK A63 | HSK A63 |
| X - Axis Travel | 25.6" | 650.24 mm |
| Y - Axis Travel | 20.4" | 518.16 mm |
| Z - Axis Travel | 18.7" | 474.98 mm |
| A - Axis Travel | -5 DEGREES + 110 DEGREES | -5 DEGREES + 110 DEGREES |
| C - Axis Travel Table Indexing | 360 | 360 |
| Rapid Traverse Rate - X | 1,654 in/min. | 42 m/min. |
| Rapid Traverse Rate - Y | 1,654 in/min. | 42 m/min. |
| Rapid Traverse Rate - Z | 1,654 in/min. | 42 m/min. |
| Automatic Tool Changer | 60 | 60 |
| Tool Diameter | 3.14" ~ 5.11 " | 3.14" ~ 5.11 " |
| Tool Length | 11.8" | 299.72 mm |
| Tool Weight | 13.2 lb | 6 kg |
| Machine Weight | 11,500 lb | 5,216.3 kg |

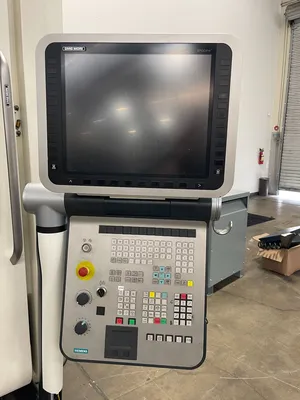

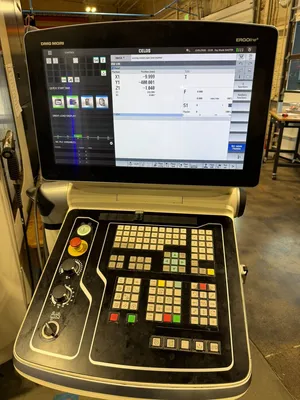

| Control | CNC (CELOS WITH SIEMENS 840D SI OPERATE CNC CONTROL) | CNC (CELOS WITH SIEMENS 840D SI OPERATE CNC CONTROL) |
| Weight | 0.00 | 0.00 |
CELOS WITH SIEMENS 840SI OPERATE CNC COLOR CONTRL
DMG CALIBRATION TOOL
3 D QUICK SET
TRANSFORMER
CHIP CONVEYOR
HAND HELD REMOTE PULSE GENERATOR
SPRAY GUN FOR SWARF REMOVAL
AIR BLAST THROUGH SPINDLE CENTER
COOLANT THRU SPINDLE 40 BAR

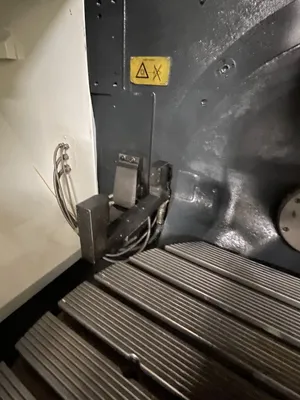

BLUM TOOL LENGTH LASER MEASUREMENT TOUCH PROBE
INFRARED MEASUREING PROBE PP60 OPTICAL
3D QUICKSET
ROTATING CLEAR VIEW WINDOW
