| Number Of Tables / Pallets | 1 | 1 |
| Table Size - L | 27.7" | 703.58 mm |
| Table Size - W | 19.7" | 500.38 mm |
| Weight On Table | 1,102 lb | 499.9 kg |
| Main Spindle Speeds | 18,000 RPM | 18,000 RPM |
| Main Spindle Taper | HSK A63 | HSK A63 |
| X - Axis Travel | 19.7" | 500.38 mm |
| Y - Axis Travel | 17.7" | 449.58 mm |
| Z - Axis Travel | 15.7" | 398.78 mm |
| A - Axis Travel | - 5 + 110 | - 5 + 110 |
| B - Axis Travel | 360 | 360 |
| Rapid Traverse Rate - X | 1,181 in/min. | 30 m/min. |
| Rapid Traverse Rate - Y | 1,181 in/min. | 30 m/min. |
| Rapid Traverse Rate - Z | 1,181 in/min. | 30 m/min. |
| Cutting Feed Rate | 1,181 in/min. | 30 m/min. |
| Automatic Tool Changer | 60 | 60 |
| Tool Diameter | 3.1, 5.1 | 3.1, 5.1 |
| Tool Length | 11.8" | 299.72 mm |
| Tool Weight | 13.2 lb | 6 kg |
| Machine Weight | 10,500 lb | 4,762.7 kg |
| Control | CNC (CELOS SIEMENS 840D CNC COLOR CONTROL) | CNC (CELOS SIEMENS 840D CNC COLOR CONTROL) |
| Weight | 0.00 | 0.00 |

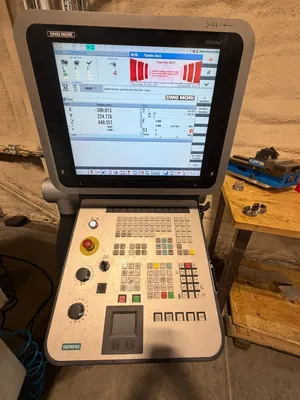

CELOS SIEMENS 840D CNC COLOR CONTROL
FULL 5 AXIS SIMULTANEOUS MILLING

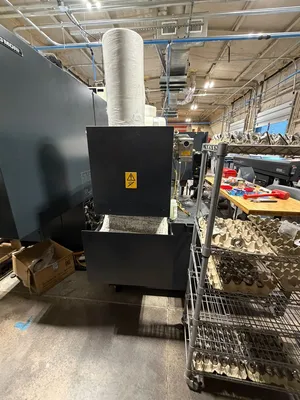

CHIP CONVEYOR
3D QUICKSET TOOL KIT
COOL JET HIGH PRESSURE THRU SPINDLE COOLANT

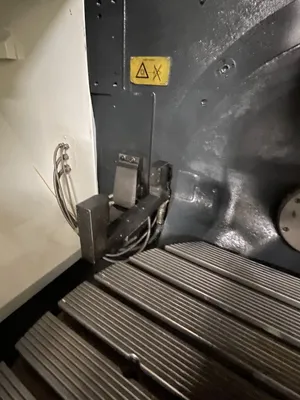

RENISHAW SPINDLE PROBE RMP-60
TOOL LENGTH MEASUREMENT & BREAKAGE DETECTION PROBE
SIEMENS 840D CNC ERGOLINE CNC CONTROL, 5 AXIS SIMULATANEOUS MACHINING
HIGH PRESSURE COOLANT AND FILTRATION SYSTEM
8600 CUTTING HOURS
