| Swing Over Bed | 29.5" | 749.3 mm |
| Turning Diameter | 16.5" | 419.1 mm |
| Turning Length | 82.9" | 2,105.7 mm |
| Chuck Size 1 | 12" | 304.8 mm |
| Spindle Nose 1 | A2-11 | A2-11 |
| Spindle Bore Diameter 1 | 4.5" | 114.3 mm |
| Bar Capacity 1 | 4" | 101.6 mm |
| Spindle Speeds 1 | 3,300 RPM | 3,300 RPM |
| Spindle Horsepower 1 | 40 hp | 29.8 kW |
| X1 - Axis Travel | 10.12" | 257.05 mm |
| Z1 - Axis Travel | 78.25" | 1,987.5 mm |
| Y1 - Axis Travel | -4" | -101.6 mm |
| C - Axis Indexing 1 | 0.00 | 0.00 |
| Rapid Traverse Rate - X1 | 1181 ipm | |
| Rapid Traverse Rate - Z1 | 1299 ipm | |
| Rapid Traverse Rate - Y1 | 59 ipm | |

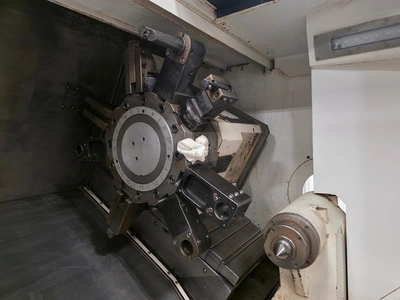

| Turret Tool Positions 1 | 12 station | 12 station |
| Turret Rotary Tool Speeds 1 | 4,000 RPM | 4,000 RPM |
| Turret Rotary Tool Horse Power 1 | 10 hp | 7.5 kW |
| Tailstock Quill Diameter | 3.94" | 100.08 mm |
| Tailstock Taper | MT 5 | MT 5 |
| Programmable Tailstock | 'Yes' | 'Yes' |
| Tailstock Travel | 73.4" | 73.4" |
| Control | CNC | CNC |
| Weight | 18,417 LBS. | 18,417 LBS. |

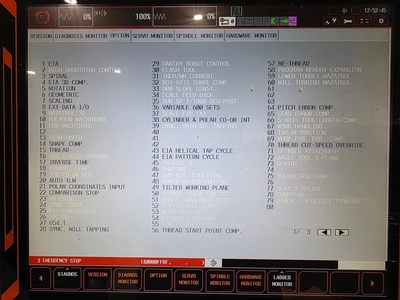

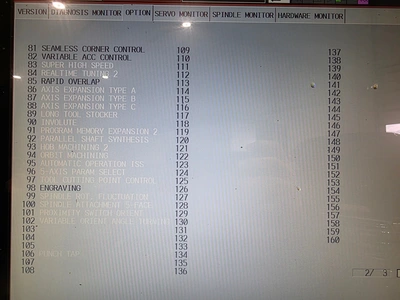

MAZATROL SMOOTH CNC CONTROL

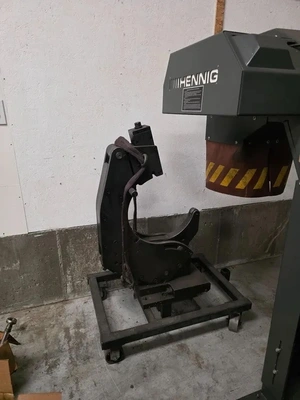

CHIP CONVEYOR
AUTO PRESETTER
MANUAL STEADY REST

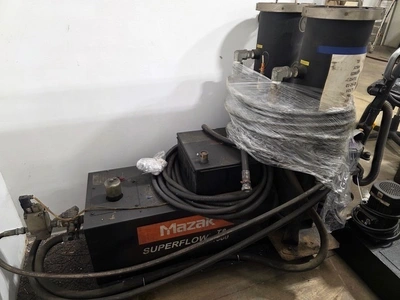

MAZAK SUPERFLOW T8 HIGH PRESSURE COOLANT UNIT

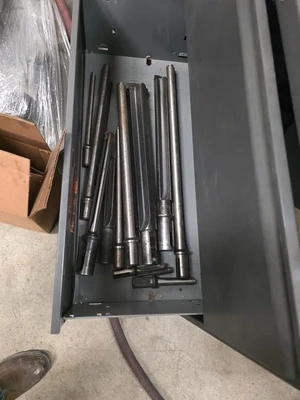

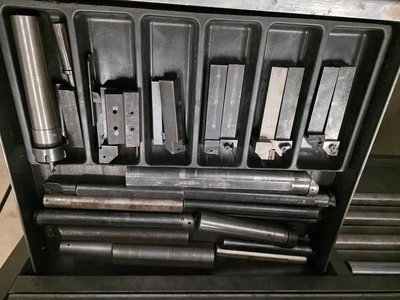

MISCELLANEOUS STATIC AND LIVE HOLDERS
