| Swing Over Bed | 30.7" | 779.78 mm |
| Turning Diameter | 15.9" | 403.86 mm |
| Turning Length | 20.47" | 519.94 mm |
| Distance Between Spindles | 23.2" | 589.28 mm |
| Chuck Size 1 | 8" | 203.2 mm |
| Spindle Nose 1 | A2 - 6 | A2 - 6 |
| Spindle Bore Diameter 1 | 3" | 76.2 mm |
| Bar Capacity 1 | 2.6" | 66.04 mm |
| Spindle Speeds 1 | 4,500 RPM | 4,500 RPM |
| Spindle Horsepower 1 | 25 hp | 18.6 kW |
| Chuck Size 2 | 6" | 152.4 mm |
| Spindle Nose 2 | A2 - 5 | A2 - 5 |
| Spindle Bore Diameter 2 | 2.44" | 61.976 mm |
| Bar Capacity 2 | 2" | 50.8 mm |
| Spindle Speeds 2 | 4,500 RPM | 4,500 RPM |
| X1 - Axis Travel | 10.2" | 259.08 mm |
| Z1 - Axis Travel | 23.2" | 589.28 mm |
| Y1 - Axis Travel | 4.13" | 104.9 mm |
| C - Axis Indexing 1 | 0.00 | 0.00 |
| C - Axis Indexing 2 | 0.00 | 0.00 |
| W - Axis Travel Sub Spindle | 23.2" | 589.28 mm |
| Rapid Traverse Rate - X1 | 1181 ipm | |
| Rapid Traverse Rate - Z1 | 1181 ipm | |
| Rapid Traverse Rate - Y1 | 787 ipm | |

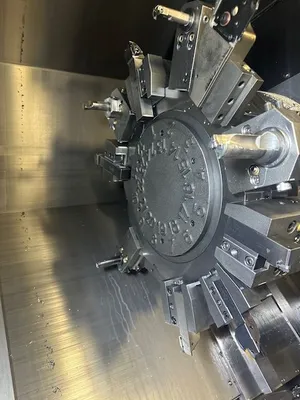

| Turret Tool Positions 1 | 24 station | 24 station |
| Turret Rotary Tool Speeds 1 | 5,000 RPM | 5,000 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp | 5.6 kW |
| Machine Weight | 13,500 lb | 6,123.5 kg |

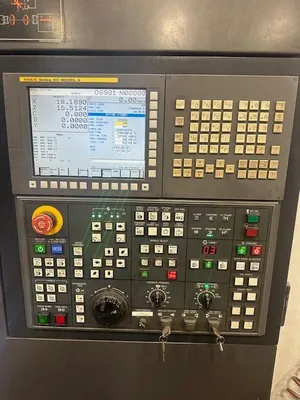

| Control | CNC (FANUC 31I-A CNC COLOR CONTROL) | CNC (FANUC 31I-A CNC COLOR CONTROL) |
| Weight | 0.00 | 0.00 |
FANUC 31I CNC COLOR CONTROL
TURBO SIDE DISCHARGE CHIP CONVEYOR
ALL AVAILABLE MANUALS
BARFEED INTERFACE
AUTO PARTS CATCHER

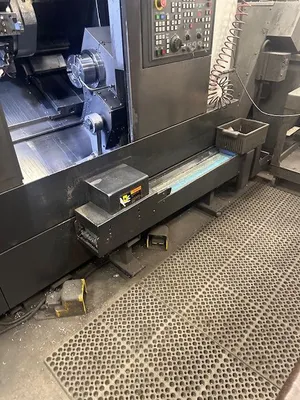

PARTS CONVEYOR W/ EXTRA BELT
LNS QUICK LOAD SERVER S-2 SHORT MAGAZINE BAR FEED SYSTEM
SPINDLE LINERS
TOOL SETTER
AUTO DOOR
(2) O.D. ROTARY HEADs, (1) I.D. ROTARY HEAD

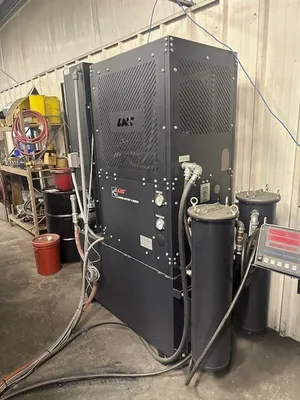

LNS CHIP BLASTER V SERIES HIGH PRESSURE THROUGH COOLANT
HARDINGE A6-S26-DLS DEAD LENGTH ADAPTION CHUCK THAT HAS AN S26 MASTER COLLET
8" HYDRAULIC 3 - JAW CHUCK
6" HYDRAULIC 3 -JAW CHUCK (RIGHT) W/WORK PIECE EJECTOR
MIST COLLECTOR
