DOOSAN NHP 5000 CNC 4 AXIS HORIZONTAL MACHINING CENTER WITH 12 LINEAR PALLET SYSTEM AND CONTROLLER

DOOSAN NHP 5000 CNC 4 AXIS HORIZONTAL MACHINING CENTER WITH 12 LINEAR PALLET SYSTEM AND CONTROLLER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
DOOSAN
Model:
NHP-5000
Year:
2019
Stock #:
10107
Status:
For Sale
Serial #:
MH0029-000186

Description

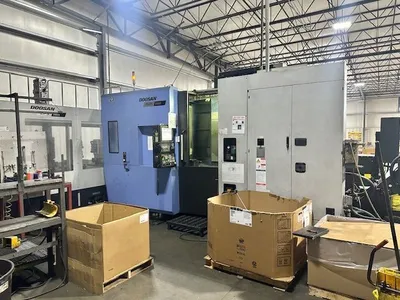

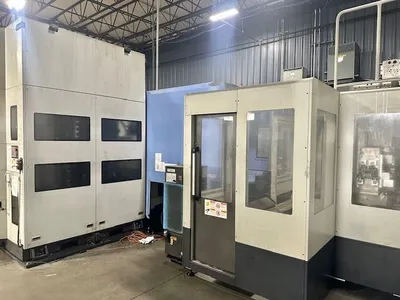

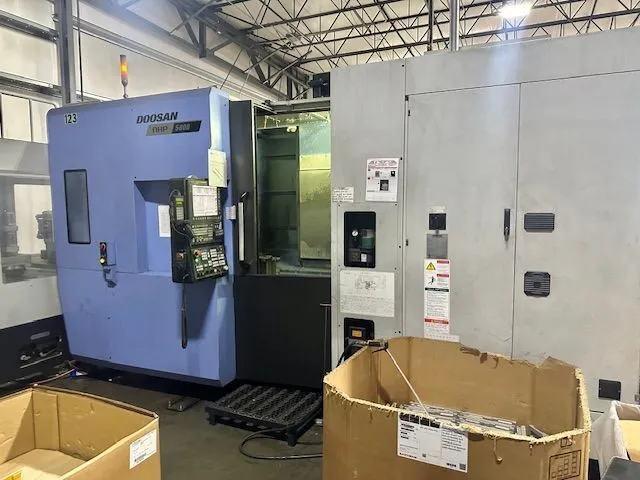

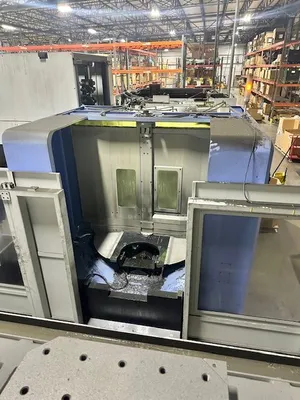

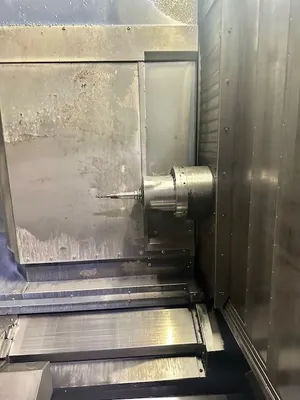

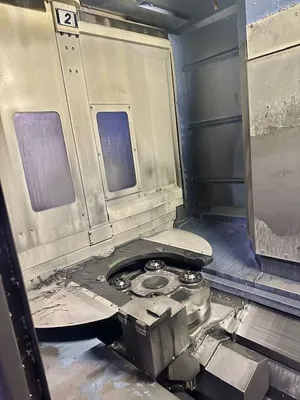

2019 Doosan NHP 5000 CNC 4-Axis Horizontal Machining Center with 12 linear pallet system and one loading station. Includes FANUC 31ib CNC control, thru spindle coolant, and tool length probe, part probe. Pallet size 19.7" square, 2,364 IPM rapid rates, 275 matrix tool changer. Max spindle speed 15,000 RPM.

Pallet Size - L19.7"500.38 mm
Pallet Size - W19.7"500.38 mm
Number of Pallets1212
Pallet Weight Capacity1,102 lb499.9 kg
Pallet Surface to Spindle Center3.1 ~ 29.13.1 ~ 29.1
Pallet Center To Spindle Gage Line3.9 ~ 38.63.9 ~ 38.6
Workpiece Dimensions31.5" x 39.4"31.5" x 39.4"
X - AxisTravel28.7"728.98 mm
Y - Axis Travel28.7"728.98 mm
Z - Axis Travel34.6"878.84 mm
B - Axis Travel.001.001
Rapid Traverse Rate - X2,364 in/min.60 m/min.
Rapid Traverse Rate - Y2364 ipm
Rapid Traverse Rate - Z2364 ipm
Cutting Feed Rate1,181 in/sec.1,799.8 m/min.
Spindle Speed15,000 RPM15,000 RPM
Spindle Taper4040
Number of Ranges22
Main Motor49.6 hp37 kW
Automatic Tool Changer6060
Tool Diameter3.0", 6,7"3.0", 6,7"
Tool Length21.7"551.18 mm
Tool Weight26.5 lb12 kg
Tool Change Time2 sec.2 sec.
Machine Weight25,352 lb11,499.5 kg
ControlCNC (FANUC 31I B CNC COLOR CONVERSATIONAL CONTROL)CNC (FANUC 31I B CNC COLOR CONVERSATIONAL CONTROL)

FANUC 31IB CNC COLOR CONTROL
80MG PART PROGRAM STORAGE (20,480 M)
NANNO SMOOTHING

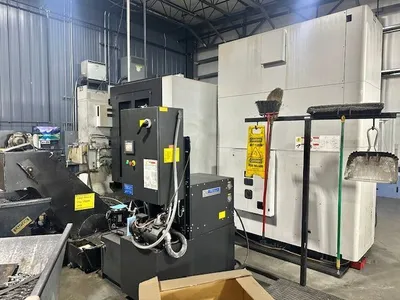

LNS CHIP BLASTER THRU SPINDLE COOLANT 1000 PSI
MANUAL GUID E I CONVERSATIONAL PROGRAMMING
275 MATRIX AUTO TOOL CHANGER
TOOL RETRACT & RECOVER
15,000 RPM BIG PLUS SPINDLE
.001 DEGREE

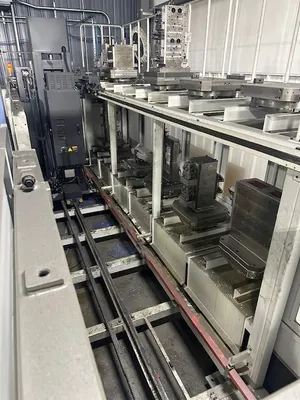

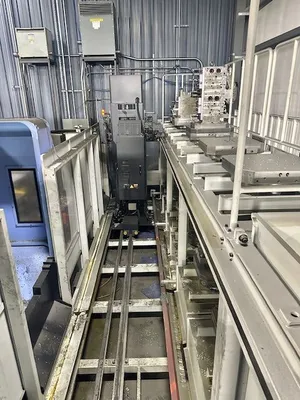

12 LPS LINEAR PALLET SYSTEM (6 UPPER, 6 LOWER)
FASTEMS INTERFACE
AIR LIMIT PALLET CLAMPING SYSTEM
10 PALLETS

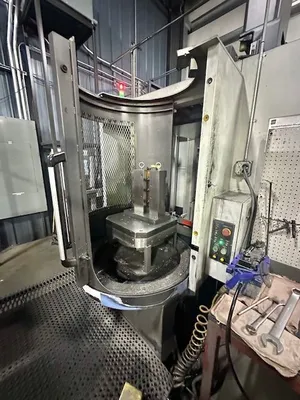

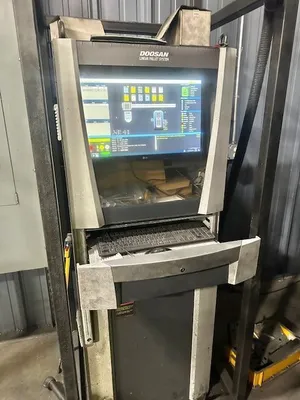

(1) LOADING STATION W/ LPS CONTROLLER
VIDEO MONITOURING SOLUTION (MACHINING AREA & LPS SET UP)
TOOL OFFSETS 400 PAIRS
48 PAIRS WORK COORDINATES
REMOTE DPM + COSY REMOTE H/W/(LPS)
ADVANCED TOOL & PALLET RETRACT FUNCTION
HAND HELD REMOTE MPG
CHIP CONVEYOR
FLOOD AND FLUSHING COOLANT
PCMCI CARD SLOT
USB PORT
RENISHAW PART PROBE
AUTO TOOL DAMAGE DETECTION BK 9
AUTO TOOL MEASUREMENT TOUCH PROBE RMI - Q ONLY RENISHAW
RIGID TAPPING
CUSTOM MACRO B
EMBEDDED ETHERNET FUNCTION
