| Table-L | 60" | 1,524 mm |
| Table-W | 26" | 660.4 mm |
| Weight on Table | 3,300 lb | 1,496.9 kg |
| Spindle Nose to Table Top | 5.91" - 31.89" | 5.91" - 31.89" |
| X - Axis Travel | 59.06" | 1,500.1 mm |
| Y - Axis Travel | 25.98" | 659.89 mm |
| Z - Axis Travel | 25.98" | 659.89 mm |
| Rapid Traverse Rate - X | 1,575 in/min. | 40 m/min. |
| Rapid Traverse Rate - Y | 1,575 in/min. | 40 m/min. |
| Rapid Traverse Rate - Z | 1,260 in/min. | 32 m/min. |
| Cutting Feed Rate | 1,260 in/min. | 32 m/min. |
| Spindle Speed | 10,000 RPM | 10,000 RPM |
| Spindle Taper | 50 CT | 50 CT |
| Main Motor | 35 hp | 26.1 kW |
| Automatic Tool Changer | 20 | 20 |
| Tool Diameter | 3.94" / 5.98" | 3.94" / 5.98" |
| Tool Length | 15.75" | 400.05 mm |
| Tool Weight | 33 lb | 15 kg |
| Machine Weight | 25,960 lb | 11,775.3 kg |

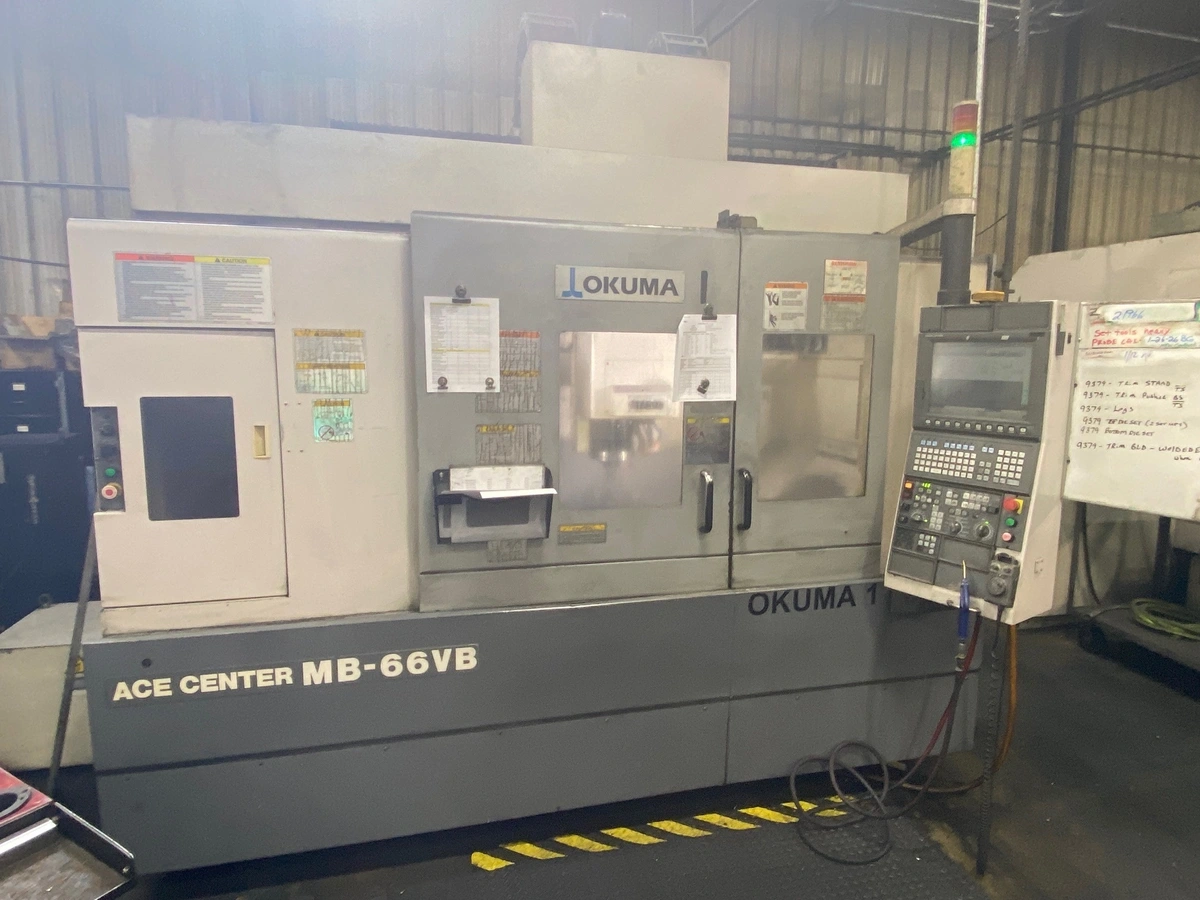

OKUMA OSP200MA CNC CONTROL
COOLANT THRU SPINDLE
RENISHAW PART AND TOOL PROBES

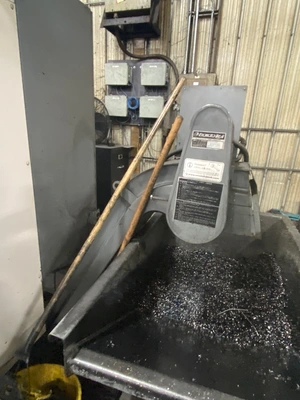

CHIP CONVEYOR
