ACCUWAY CNC UV-100 CNC VERTICAL BORING MILL W/ ATC AND MILLING

ACCUWAY CNC UV-100 CNC VERTICAL BORING MILL W/ ATC AND MILLING

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Boring Mills Vertical CNC
Manufacturer:
ACCUWAY
Model:
UV-100
Year:
2013
Stock #:
10116
Status:
For Sale

Description

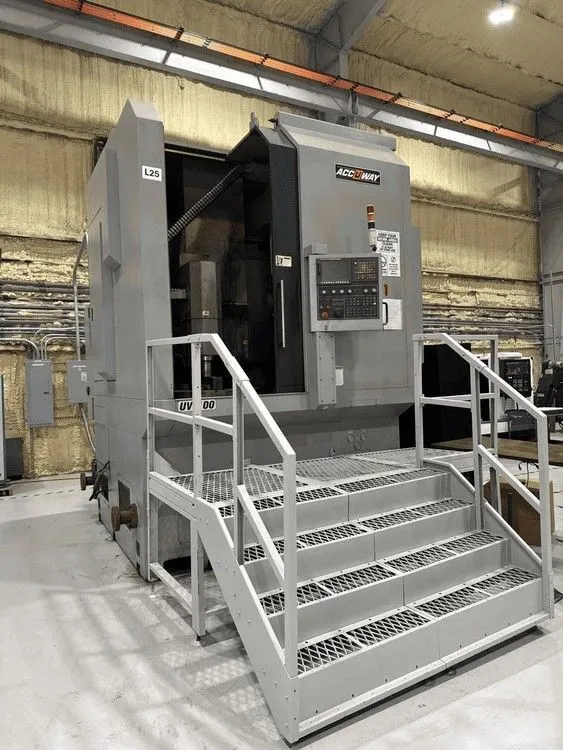

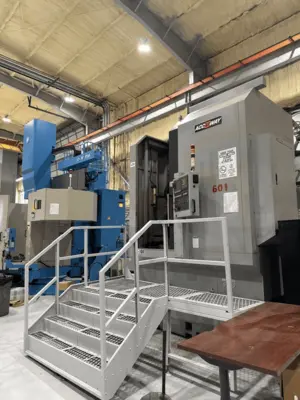

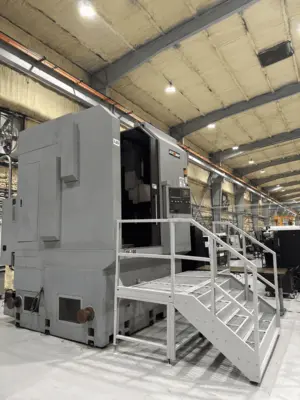

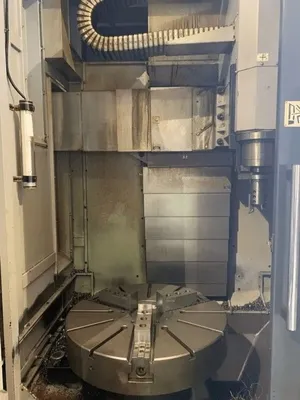

2013 Accuway UV-100 CNC Vertical Boring Mill, used condition, features 40" table, 43.3" swing, 50 hp main motor, and C - Axis with 3,000 RPM rotary spindle with 14.7 hp. Equipped with FANUC control, 12 station ATC, and hydraulic chuck. Machine weight: 37,400 lb.

Table Diameter40"1,016 mm
Swing Diameter43.3"1,099.8 mm
Turning Height27.55"699.77 mm
Spindle NoseA2 - 15A2 - 15
Table Speed1,200 RPM1,200 RPM
Main Motor50 hp37.3 kW
Number Of Ranges22
X - Axis Travel30.1"764.54 mm
Z - Axis Travel31.5"800.1 mm
Rapid Traverse Rate - X591 ipm
Rapid Traverse Rate - Z275 in/min.7 m/min.
C - Axis Indexing.001.001
Rotary Spindle Speed3,000 RPM3,000 RPM
Rotary Spindle Horsepower14.7 hp11 kW
Automatic Tool Changer1212
Machine Weight37,400 lb16,964.4 kg
ControlCNC (FANUC 0I TD CNC COLOR CONTROL)CNC (FANUC 0I TD CNC COLOR CONTROL)

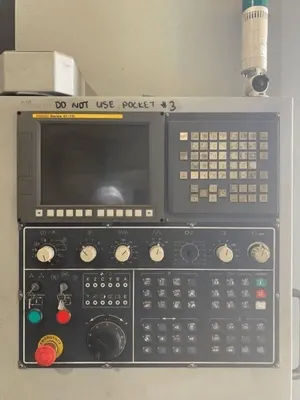

FANUC 0I TD CNC COLOR CONTROL
12 STATION ATC
.001 C - AXIS
HAND HELD MPG
CHIP CONVEYOR & CHIP CART

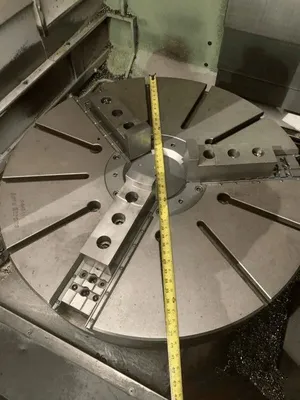

40" 3 JAW CHUCK HYDRAULIC CHUCK SYSTEM
COOLANT SYSTEM
