| Number Of Tables / Pallets | 1 | 1 |
| Table Size - L | 314.9" | 7,998.5 mm |
| Table Size - W | 137.8" | 3,500.1 mm |
| Distance Between Columns | 161.4" | 4,099.6 mm |
| Spindle Nose to Table Top | 98 | 98 |
| X - Axis Travel | 324.8" | 8,249.9 mm |
| Y - Axis Travel | 177.1" | 4,498.3 mm |
| Z - Axis Travel | 23.6" | 599.44 mm |
| W - Axis Positions | 82.6" | 2,098 mm |
| Rapid Traverse Rate - X | 591 in/min. | 15 m/min. |
| Rapid Traverse Rate - Y | 591 ipm | |
| Rapid Traverse Rate - Z | 315 ipm | |
| Cutting Feedrate | 236 in/min. | 6 m/min. |
| Spindle Speed | 8,000 RPM | 8,000 RPM |
| Spindle Taper | 50 BT | 50 BT |
| Number Of Gear Ranges | 2 | 2 |
| Main Motor | 40 hp | 29.8 kW |
| Automatic Tool Changer | 60 | 60 |
| Tool Diameter | 9.13" | 9.13" |
| Tool Length | 15.7" | 398.78 mm |
| Tool Weight | 44 lb | 20 kg |

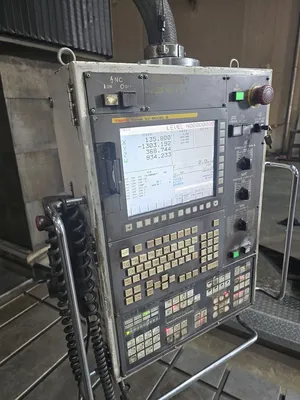

| Control | CNC (FANUC 31I-B CNC COLOR CONTROL) | CNC (FANUC 31I-B CNC COLOR CONTROL) |
FANUC 31I-B CNC CONTROL
AUTO TOOL LENGTH MEASURING
BROKEN TOOL DETECTION
SCALE FEED BACK X,Y,Z
CHIP CONVEYORS ( 3 CONVEYORS TYPE)
SPECIAL FIVE FACE SOFTWARE (N5S-C5-01) FOR ATTACHMENT
This equipment is currently unavailable. Similar equipment available now is shown below.
