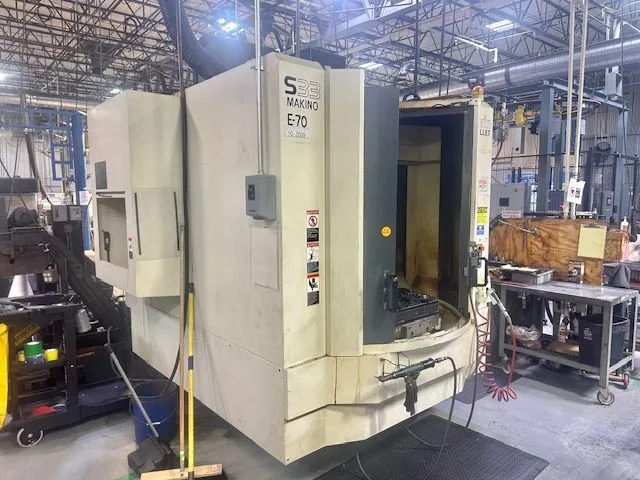

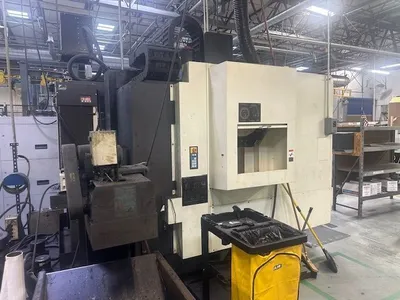

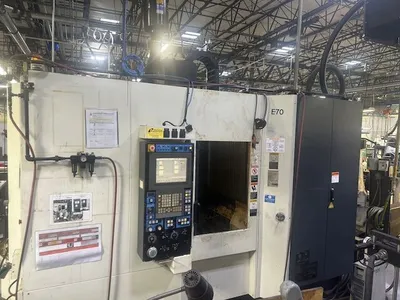

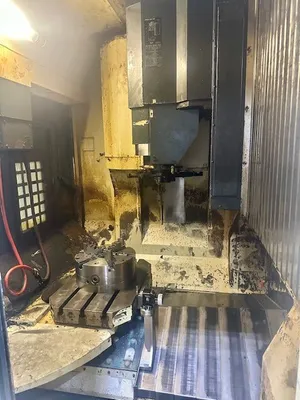

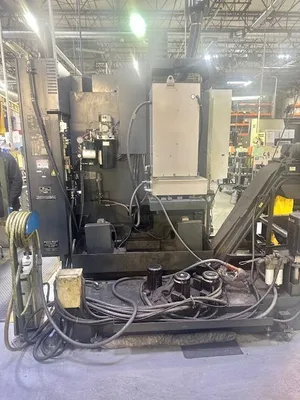

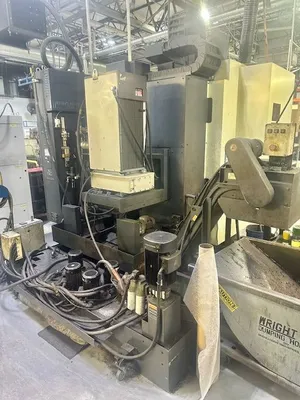

MAKINO S 33 2 PALLET CNC VERTICAL MACHINING CENTER

MAKINO S 33 2 PALLET CNC VERTICAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
MAKINO
Model:
S33
Year:
2008
Stock #:
10120
Status:
For Sale
Number Of Tables / Pallets22
Table-L23.6"599.44 mm
Table-W15.7"398.78 mm
Weight on Table880 lb399.2 kg
Spindle Nose to Table Top4.7" ~ 22.4"4.7" ~ 22.4"
X - Axis Travel25.6"650.24 mm
Y - Axis Travel19.7"500.38 mm
Z - Axis Travel17.7"449.58 mm
Rapid Traverse Rate - X1,575 in/min.40 m/min.
Rapid Traverse Rate - Y1,575 in/min.40 m/min.
Rapid Traverse Rate - Z1,575 in/min.40 m/min.
Cutting Feed Rate1,575 in/min.40 m/min.
Spindle Speed12,000 RPM12,000 RPM
Spindle Taper4040
Main Motor30 hp22.4 kW
Automatic Tool Changer3030
Tool Diameter4.5", 5.12"4.5", 5.12"
Tool Length11.8"299.72 mm
Tool Weight17.6 lb8 kg
Machine Weight16,464 lb7,468 kg
ControlCNC (FANUC 310I CNC COLOR CONTROL W/PRO 5 CNC CONTROL)CNC (FANUC 310I CNC COLOR CONTROL W/PRO 5 CNC CONTROL)
Weight20000.0020000.00

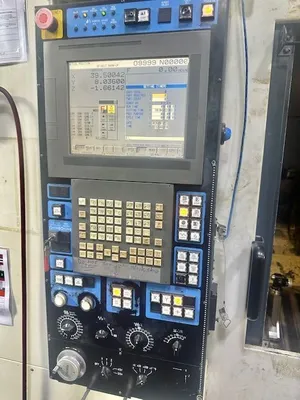

FANUC PRO 5 310IM CNC COLOR CONTROL

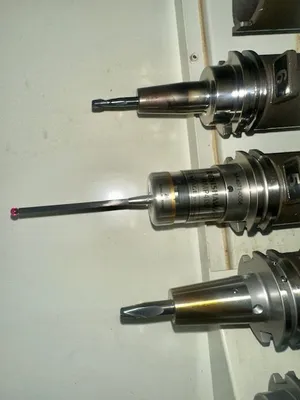

FENISHAW RMP 400 PART PROBE

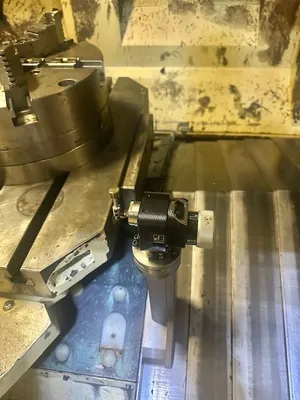

RENISHAW RTS OPTICAL TOOL LENNGTH MEASUREMENT
EXTENDED MEMORY
COOLANT THRU SPINDLE
AIR THROUGH SPINDLE
HELICAL INTERPOLATION
NOZZEL COOLANT
AIR DRYER
SHOWER COOLANT
AIR BLOW
WORK WAS SYSTEM
RIGID TAPPING
MANUAL PULSE GENERATOR
SPINDLE CHILLER

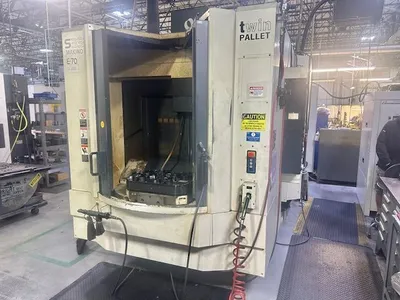

FACTORY TWIN PALLET CHANGE (180 DEGREE SWING)
CHIP CONVEYOR SYSTEM

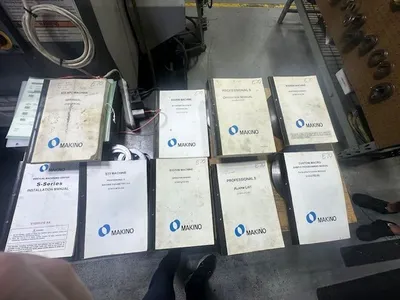

ALL AVAILABLE MANUALS
