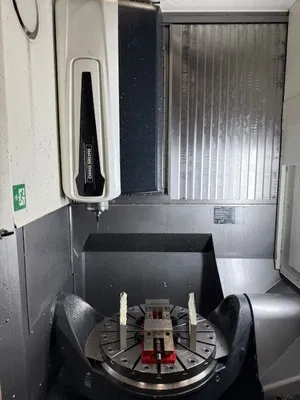

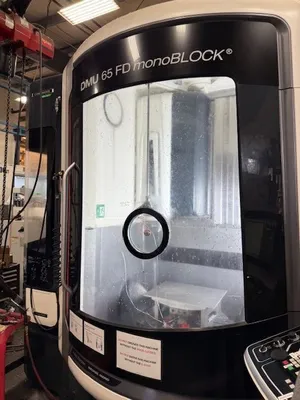

DMG MORI DMU 65 FD MONOBLOCK CNC 5 AXIS VERTICAL MACHINING CENTER
Unavailable

DMG MORI DMU 65 FD MONOBLOCK CNC 5 AXIS VERTICAL MACHINING CENTER

CNC 5 Axis Machines
Manufacturer:
DMG MORI
Model:
DMU 65 FD MONOBLOCK
Year:
2023
Stock #:
10122
Serial #:
12140021263
DMG MORI DMU 65 FD MONOBLOCK CNC 5 Axis Vertical Machining Center, manufactured in 2022, offers precision and efficiency for complex machining tasks. Including turning capabilities as well. Ideal for enhancing production capabilities. Used condition.
Number Of Tables / Pallets11
Weight On Table1,322 lb599.6 kg
Integrated NC Rotary Table Size26.8"680.72 mm
Main Spindle Horse Power47 hp35 kW
Main Spindle Speeds20,000 RPM20,000 RPM
Max Workpiece Diameter and Height33" x 19.6"33" x 19.6"
Main Spindle TaperHSKA63HSKA63
X - Axis Travel28.9"734.06 mm
Y - Axis Travel25.5"647.7 mm
Z - Axis Travel22"558.8 mm
A - Axis Travel+ - 120 DEGREES+ - 120 DEGREES
C - Axis Travel Table Indexing360 DEGREES360 DEGREES
Rapid Traverse Rate - X1,575 in/min.40 m/min.
Rapid Traverse Rate - Y1,575 in/min.40 m/min.
Rapid Traverse Rate - Z1,575 in/min.40 m/min.
Cutting Feed Rate1,575 in/min.40 m/min.
Vertical Turning Table Size, Number Of Tables26.026.0
Vertical Turning Table Speed1,200 RPM1,200 RPM
Vertical Turning Table Horse Power49.6 hp37 kW
Automatic Tool Changer6060
Tool Diameter6.3"6.3"
Tool Length12.4"314.96 mm
Tool Weight17.6 lb8 kg
Machine Weight34,092 lb15,463.9 kg
ControlCNC (CELOS WITH SIEMENS 840D SI OPERATE CNC CONTROL)CNC (CELOS WITH SIEMENS 840D SI OPERATE CNC CONTROL)
Weight0.000.00

CELOS WITH SEIMENS 840D SI OPERATE CNC COLOR CONTROL
MILLING AND TURNING CAPABILITIES
ECONOMIC PROCESSING PACKAGE CONSISTING OF
INFRARED MEASUREMENT PROBE RENISHAW SK 40
ATC (APLICATION TURNING CYCLE)
PACKAGE MILL / TURN HSK A63
TOOL MAGAZINE POCKETS 60 POCKETS SK 40
PRODUCTION PACKAGE 80 BAR, 980 L, FREQUENCY CONTROL
ROTATING CLEAR VIEW WINDOW
SPRAY PISTAL COE CHIP RINSING
OIL EMULSION MIST SEPERATER
COILING AIR BLAST
TOOL MEASURING IN MACHINING AREA BLUM LASE FD
SENSOR PACKAGE i4.0
SAFETY PACKAGE FOR POWER FAILURE
USE OF ANGULAR MILLING HEADS IN TILTED WORK PLANE (P-SD000529)
ANGULAR MILLING HEAD MEASURED WITH BLUM LASER (P-SD000528)
CHIP CONVEYOR
3D QUICKSET TOOL KIT COR CONTROL AND COMP OF CINEMATIC AC CURACY OF 4 /5 AXIS MACHINE CONFIGURATIONS
MPC MACHINE PRODUCTION CONTROL
RENISHAW OMP-60 OPTICAL PROBE SYSTEM
COOLANT FILTRATION SYSTEM WITH PAPER FILTER
SPINDLE CHILLER
PALLET PROLIFERATION READY PACKAGE (READY TO ACCEPT AND CAN ADD PALLET CELL IN FUTURE)
