DMG MORI DMC 65 FD MONOBLOCK RS6 CNC 5 AXIS VERTICAL MACHINING CENTER W 6 FACTORY PALLET CHANGER

DMG MORI DMC 65 FD MONOBLOCK RS6 CNC 5 AXIS VERTICAL MACHINING CENTER W 6 FACTORY PALLET CHANGER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC 5 Axis Machines
Manufacturer:
DMG MORI
Model:
DNC 65 MONOBLOCK RS6
Year:
2023
Stock #:
10124
Status:
For Sale
Serial #:
12150005153

Description

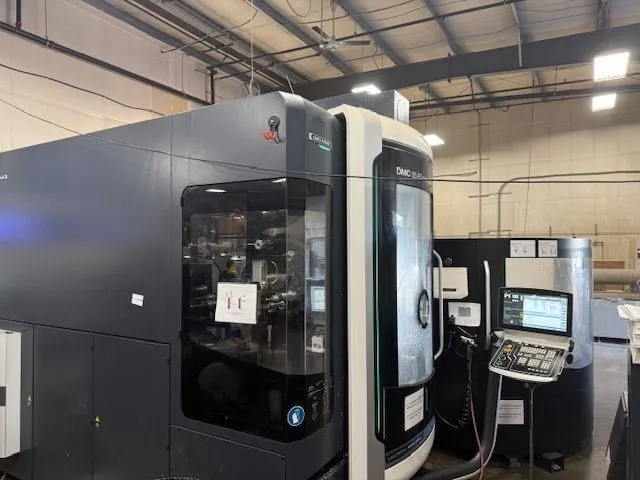

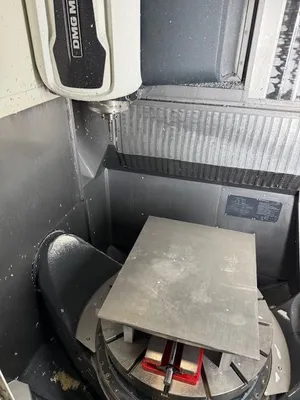

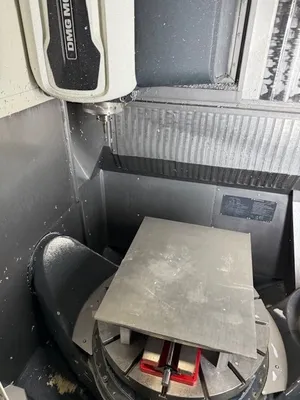

DMG MORI DMC 65 FD Monoblock CNC 5 Axis Vertical Machining Center, 2022, used. Features 6 factory pallets, 28.9x25.6" table, 47 hp spindle at 20,000 RPM, HSKA63 taper, and 180-tool changer. Equipped with Siemens control, Renishaw probes, vertical turning capability and safety package.

Number Of Tables / Pallets66
Weight On Table1,322 lb599.6 kg
Integrated NC Rotary Table Size26.8"680.72 mm
Main Spindle Horse Power47 hp35 kW
Main Spindle Speeds20,000 RPM20,000 RPM
Max Workpiece Diameter and Height33" x 19.6"33" x 19.6"
Main Spindle TaperHSKA63HSKA63
X - Axis Travel28.9"734.06 mm
Y - Axis Travel25.5"647.7 mm
Z - Axis Travel22"558.8 mm
A - Axis Travel+ - 120 DEGREES+ - 120 DEGREES
C - Axis Travel Table Indexing360 DEGREES360 DEGREES
Rapid Traverse Rate - X1,575 in/min.40 m/min.
Rapid Traverse Rate - Y1,575 in/min.40 m/min.
Rapid Traverse Rate - Z1,575 in/min.40 m/min.
Cutting Feed Rate1,575 in/min.40 m/min.
Vertical Turning Table Size, Number Of Tables26.026.0
Vertical Turning Table Speed1,200 RPM1,200 RPM
Vertical Turning Table Horse Power49.6 hp37 kW
Automatic Tool Changer180180
Tool Diameter6.3"6.3"
Tool Length12.4"314.96 mm
Tool Weight17.6 lb8 kg
Machine Weight34,092 lb15,463.9 kg
ControlCNC (CELOS WITH SIEMENS 840D SI OPERATE CNC CONTROL)CNC (CELOS WITH SIEMENS 840D SI OPERATE CNC CONTROL)
Weight0.000.00

CELOS WITH SEIMENS 840D SI OPERATE CNC COLOR CONTROL
MILLING AND TURNING CAPABILITIES
ECONOMIC PROCESSING PACKAGE CONSISTING OF:
INFRARED MEASUREMENT PROBE RENISHAW SK 40
ATC (APLICATION TURNING CYCLE)
PACKAGE MILL / TURN HSK A63

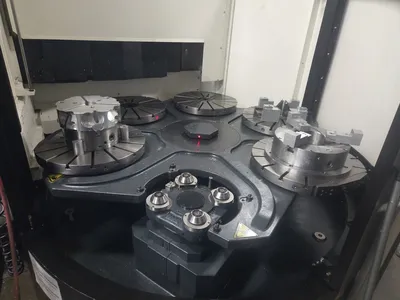

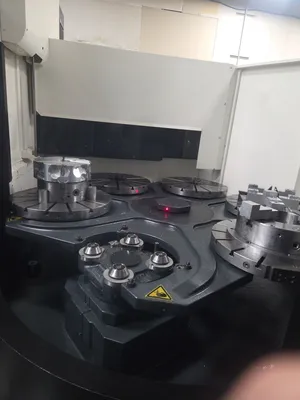

ROTARY PALLET STORAGE RPS 6/M/T INCLUDES 6 PALLETS
TOOL MAGAZINE POCKETS 180 POCKETS SK 40
PRODUCTION PACKAGE 80 BAR, 980 L, FREQUENCY CONTROL
ROTATING CLEAR VIEW WINDOW
SPRAY PISTAL COE CHIP RINSING
OIL EMULSION MIST SEPERATER
COILING AIR BLAST
TOOL MEASURING IN MACHINING AREA BLUM LASE FD
TOOL BREAKAGE CONTROL MECHANICAL
SENSOR PACKAGE i4.0
SAFETY PACKAGE FOR POWER FAILURE
CHIP CONVEYOR
3D QUICKSET TOOL KIT COR CONTROL AND COMP OF CINEMATIC AC CURACY OF 4 /5 AXIS MACHINE CONFIGURATIONS
RENISHAW OMP-60 OPTICAL PROBE SYSTEM
COOLANT FILTRATION SYSTEM WITH PAPER FILTER
SPINDLE CHILLER
