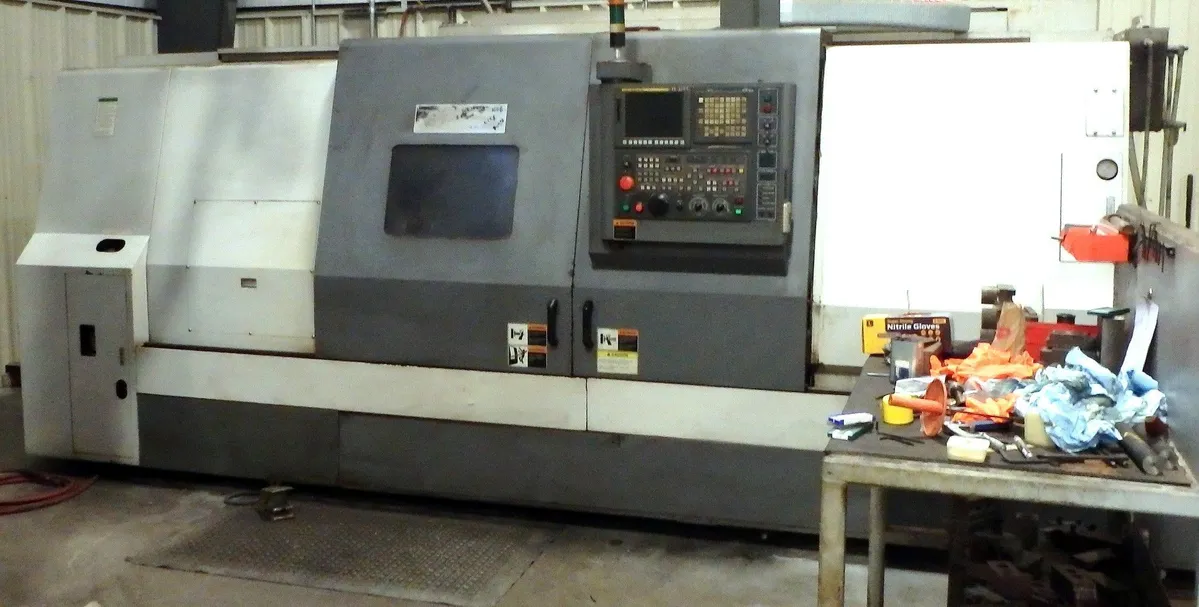

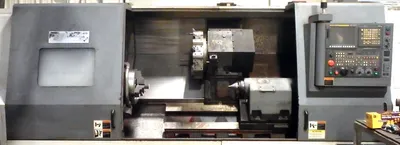

SAMSUNG SL35B/1500 CNC 2 AXIS UNIVERSAL LATHE

SAMSUNG SL35B/1500 CNC 2 AXIS UNIVERSAL LATHE

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
SAMSUNG
Model:
SL 35B/1500
Year:
2012
Stock #:
10128
Status:
For Sale

Description

SAMSUNG SL35B/1500 CNC lathe, 2-axis, 2012 model. Features 23.6" swing, 16.5" turning diameter, 60.2" machining length. Comes with tool setter, chip conveyor, 15" hydraulic chuck, steady rest, and FANUC OI-TD control. Ideal for precision tasks.

Swing Over Bed23.6"599.44 mm
Machining Length60.2"1,529.1 mm
Distance Between Centers64.6"1,640.8 mm
Chuck Size 115"381 mm
Spindle Nose 1A2 - 11A2 - 11
Spindle Bar Capacity 13.4"86.36 mm
Turning Diameter, Shaft Diameter16.5"419.1 mm
Spindle Speeds 12,000 RPM2,000 RPM
Spindle Horsepower 135 hp26.1 kW
Spindle Bore Diameter 14.1"104.14 mm
X1 - Axis Travel10.8"274.32 mm
Z1 - Axis Travel63.2"1,605.3 mm
Rapid Traverse Rate - X1787 in/min.333.2 mm/sec.
Rapid Traverse Rate - Z1964 in/min.408.1 mm/sec.
Gear Ranges22
Turret Configuration 11212
Tailstock Quill Diameter4.7"119.38 mm
Tailstock Quill Travel5.1"129.54 mm
Programmable TailstockYESYES
Tailstock Travel54.9"1,394.5 mm
# Axis22
ControlCNC (FANUC OI-TD CNC COLOR CONTROL)CNC (FANUC OI-TD CNC COLOR CONTROL)
Weight26,40026,400

TOOL SETTER

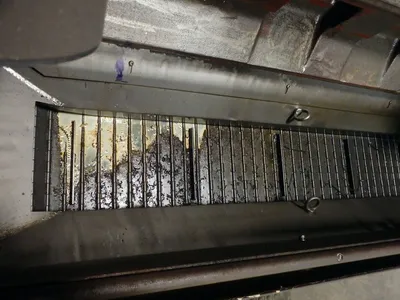

CHIP CONVEYOR

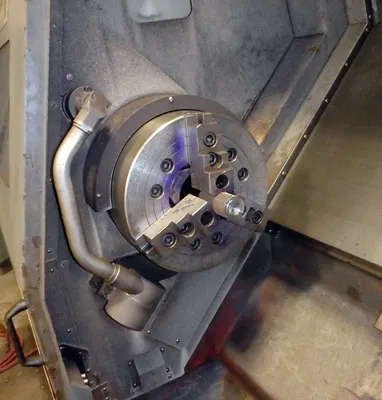

15" 3-JAW HYDRAULIC CHUCK

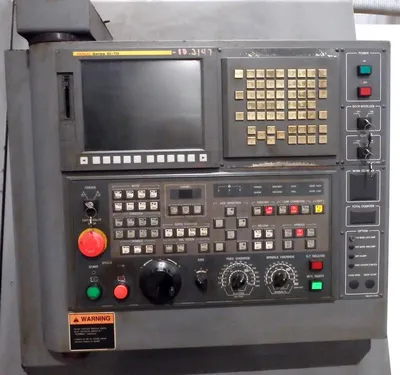

FANUC OI-TD CNC COLOR CONTROL CNC CONTROL
