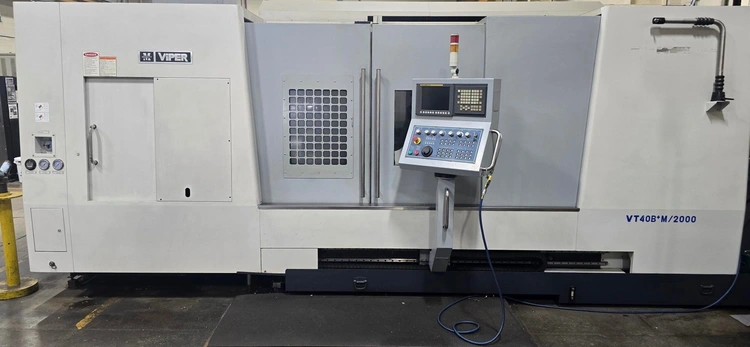

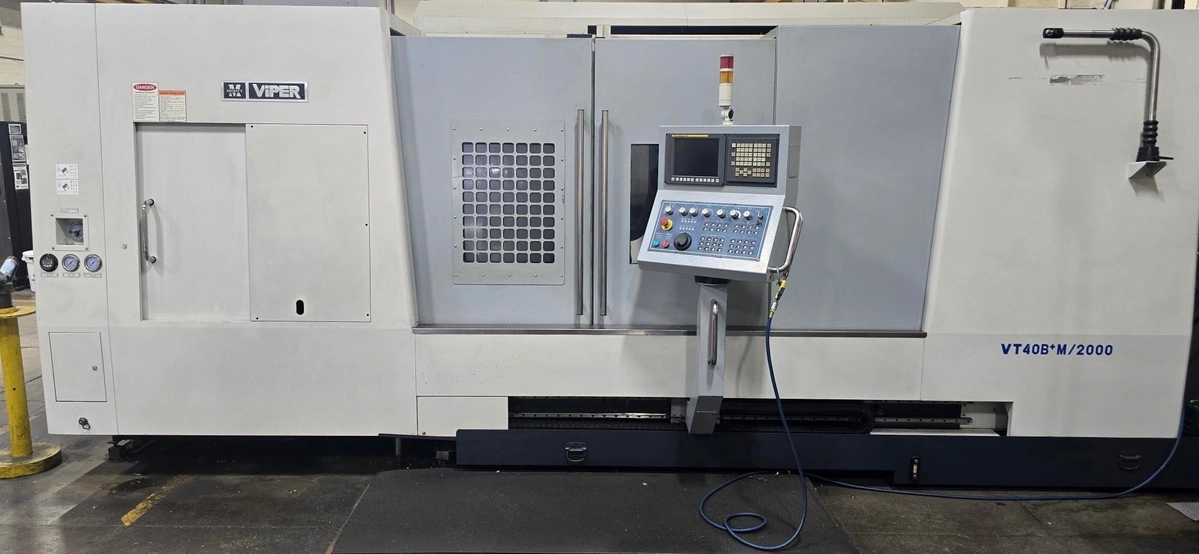

Used 2013 VIPER VT-40BMX2000 | Lathes CNC, 2-Axis & 3-Axis

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
VIPER
Model:
VT-40BMX2000
Year:
2013
Stock #:
10130
Status:
For Sale
Country:
United States
Swing Over Bed39.37"1,000 mm
Machining Length76.8"1,950.7 mm
Chuck Size 124"609.6 mm
Spindle Nose 1A2-15A2-15
Spindle Bar Capacity 17.28"184.91 mm
Turning Diameter, Shaft Diameter33.85"859.79 mm
Spindle Speeds 11,500 RPM1,500 RPM
Spindle Horsepower 150 hp37.3 kW
Spindle Bore Diameter 110.2"259.08 mm
X1 - Axis Travel16.931"430.05 mm
Z1 - Axis Travel74.8"1,899.9 mm
C1 - Axis Travel.001 DEGREES.001 DEGREES
Gear Ranges22

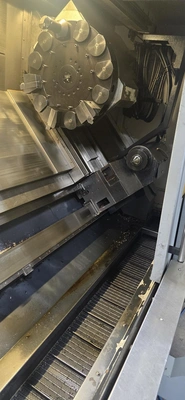

Turret Configuration 11212
Turret Rotary Tool Spindle Speed 13,200 RPM3,200 RPM
Turret Rotary Tool Horse Power 115 hp
Tailstock Quill Diameter5.9"149.86 mm
Tailstock TaperMT-6MT-6
Tailstock Quill Travel5.9"149.86 mm
Programmable TailstockYESYES
Tailstock Travel76.8"1,950.7 mm
# Axis33
Bar Capacity7.28"184.91 mm
Tailstock'Yes''Yes'

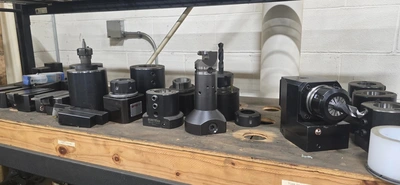

Live Tooling'Yes''Yes'
Sub Spindle'No''No'
Dimensions111" x 269"111" x 269"
Weight36080 LBS.36080 LBS.

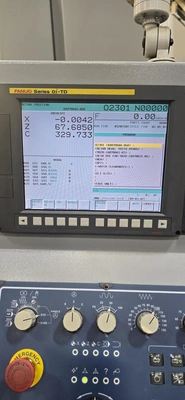

FANUC OI-TD CNC CONTROL

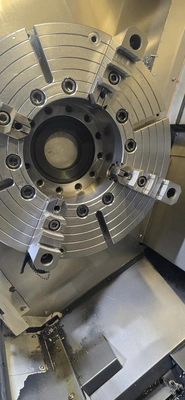

24" SAMCHULLY 3-JAW HYDRAULIC CHUCK

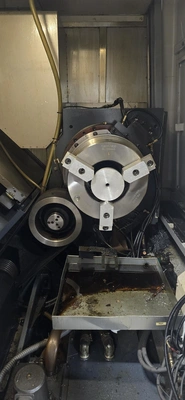

MANUAL 3-JAW CHUCK ON REAR

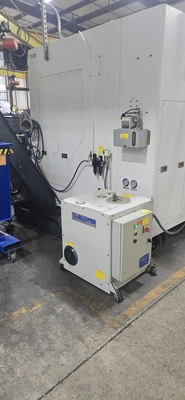

CHIP BLASTER HIGH PRESSURE COOLANT SYSTEM
AUTO PRESETTER

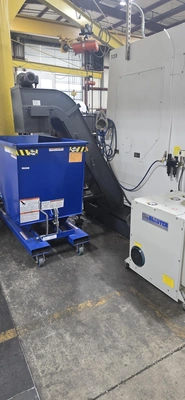

CHIP CONVEYOR
4525 SPINDLE HOURS
