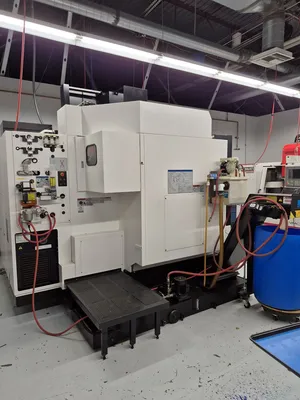

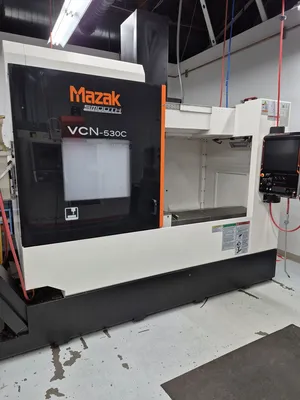

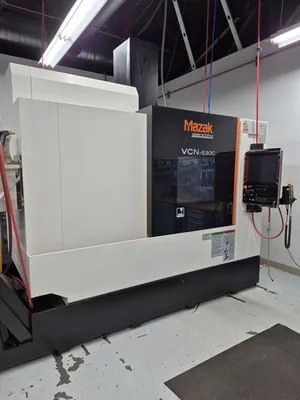

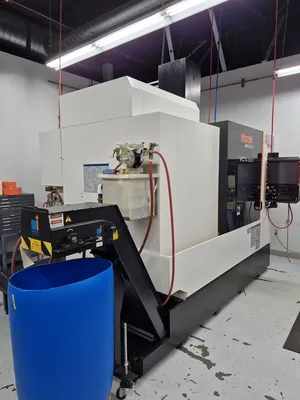

MAZAK NEXUS VCN 530C CNC 4TH AXIS VERTICAL MACHINING CENTER W/ SMOOTH G CONTROL

MAZAK NEXUS VCN 530C CNC 4TH AXIS VERTICAL MACHINING CENTER W/ SMOOTH G CONTROL

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
MAZAK
Model:
VCN530C SMOOTH G
Year:
2018
Stock #:
10131
Status:
For Sale

Description

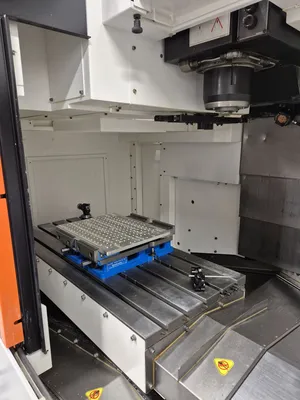

2018 MAZAK NEXUS VCN 530C CNC 4TH Axis Vertical Machining Center with Smooth G control for sale. Features a 51.18" x 21.65" table, 15,000 RPM spindle, and 30 ATC. Equipped with Renishaw probe, chip conveyor, and high smoothing control.

Number Of Tables / Pallets11
Table-L51.18"1,300 mm
Table-W21.65"549.91 mm
Weight on Table2,630 lb1,192.9 kg
Spindle Nose to Table Top5.90'' - 25.98''5.90'' - 25.98''
X - Axis Travel41.34"1,050 mm
Y - Axis Travel20.87"530.1 mm
Z - Axis Travel20.08"510.03 mm
Rapid Traverse Rate - X1,654 in/min.42 m/min.
Rapid Traverse Rate - Y1,654 in/min.42 m/min.
Rapid Traverse Rate - Z1,654 in/min.42 m/min.
Cutting Feed Rate987 in/min.25.1 m/min.
Spindle Speed15,000 RPM15,000 RPM
Spindle Taper40 BT40 BT
Main Motor25 hp18.6 kW
Automatic Tool Changer3030
Tool Diameter4.924.92
Tool Length13.78"350.01 mm
Tool Weight17.6 lb8 kg
Machine Weight15,600 lb7,076 kg

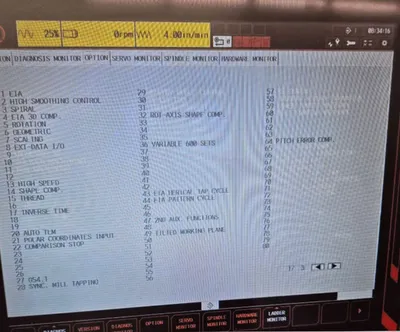

ControlCNC (MAZAK MAZATROL SMOOTH G CNC COLOR CONTROL)CNC (MAZAK MAZATROL SMOOTH G CNC COLOR CONTROL)

EIA
HIGH SMOOTHING CONTROL
SPIRAL, EIA 3D COMP.
EIA 3D COMPENSATION ROTATION
ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O, HIGH SPEED
SHAPE COMP, THRED, INVERSE TIME, AUTO ATLM, POLAR COORD. INPUT
COMPARISON STOP, G54.1, SYNC. MILL TAPPING
ROT-AXIS SHAPE COMP, VARIABLE 600 SETS, EIA HELICAL TAP CYCLE, EIA PATTERN CYCLE
2ND AUX . FUNCTION, TILDED WORK PLANE, PITCH ERROR
RENISHAW RTS WIRELESSS TOOL LENGTH MEASURE
RENISHAW PART PROBE

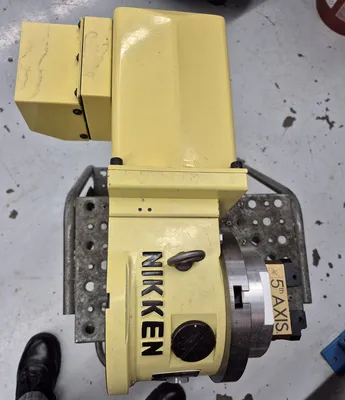

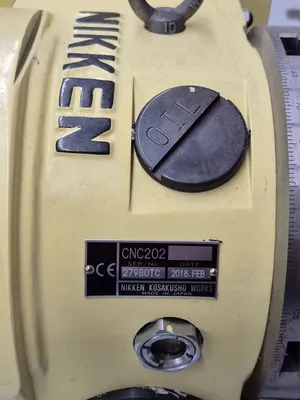

NIKKEN RNC 202 8" 4TH AXIS CONTOURING ROTARY TABLE WITH TAILSTOCK
CHIP CONVEYOR
