BROTHER SPEEDIO R650X2 HIGH SPEED 2 APC MACHINING CENTER

BROTHER SPEEDIO R650X2 HIGH SPEED 2 APC MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
BROTHER
Model:
SPEEDIO R650X2
Year:
2023
Stock #:
10132
Status:
For Sale

Description

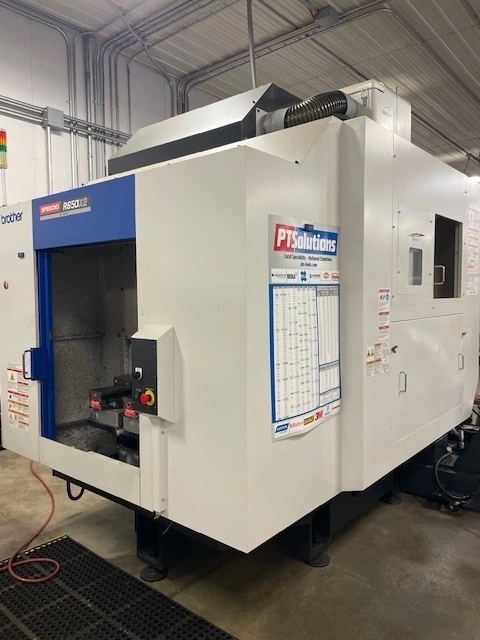

2022 BROTHER SPEEDIO R650X2 Vertical Machining Center. Dual tables, CNC-C00 equipped. 16,000 RPM spindle, 40-tool changer, integrated high-pressure coolant 1000psi. Rapid traverse: 1968 IPM. Includes chip conveyor, Renshaw probe, Renishaw tool TS27R measurement and more.

Number Of Tables / Pallets22
Table-L31.5"800.1 mm
Table-W15.7"398.78 mm
Weight on Table441 lb200 kg
Spindle Nose to Table Top13.8" ~ 25.8"13.8" ~ 25.8"
X - Axis Travel25.6"650.24 mm
Y - Axis Travel16.7"424.18 mm
Z - Axis Travel17.7"449.58 mm
Rapid Traverse Rate - X1,696 in/min.43.1 m/min.
Rapid Traverse Rate - Y1,696 in/min.43.1 m/min.
Rapid Traverse Rate - Z1,696 in/min.43.1 m/min.
Cutting Feed Rate1,181 in/min.30 m/min.
Spindle Speed16,000 RPM16,000 RPM
Spindle Taper30 BBT30 BBT
Main Motor9.8 hp7.3 kW

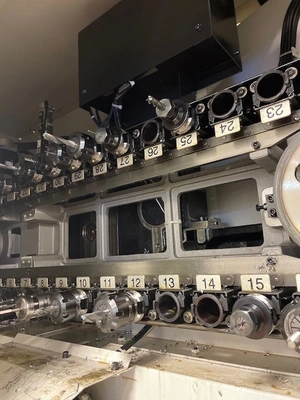

Automatic Tool Changer4040
Tool Diameter3.13.1
Tool Length7.9"200.66 mm
Tool Weight6.6 lb3 kg
Machine Weight7,826 lb3,549.8 kg
ControlCNC (BROTHER CNC C00 CNC COLOR CONTROL)CNC (BROTHER CNC C00 CNC COLOR CONTROL)
Weight0.000.00

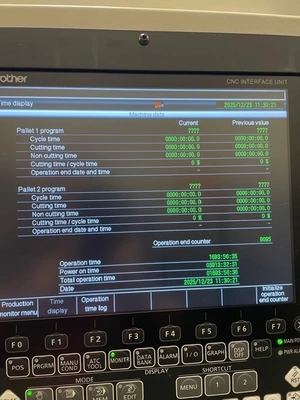

BROTHER CNC-C00 CNC COLOR CONTROL

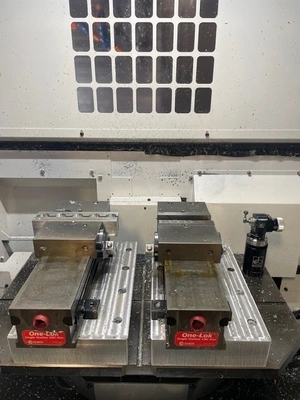

Servo Quick Dual Table
Spindle Override

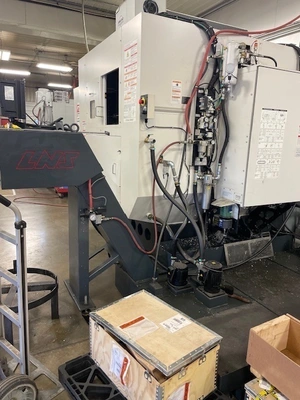

LNS Turbo MH 250 / 250 Micron Filtration Chip Conveyor
Manual pulse generator
Work light kit with brackets
NOP 1000 PSI brother CTS pump
Renshaw OMP 40 spindle probe OMP 40-2
Mist Collector
High Capacity Coolant Tank
Tool Presetter

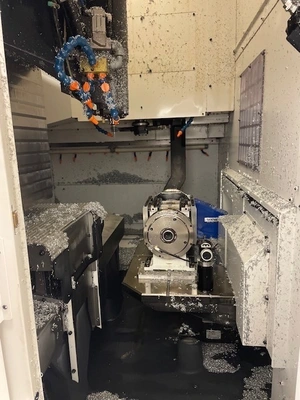

(1) T200A 4th Axis Rotary Table
