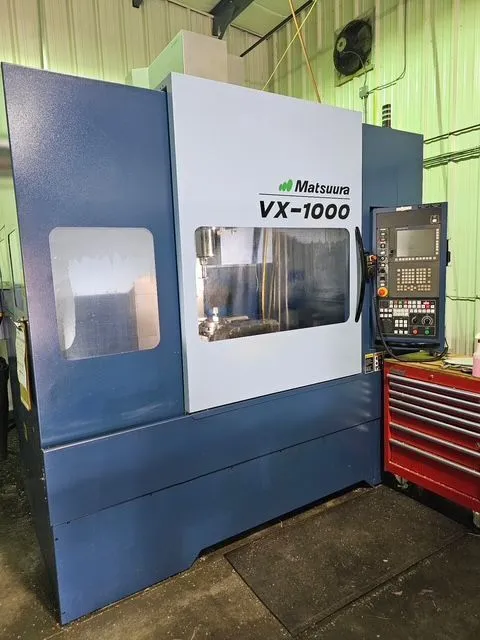

MATSUURA VX1000 CNC HIGH PRECISION VERTICAL MACHINING CENTER W/5AXIS ROTARY TABLE

MATSUURA VX1000 CNC HIGH PRECISION VERTICAL MACHINING CENTER W/5AXIS ROTARY TABLE

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
MATSUURA
Model:
VX1000
Year:
2018
Stock #:
10133
Status:
For Sale
Serial #:
2000393

Description

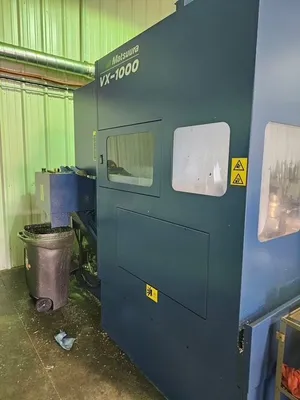

Matsuura VX1000, 2018 model, high precision CNC vertical machining center with 5-axis rotary table. Features include 15,000 RPM spindle speed, 30 hp motor, 30-tool ATC, and cutting hours of 8,400. Includes spindle chiller and coolant systems.

Number Of Tables / Pallets11
Table-L47.24"1,199.9 mm
Table-W23.62"599.95 mm
Weight on Table3,300 lb1,496.9 kg
Spindle Nose to Table Top5.91 ~ 29.915.91 ~ 29.91
X - Axis Travel40.1"1,018.5 mm
Y - Axis Travel24"609.6 mm
Z - Axis Travel24"609.6 mm
Rapid Traverse Rate - X1,574 in/min.40 m/min.
Rapid Traverse Rate - Y1,574 in/min.40 m/min.
Rapid Traverse Rate - Z1,181 in/min.30 m/min.
Cutting Feed Rate797 in/min.20.2 m/min.
Spindle Speed15,000 RPM15,000 RPM
Spindle Taper4040
Number of Gear Ranges22
Main Motor30 hp22.4 kW
Automatic Tool Changer3030
Tool Diameter3.23", 4.92"3.23", 4.92"
Tool Length11.2"284.48 mm
Tool Weight22 lb10 kg
Machine Weight18,970 lb8,604.7 kg
ControlCNC (FANUC G-TECH 31I CNC CONTROL)CNC (FANUC G-TECH 31I CNC CONTROL)

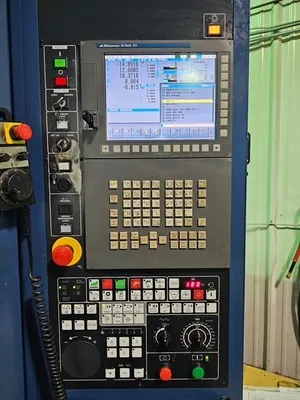

FANUC G TECH 31I CNC COLOR CONTROL

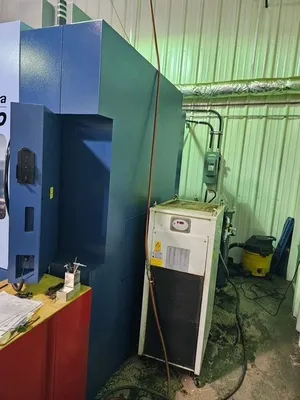

SPINDLE CHILLER
REMOTE PULSE GENERATOR
DUAL CHIP AUGARS
MANUALS
CHIP CONVEYOR

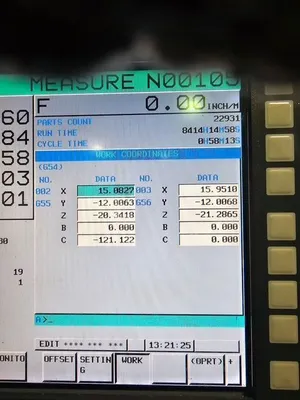

FANUC G-TECH 31I CNC CONTROL
COOLANT THRU SPINDLE 300 PSI

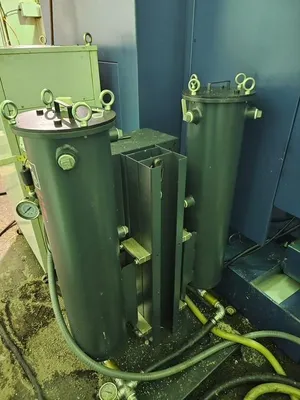

COOLANT FILTRATION SYSTEM
RENISHAW LASER TOOL LENGTH MEASUREMENT
WIRED FOR RENISHAW PART PROBE

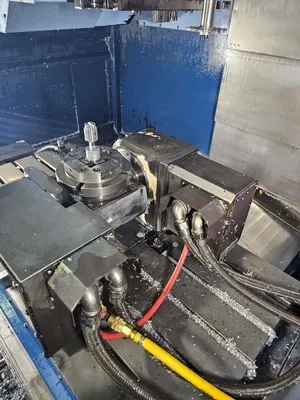

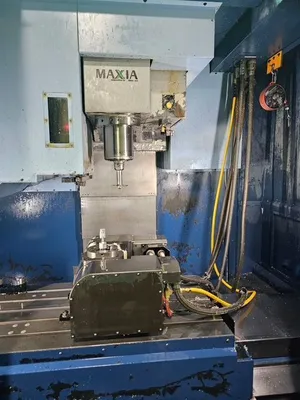

4TH AND 5TH AXIS ROTARY TABLE, B-140(-30+110) degrees, C-360 degrees
8400 CUTTING HOURS, ALUMINUM ONLY
