MAXIMUM SWING OVER BED W/OCOVERS 45.27"
MAXIMUM SWING OVER SADDLE 29.52"
DISTANCE BETWEEN CENTERS 393.70"
WEIGHT BETWEEN CENTERS, UNSUPPORTED 19,800 LBS
SPINDLE SPEED RANGE 3 - 1000 RPM
NUMBER OF SPEED RANGES 3
MAXIMUM TORGUE 6570 FT- LBS (9000 NM)
MAIN SPINDLE DRIVE MOTOR 67 HP
SPINDLE NOSE DIN 55026 11
SPINDLE BORE DIAMETER 4.13
RAPID TRAVERS RATE 236.2 IPM X-AXIS
RAPID TRAVERSE RATES 236.2 IPM Z-AXIS
LIVE SPINDLE SPEEDS 3000 RPM
LIVE SPINDLE MOTOR 20HP

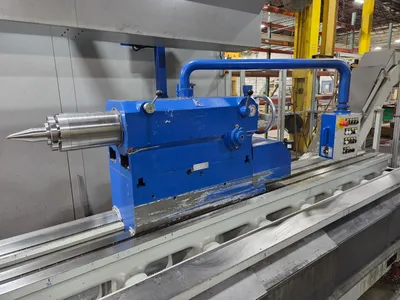

TAILSTOCK QUILL DIAMETER 7.28"
TAILSTOCK QUILL STROKE 11.81"
TAILSTOCK TAPER #6
SIEMENS 840 DE SL Solution Line CNC Control
Remote Handwheel

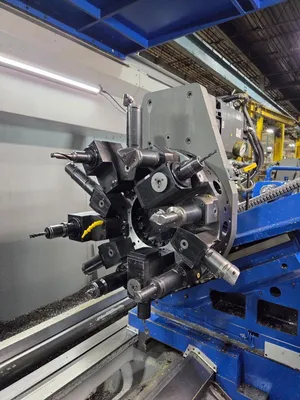

Baruffaldi TBMA 302/12 12-Station Disc Turret w/Live Milling
Heidenhain Scales on X & Z Axes

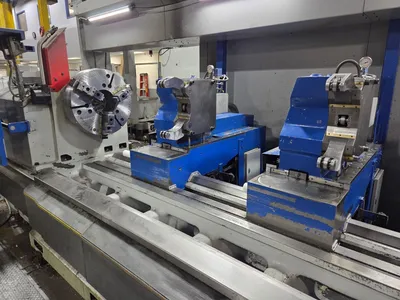

3-Morari Programable Self Centering Steady Rests w/Longitudinal Positioning
Manual 3-Point Roller Type Steady Rest
24.8" & 12.4" Rohm Chucks
Renishaw Tool Probe, TS13, RMP60
Carriage Can Pass Steady Rests and Tailstock
Tailstock Quill Thrust Compensation
Coolant System for Turning & Milling Operations
Telescoping Steel Way Covers
Full Length Chip Conveyor
Automatic Lubrication System
460 Volt 3-Phase 60 HZ Electrics
