2003 KBT 13 EA 5.1" BAR CNC HORIZONTAL BORING MILL

2003 KBT 13 EA 5.1" BAR CNC HORIZONTAL BORING MILL

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Boring Mills Horizontal Table Type
Manufacturer:
KURAKI
Model:
KBT-13EA
Year:
2003
Stock #:
10136
Status:
For Sale

Description

KURAKI KBT-13EA Boring Mill, 2003 model, used condition. Features include 70.87" x 62.99" table, 26,400 lb capacity, 118.11" X-axis travel. Equipped with FANUC 16IM CNC, 60-tool changer, and chip conveyor. Ideal for precision machining tasks.

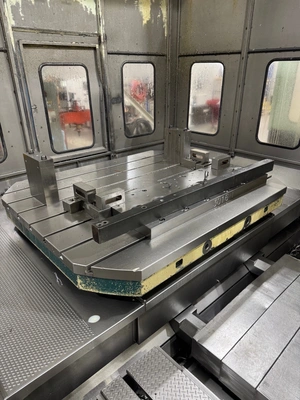

Table Size - L70.87"1,800.1 mm
Table Size - W62.99"1,599.9 mm
Table Capacity26,400 lb11,974.9 kg
Table Indexing.001 Degrees.001 Degrees
Spindle Nose To Table Center27.56" ~ 78.7427.56" ~ 78.74
Spindle Nose To Table Top0 ~ 78.74"0 ~ 78.74"

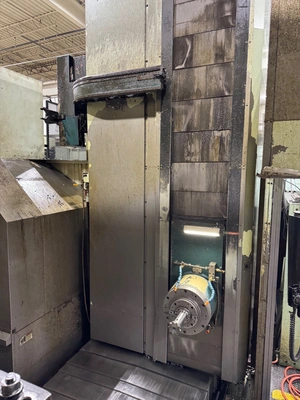

Spindle Diameter5.1"129.54 mm
Spindle Taper#50 CT#50 CT
Spindle Speed4,000 RPM4,000 RPM
Main Motor40 hp29.8 kW
X - Axis Travel118.11"3,000 mm
Y - Axis Travel90.5"2,298.7 mm
Z - Axis Travel51.2"1,300.5 mm
W - Axis Travel25.6"650.24 mm
Automatic Tool Changer Capacity6060
Tool Diameter4.92" / 9.45"4.92" / 9.45"
Max Tool Length23.62"599.95 mm
Max Tool Weight66 lb29.9 kg
Machine Weight81,400 lb36,922.5 kg
ControlCNC (FANUC 16I-M CNC COLOR CONTROL)CNC (FANUC 16I-M CNC COLOR CONTROL)

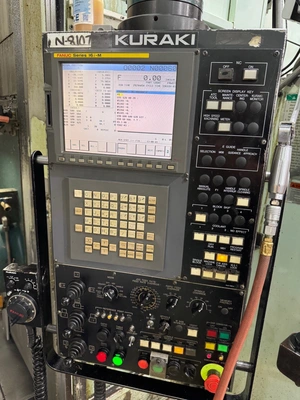

FANUC 16IM CNC CONTROL
.001 4TH AXIS NC CONTOURING ROTARY TABLE, 90 DEGREE BY SHOT PIN
HAND HELD MPG

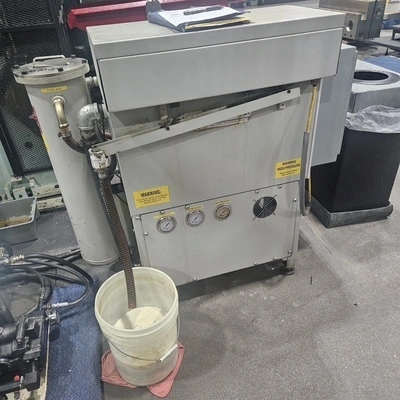

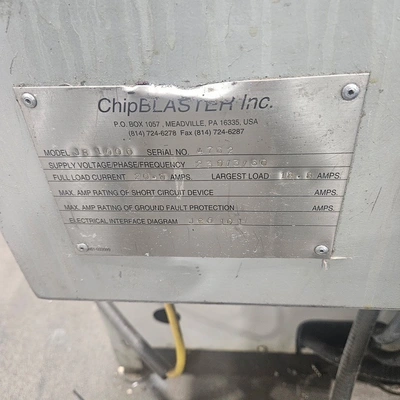

1000 PSI CHIP BLASTER THRU SPINDLE COOLANT

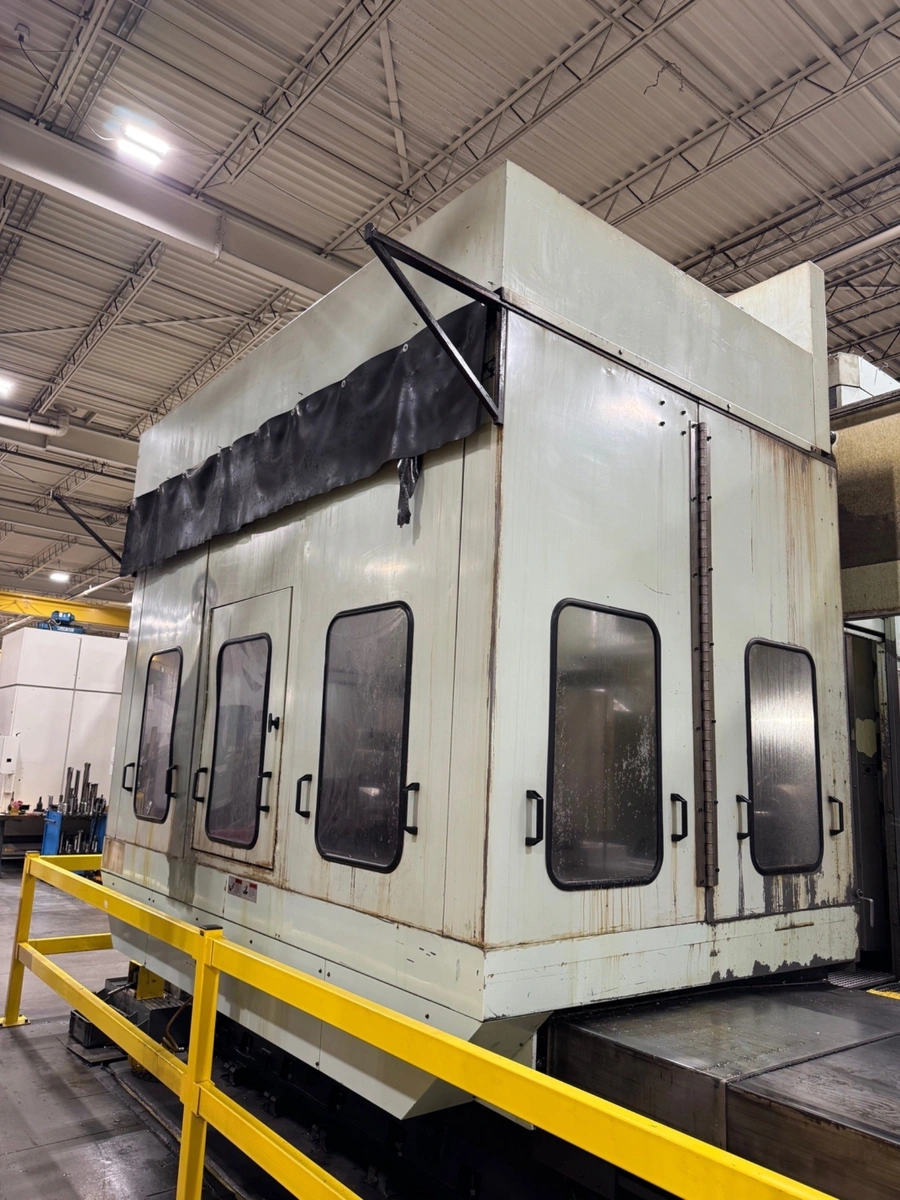

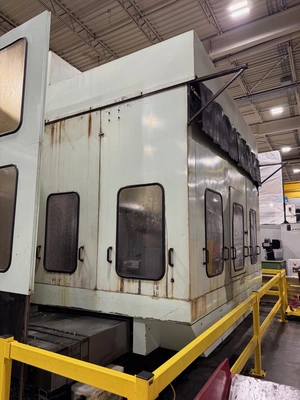

FULL HIGH GAURDING
RIGID TAPPING
CHIP CONVEYOR
